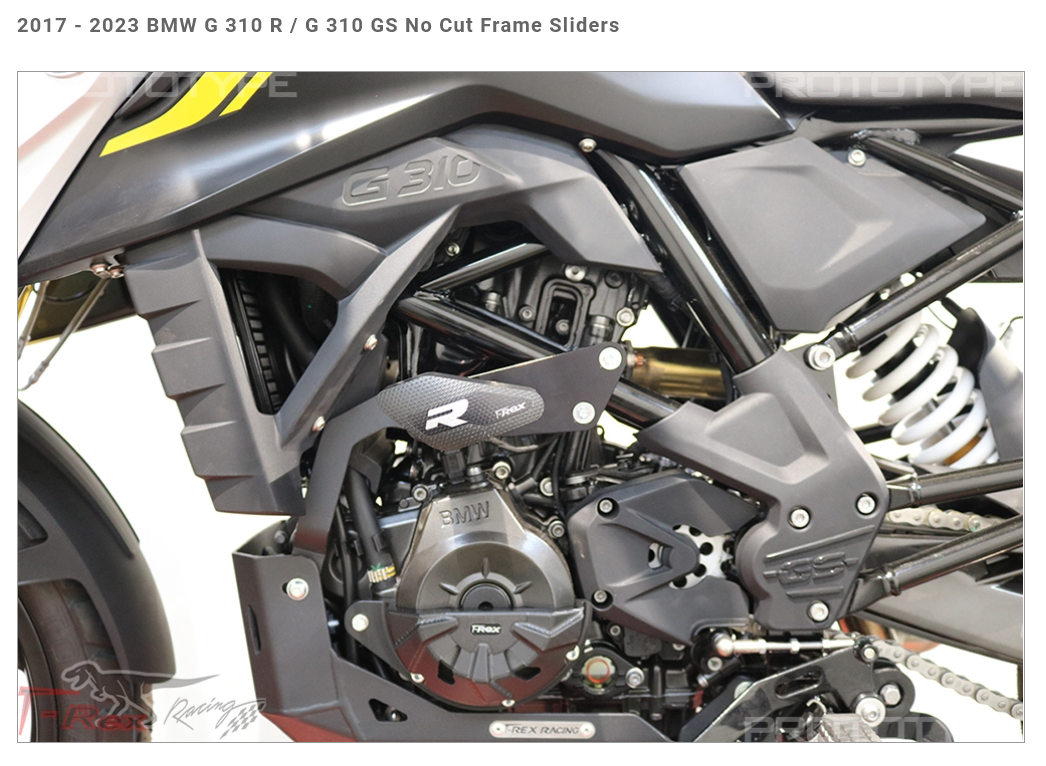

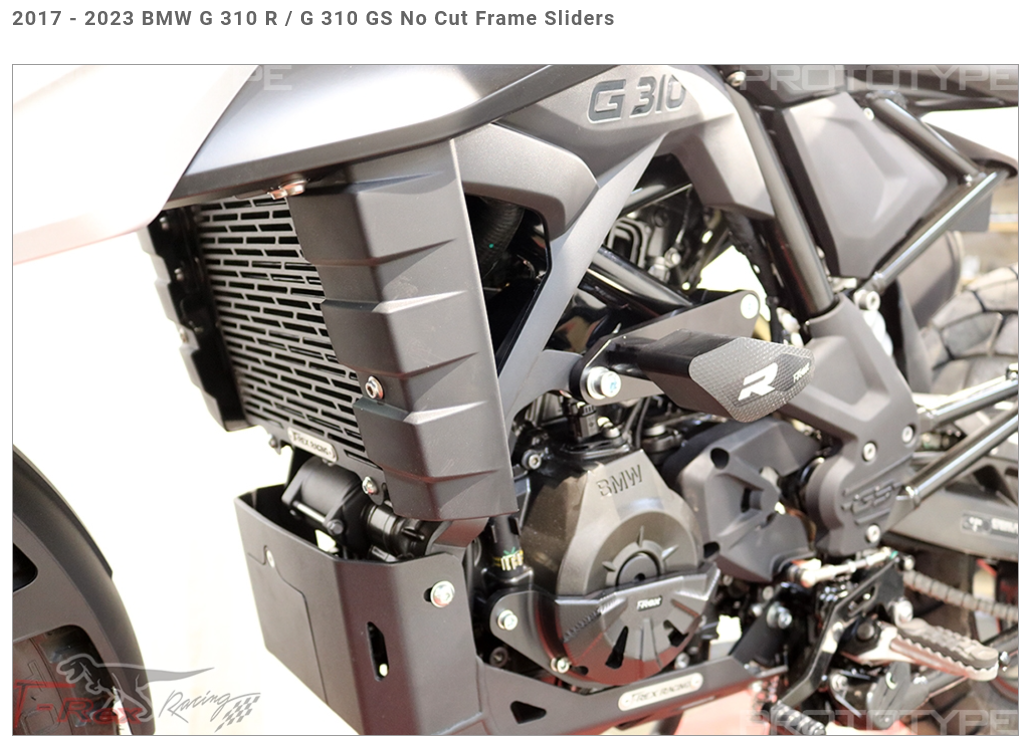

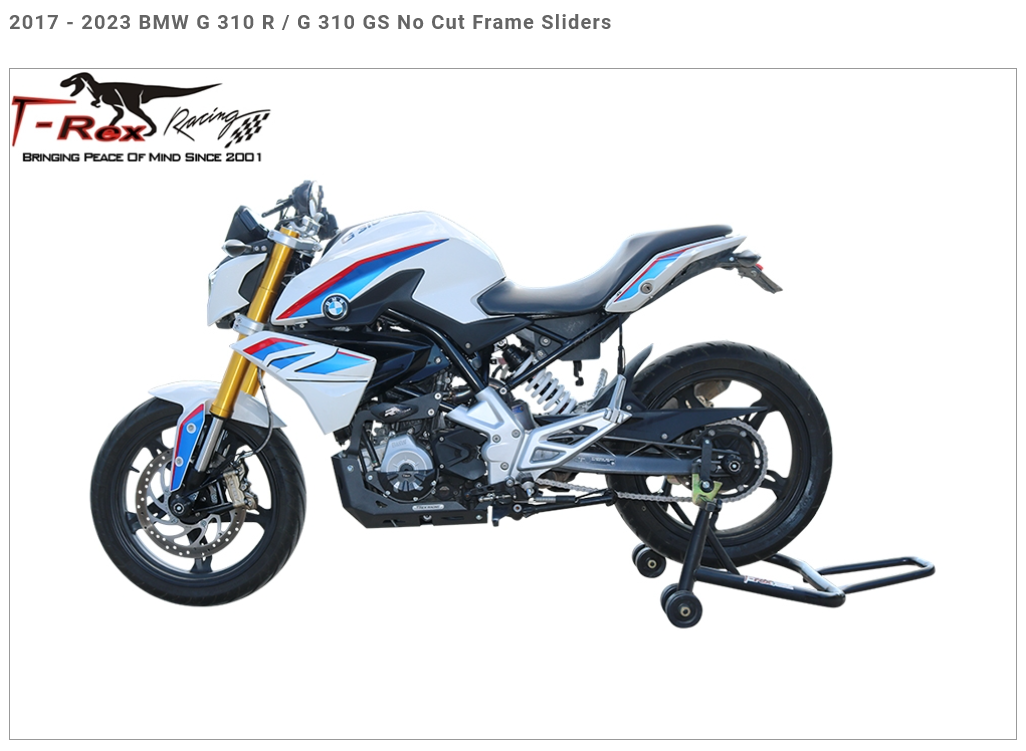

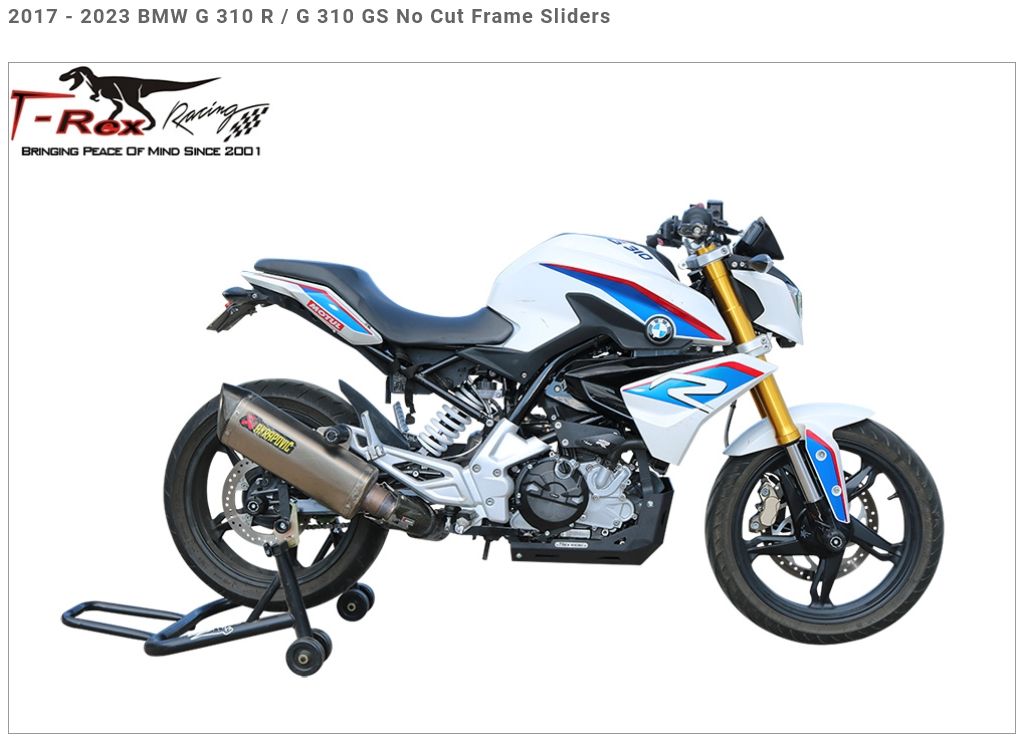

2017 - 2023 BMW G 310 R / G 310 GS No Cut Frame Sliders

please mention color in order commands ; Black , Red or Blue

• Special feature: Brackets are designed NOT to rotate in a lowside, aluminum inserts to prolong puck life
• Material: UHMW-PE (ultra high molecular weight polyethylene), aircraft grade aluminum brackets and inserts
• No Cut or plastic fairing modifications required
• Fit Models: BMW
• 2017 - 2023 G 310 R / G 310 GS
• Fitting Difficulty (1-5): 3 - Average (1 - easy / 5 - Little bit of skill)
• Fitting Time: 30 - 45 minutes

mounting instruction video

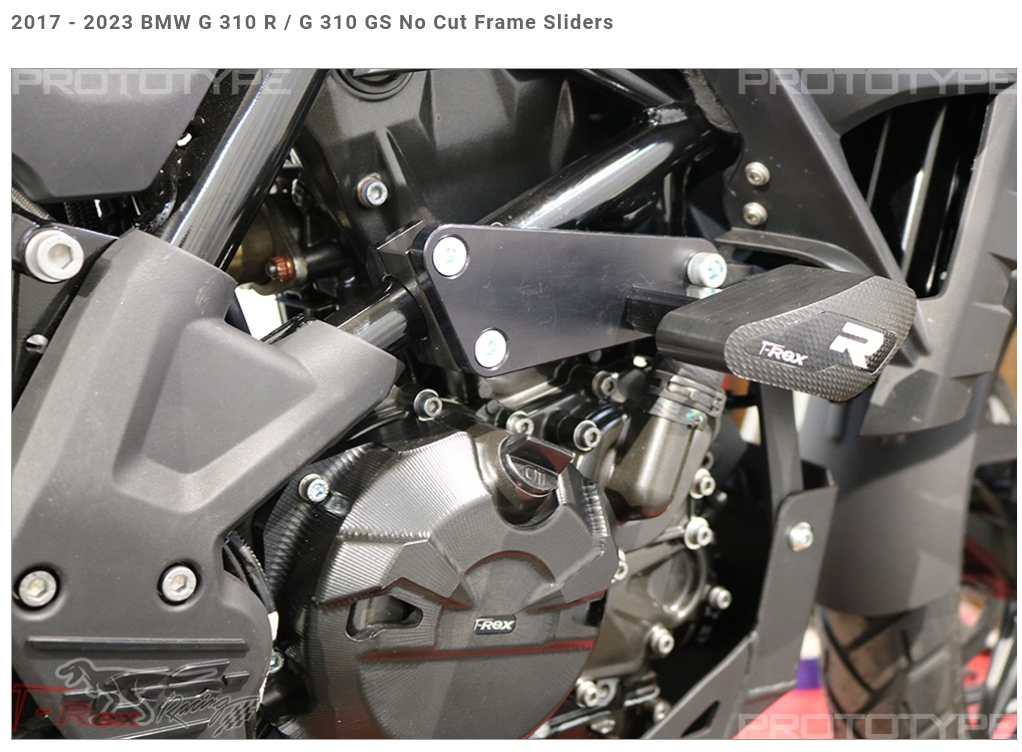

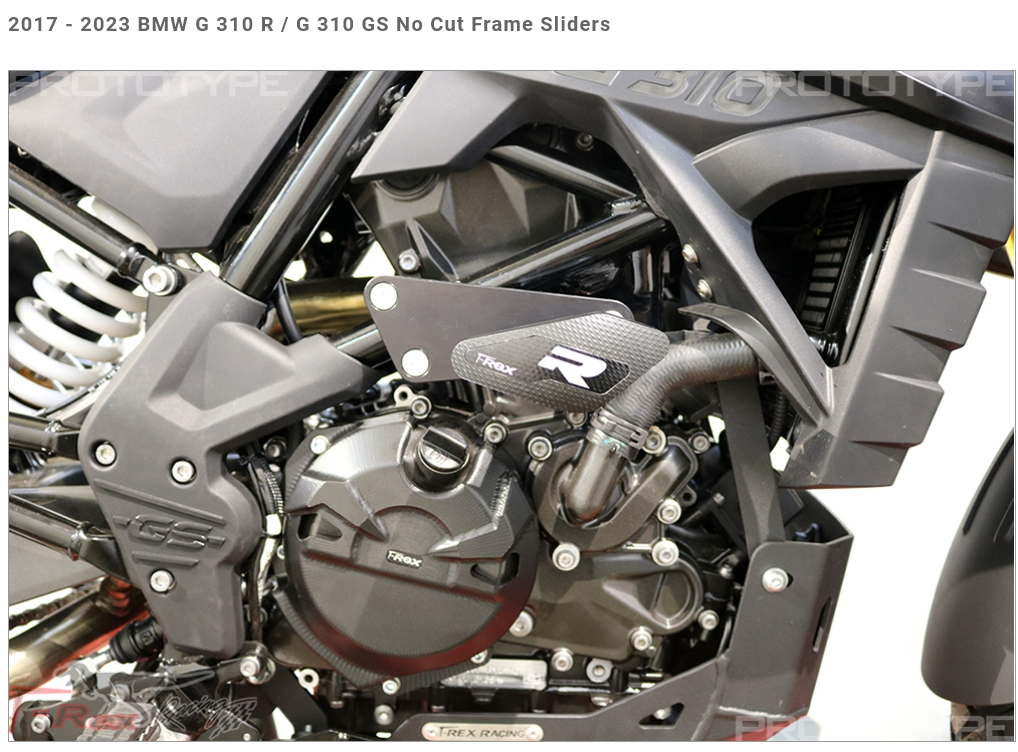

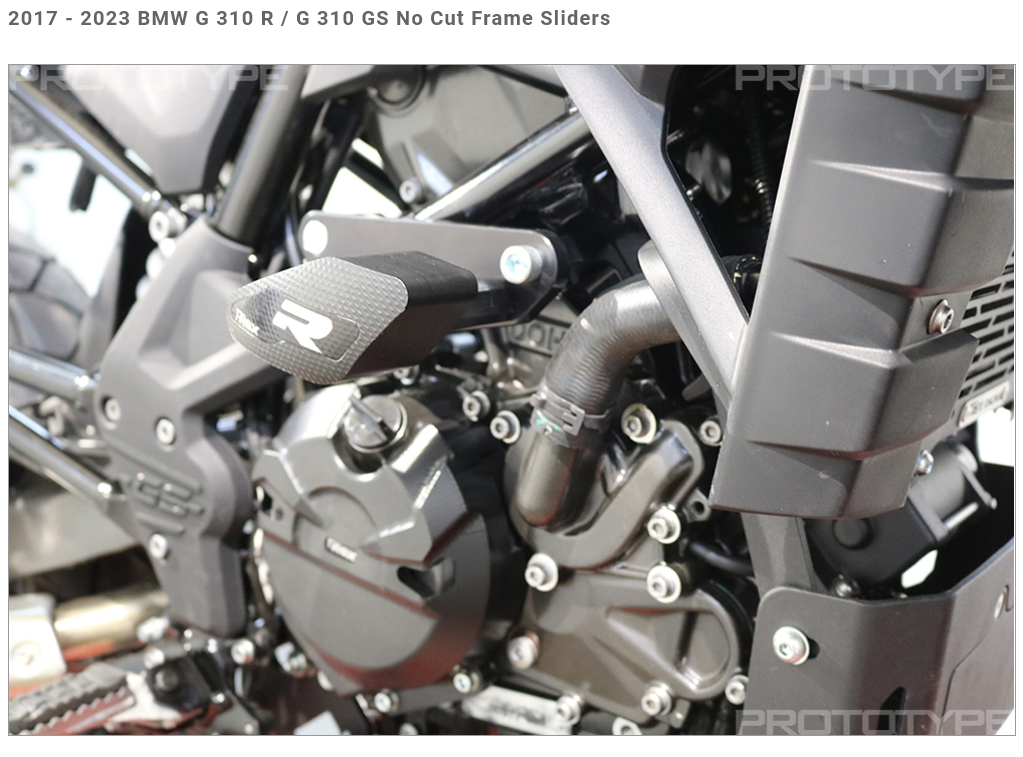

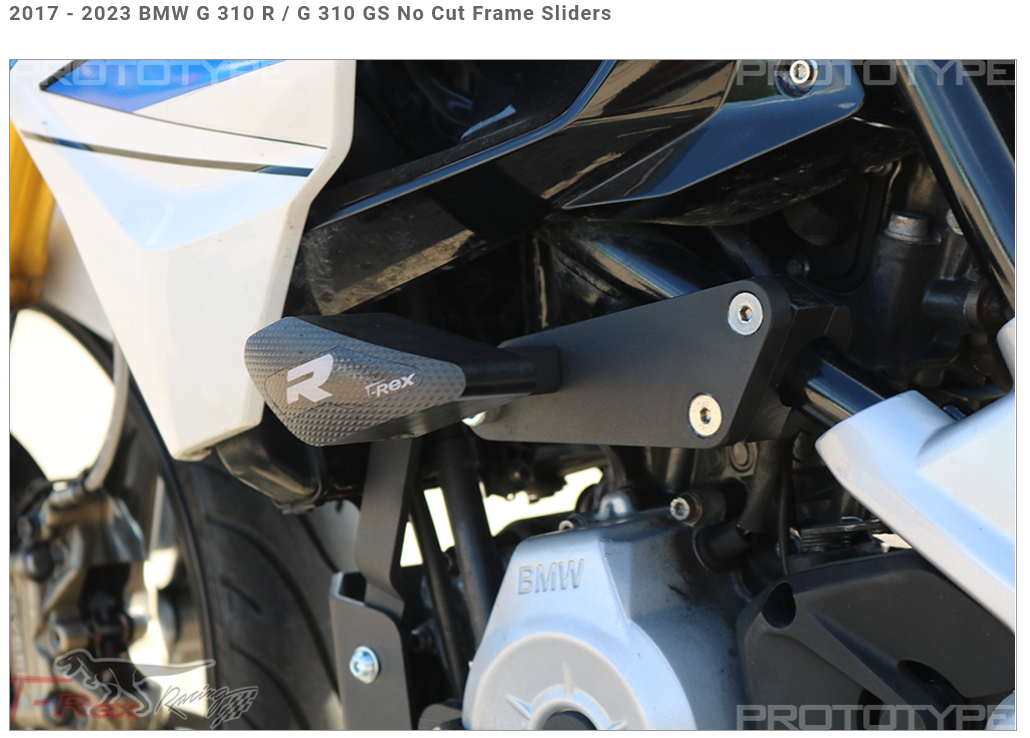

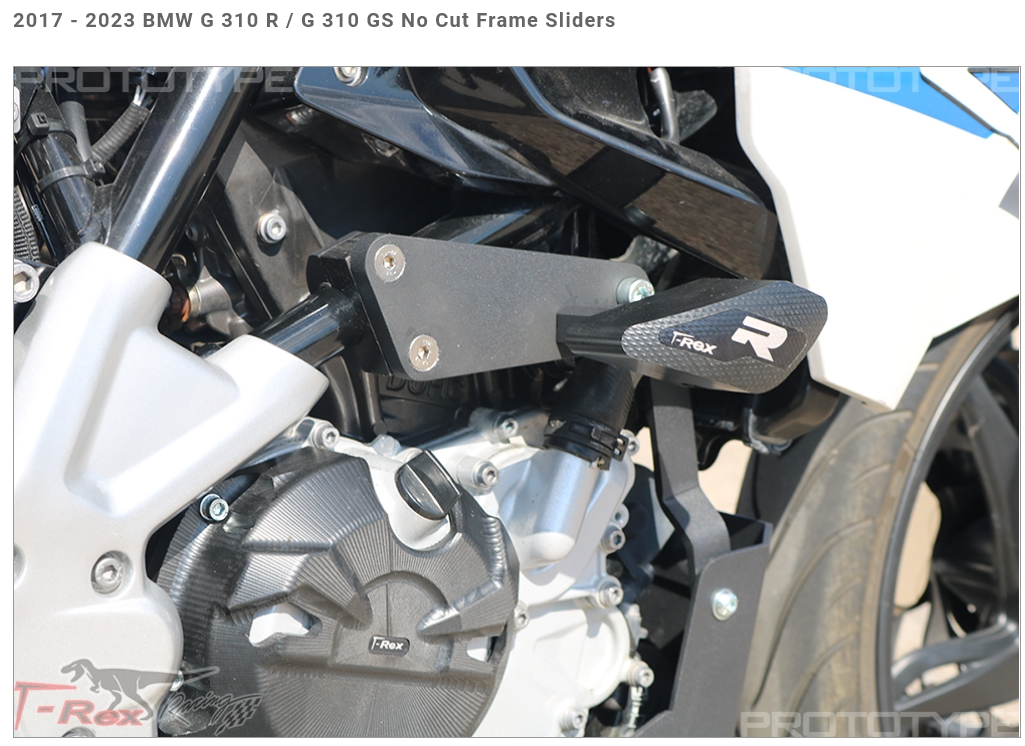

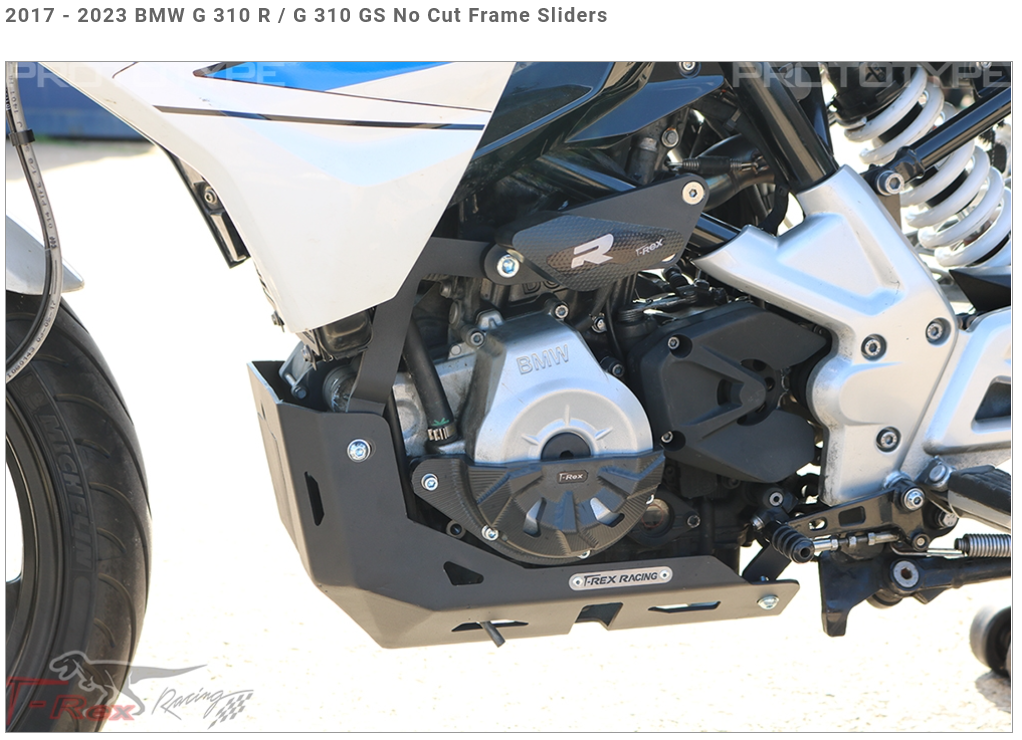

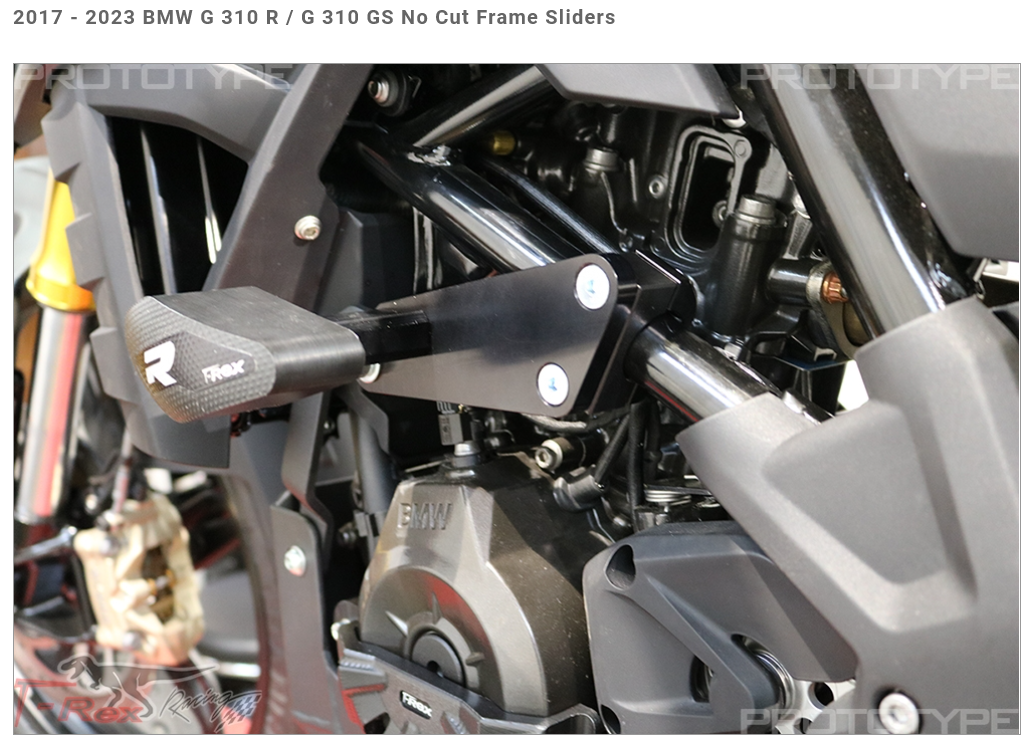

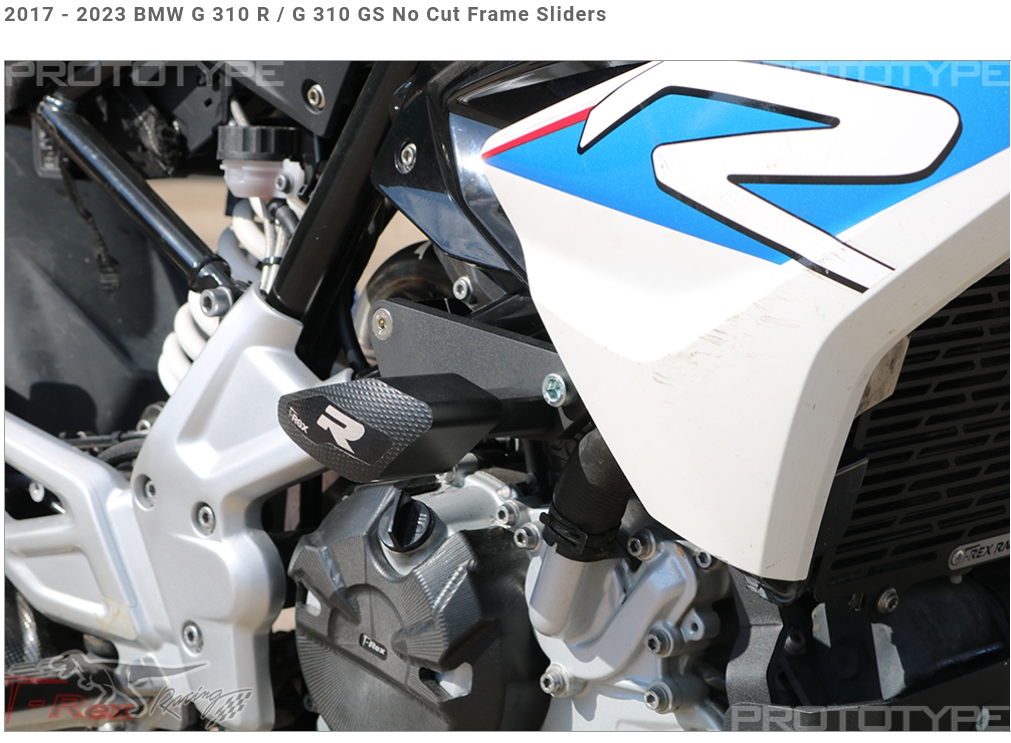

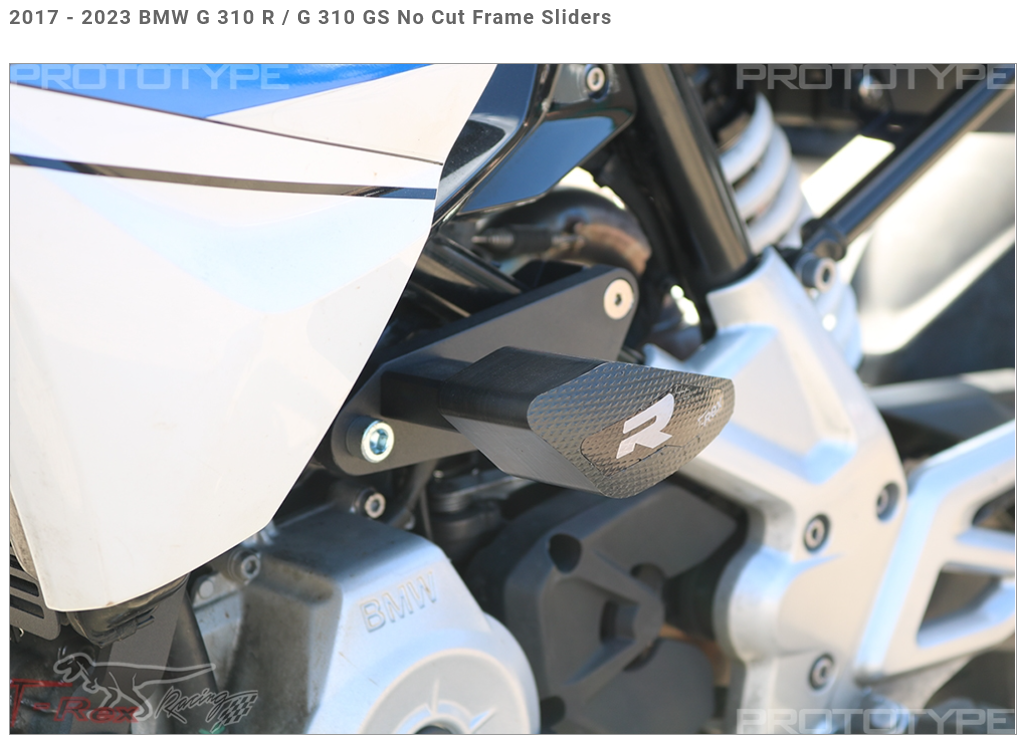

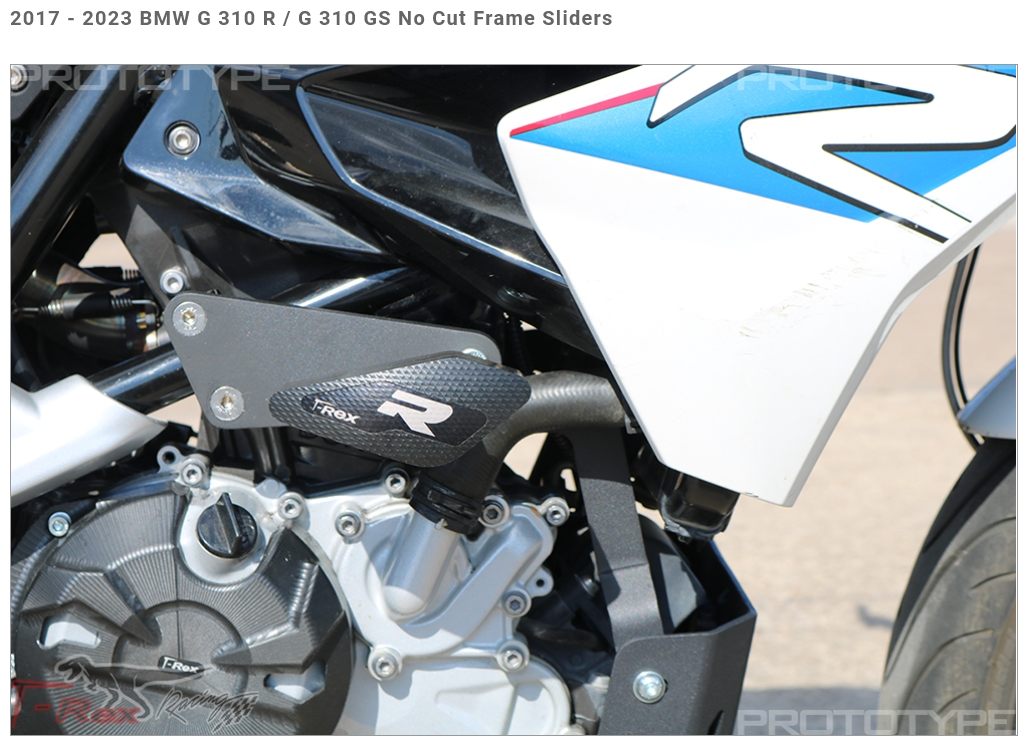

This purchase is for a set of frame sliders for the above bike model. The sliders feature a new design of a complete solid puck without a hollowed-out center. This increases the strength and contact surface to about 30%. The bracket is bolted to the engine mount and the slider puck is bolted onto it. The right side bracket is designed to wrap around the frame preventing it from rotating in the event of a low side. For the left side the frame slider is mounted directly into the frame. The material of the puck is made of UHMW-PE (ultra high molecular weight polyethylene), a tough plastic with good strength, wear resistance and dimensional stability. It is more dimensionally stable than Nylon and used in many industrial ball bearing and friction reducing applications. Compared to Delrin, it is softer but tougher. Delrin is harder but more brittle. It is an ideal material for frame sliders since it can absorb more impact force onto itself and therefore reduce the impact on the frame and engine. The slider pucks can be inexpensively replaced in case of a low-side. We use highest grade commercially available 12.9 (177,000 psi in tensile strength) wherever possible. Rest assured that you are getting the best material
