2008 - 2018 Ducati Diavel Carbon No Cut Frame Front & Rear Axle Sliders
Condition: New
Material: UHMW-PE (ultra high molecular weight polyethylene), aircraft grade aluminum
Special feature: Brackets are designed NOT to rotate in an event of a low side
No cut or plastic fairing modifications required
Fit models: Ducati
2008 - 2018 Diavel Carbon

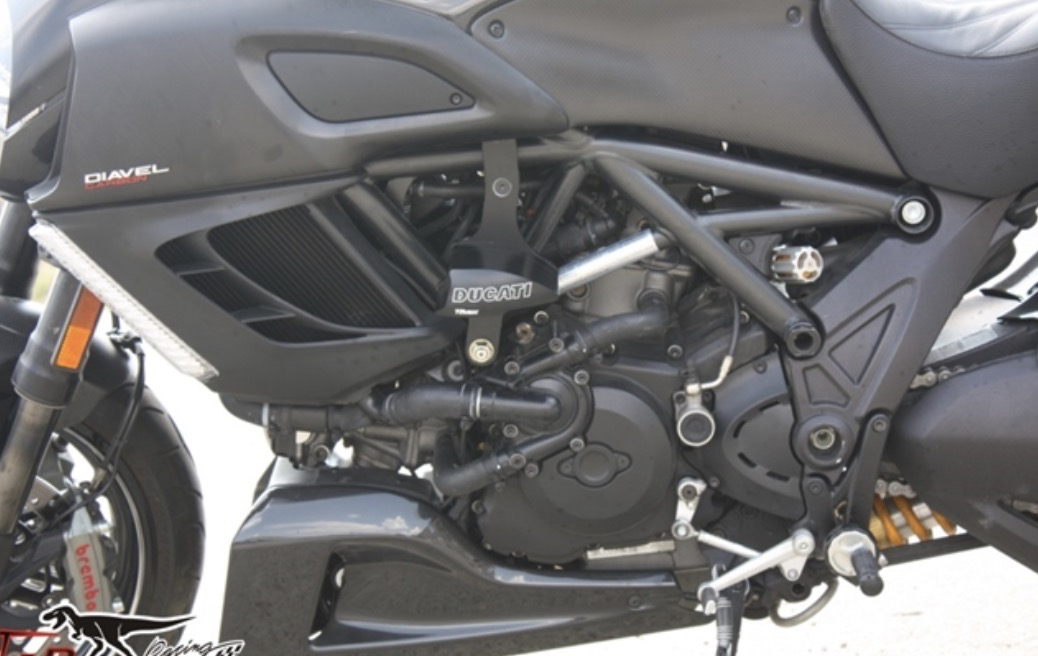

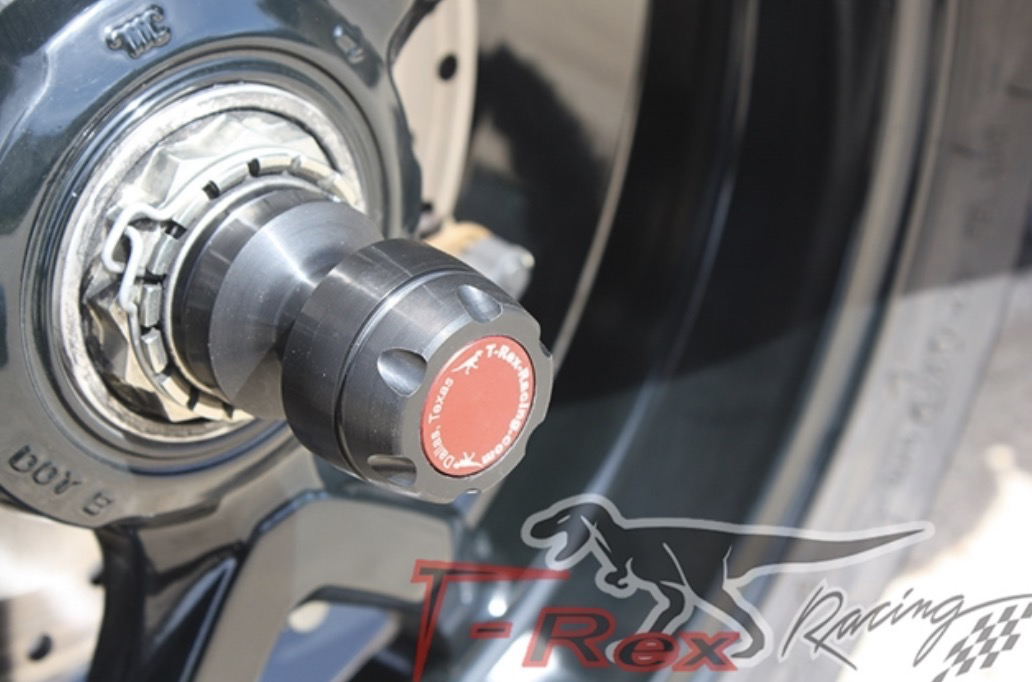

This purchase is for a pair of frame sliders, front axle sliders, and rear axle sliders for the above bike model. The sliders feature a new design of a complete solid puck without a hollowed-out center. This increases the strength and contact surface to about 30%. The bracket is bolted to the engine mount and the slider puck is bolted onto it. The top attachment of both brackets clamp around the tubular frame for maximum strength. The brackets have two attachment points preventing them from rotating in the event of a low side. The material of the puck is made of UHMW-PE (ultra high molecular weight polyethylene), a tough plastic with good strength, wear resistance and dimensional stability. It is more dimensionally stable than Nylon and used in many industrial ball bearing and friction reducing applications. Compared to Delrin, it is softer but tougher. Delrin is harder but more brittle. It is an ideal material for frame sliders since it can absorb more impact force onto itself and therefore reduce the impact on the frame and engine. The slider pucks can be inexpensively replaced in case of a low-side. We use highest grade commercially available 12.9(177,000 psi in tensile strength) wherever possible. Rest assured that you are getting the best material commercially available.
