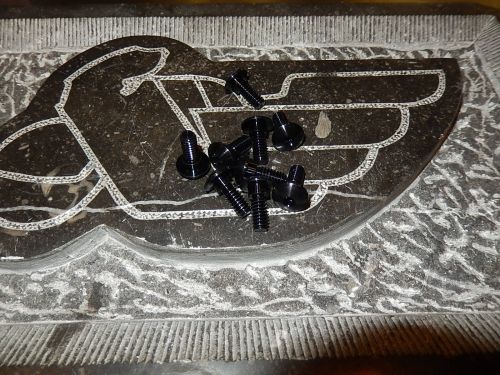

Screw Aluminum 1/4-20 Black Button head with shoulder

For all Buell XB 9/12 body panels mounting.

Sold a piece

Material:
high tensile aluminum 7075
aircraft application
color Black annodiced

Tensile strength:
540 - 600 N/mm²
CNC made JM

Spanner size:
SW 4 ( 5/32 )

tightening TQ max 5,5 NM ( 4 Lbs/ft )

use grease to stopp the bolts from seasing

Head diameter:
14 mm ( 9/16 )

shoulder 7,8 mm x 4 mm

Size ;
1/4 UNC- 0,67 ( 17 mm )

sold a piece
