26-2-15 1125R making it run again Uly service chek

27-2-2015 - Buell XB12X Uly service and check up. Buell 1125R resurection, bike has been left aside last summer , due to a burned stator , no making it ready for the new season.

Uly service and check up, as daily driver the Uly holds up very nice.



Uly service and check up , old drain and filter change.



Uly service and check up , rear wheel out to check the bearings, not really bad, but they are starting to be crunchy, i will replace theme now, as the customer rides allot.



Uly service and check up , road salt... i hate the stuff , brake pads on the hidden rear brake where corroded , and where draging becouse the pads where sticking on the caliper from all the crud and corrosion.



Uly service and check up , fresh rear bearings.



Uly service and check up , belt check, with the new rear pulley mounted last service the ware on the belt is back to normal ( the old pulley was sharp, shortening the belt life )



Uly service and check up a little cleaning, and i coated the sliding surfaces with a little neverseas.



Uly service and check up , checking primary chain tenstion.



Uly service and check up , bike did run on 1 cylinder in wet, spark plug cables did show signs off rubbing, i replace theme.



Uly service and check up right side airscoop brass insert pulled out, i will glue it back in with epox.



Uly service and check up , turn around to check the front end.



Uly service and check up , front brake caliper bolts did turn not ok.



Uly service and check up , as the bike was modified some for all day rideing, most screws where replaced for stainless by the customer, check caliper bolts if you used theme , over time ( 4 years and lots off km ) the screw where not very good anymore, replace theme before you pull out the threads in the caliper , you see the threads ware thin on the end making it sharp.



Uly service and check up , cleaned up the threads in the caliper with a thread chacer 3/8 UNC.



Uly service and check up , front wheel bearings still like new , front wheel back in and thighten the axle, release the tension on the front legs by pushing in the suspention a few times before you tighten the pinch bolts ... test drive time.



1125 resurection, bike has been left aside last summer , due to a burned stator , no making it ready for the new season, customer brought it in from Hamburg , for repair.



1125 resurection, i will remove the HD charging patch cable harness.



1125 resurection , top side stripped.



1125 resurection , upper oil line , clip removed and line turned down to remove the ignition cover.



1125 resurection , crank positioning sensor out.



1125 resurection ,it has been a while.

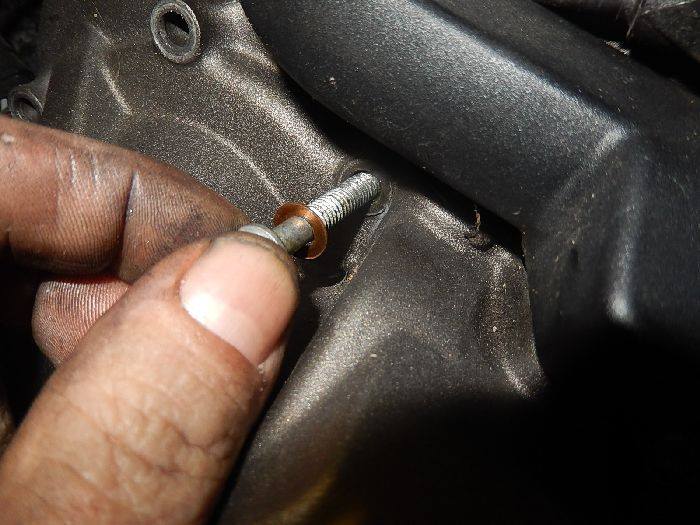

1125 resurection , removing the cover screws, note the copper washer and position off this screw.



1125 resurection, as the bike would not run, i could not test, but the toasted look tells all.



1125 resurection , stator out.



1125 resurection , with the crank locked, also easy to remove the sprag bolts.



1125 resurection , starter clutch and stator off.



1125 resurection , clean the old loctite from the bolts.



1125 resurection , and clean the loctite from the holes , lube the sprag clutch with starter lube ( or engine oil before you put it back in after cleangin )



1125 resurection , line up the holes , stator with oil jet modification is going back on.



1125 resurection , adn thighten.



1125 resurection , gasket on and a little starter lube on the sliding parts.
