20-3-2019 1125 Fuel pump M2 Cylinders

21-1-2020 - What did we do today 20-3-2019 Buell 1125R fuel pump replacement, Buell M2 cylinders mounting

the 1125 with fuel pump problem, https://www.facebook.com/TwinMotorcyclesNL/videos/2259199034103390/ we have a go for repair — at Twin Motorcycles Buell Support forever.

first need to pump out the fuel out he tank , drain hose mounted to the fuel line — at Twin Motorcycles Buell Support forever.

and with favorite diagnostics tool perform fuel pump test to pump it empty — at Twin Motorcycles Buell Support forever.

i will not jack under this exhaust. — at Twin Motorcycles Buell Support forever.

so this needs to come of — at Twin Motorcycles Buell Support forever.

intersesting design. resonator chamber and katalistic converter — at Twin Motorcycles Buell Support forever.

take of the rear brake master — at Twin Motorcycles Buell Support forever.

swing arm axle pinch bolt loose — at Twin Motorcycles Buell Support forever.

losen the brake caliper bolts — at Twin Motorcycles Buell Support forever.

axle pinch bolt loose metric bolt size 10 — at Twin Motorcycles Buell Support forever.

wheel bearing check.. these will do — at Twin Motorcycles Buell Support forever.

losening the rear brake line — at Twin Motorcycles Buell Support forever.

the bottom line holder — at Twin Motorcycles Buell Support forever.

swing arm axle loose — at Twin Motorcycles Buell Support forever.

and shock mounting bolt loose to take out the swing arm — at Twin Motorcycles Buell Support forever.

loseing the ground point , loosen the nut — at Twin Motorcycles Buell Support forever.

you need to srew out the stud to remove the ground cable — at Twin Motorcycles Buell Support forever.

some one has done some fideling to this pump before.. i think they replaced the pump it self .. no fix for the wire connection throught the base plate problem — at Twin Motorcycles Buell Support forever.

big ass c-clip pliers — at Twin Motorcycles Buell Support forever.

these pumps can be hard to pull out — at Twin Motorcycles Buell Support forever.

old pump ( back gound ) compaired to new one in front... yes the pump it self has been replaced

positioning slot in the frame

and on the pump.. put some mounting grease on the orings

gentle tapping the fuel pump in , and put the c-clip back on — at Twin Motorcycles Buell Support forever.

wire harnes and ground cable in place

swing arm on

and brake master on

mounting back the wheel. the axle stopped turning.. dhamm .. threads are galling in the swing arm

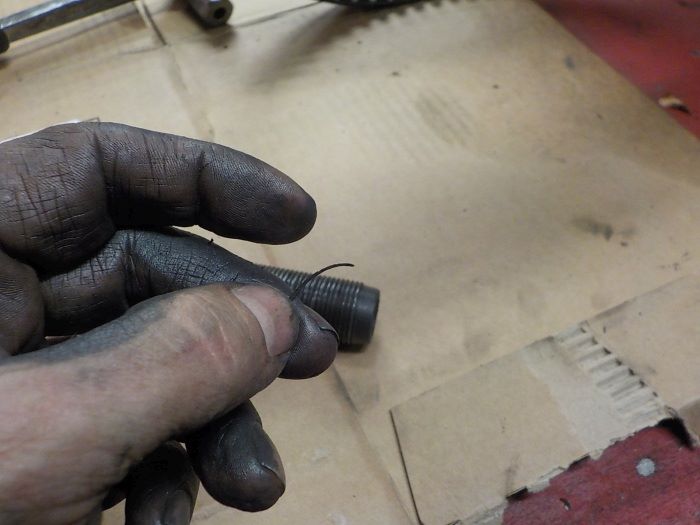

cleaning up and trying.. i realy need to buy a tap for these ..

1 hour further . axle turns again fully in :-(

so wheel back in

exhaust back on..

and changing the fuel line with sensor

as the injector holders are also fragile , best to take theme of when removing the fuel line

push forward, press the tabs and pull... works better with pliers

the new full metal sensor housing and fuel line connector , compaired to the plastics one ( very fragile , bad for fuel line )

contact... check..

and running.. nice and steady as it should

closing up the airbox and covers

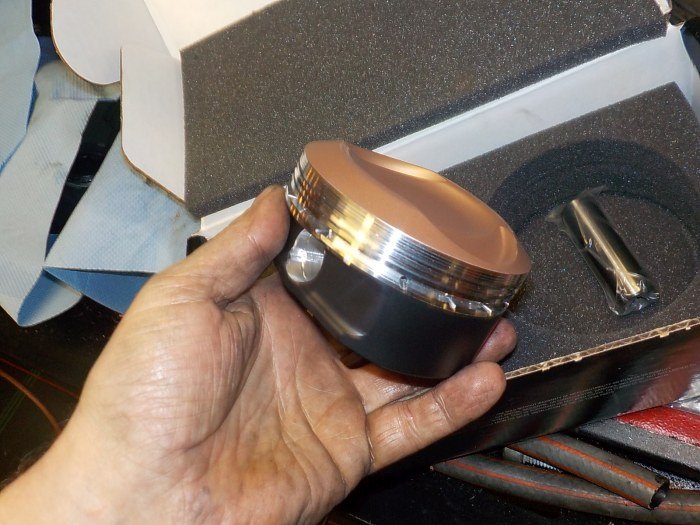

nice coated piston tops

nice pistons after all

and big ass cylinders.. nice ones

as usualy check .... these are to tight so setting the piston ring caps

ready to go on the bike

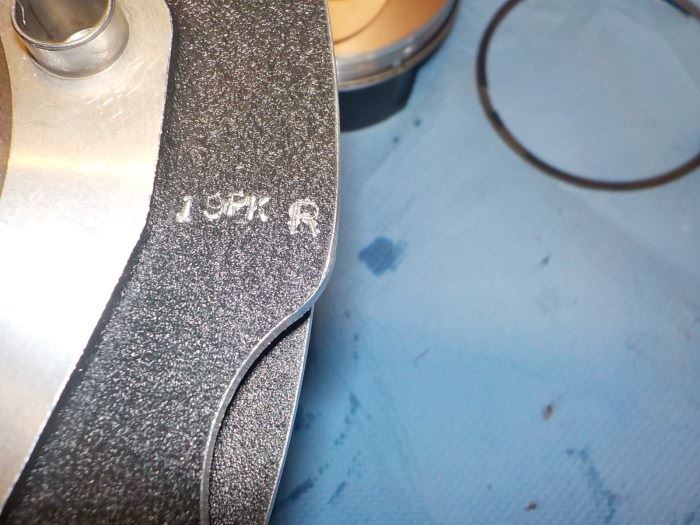

these cylinder have a rear and front

as the sleeves are cut so they do not tough each other

other piston down the barrel

prepping the base gasket.. needs a sliver cut of to clear the pushrod cover base plates .. as there is very little gasket material..a little help from some sealer gasket

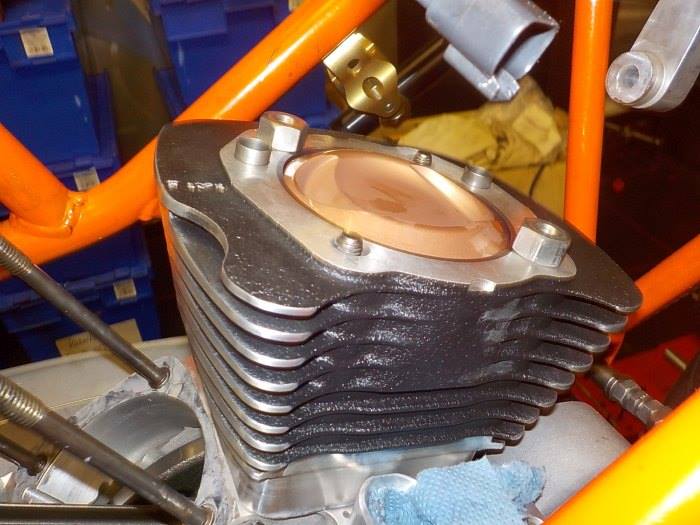

front one on and mounted with hold down nuts

putting the c-clips in

i expect to fitment troubles , but with bought cylinders mounted.. rear wheel up and in 5e gear to turn the crank to see if the pistons clear each other

head gaskets on

and front head on

nice big surface on these cylinders.. and pockets milled for the cometic head gasket rivets .. nice

tq down the heads

pushrod covers on.. these are one of few the o-ring is best put on the cover ad push in the head

spring loaded.. big flat screw driver to mount the spacers

nice .. markings made to lenght

the roller rockers on

and mounting the intake

top bracket back on

and mounting the stenzel stutte

bracket in place

carb on

and mounting the headers.. leave the nuts a little loose

frist line up the muffler and brackets

coil back in

steering damper

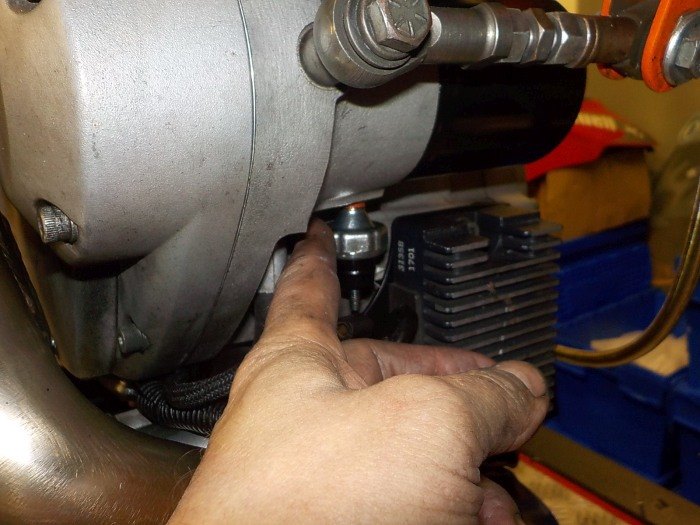

contact.. ok first oil pressure switch

common these will not work after some time

now we can see if there is oil pressure
