25-1-2019 Buell XB9Sx last things

10-9-2019 - What did we do today 25-1-2019 Buell XB9Sx last things

still needed to change the front end — at Twin Motorcycles Buell Support forever.



profile is enough.. but looks like a cake layer and old rubber — at Twin Motorcycles Buell Support forever.



caliper of — at Twin Motorcycles Buell Support forever.



looks like a layer is also on the wheels — at Twin Motorcycles Buell Support forever.





anyway rusted disk of

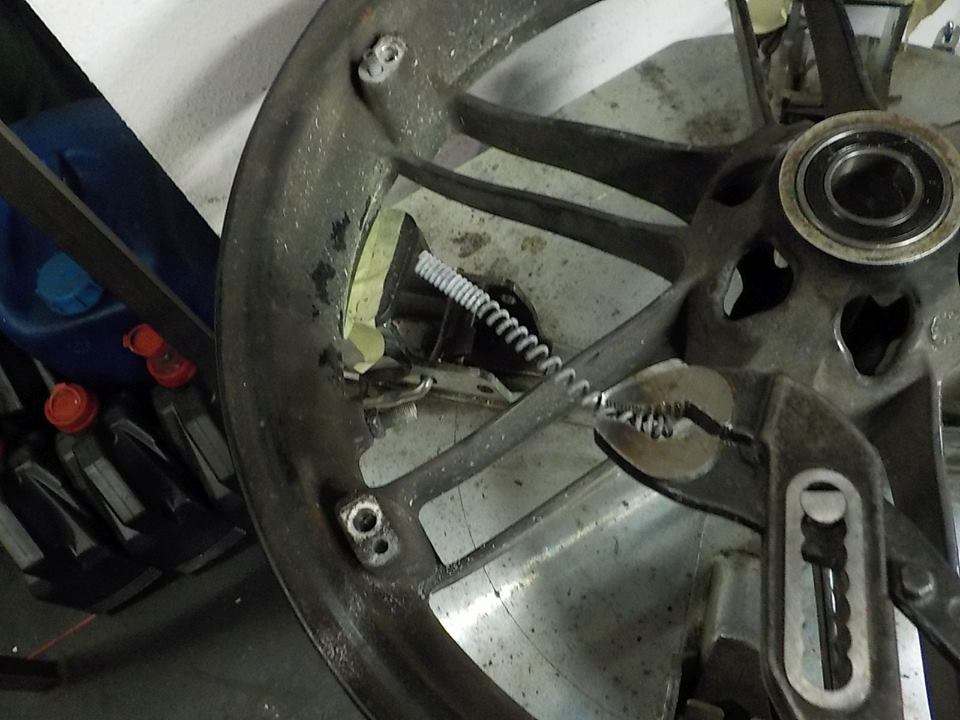

off course some springs are corroded tight





if they don't break you can pul theme out,





if they break ( these are brittle ) smal tq key and turn the key so the spring becomes smaller and pull it out





clean the holese some , and some high temp grease on the new springs , the ones we sell are stainless, but the inside of the holes can need some protection





loctite and tighen to 35 NM





new tyre on and balance





old pad are not gone.. only corroded





not smart to use these

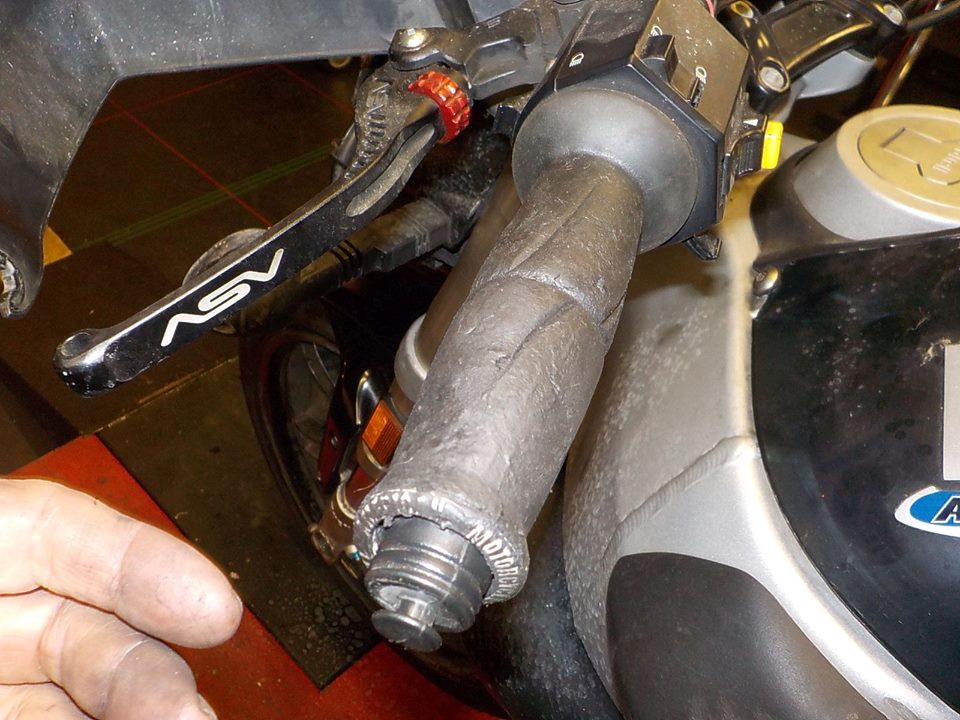

the grips are also worn and funcky

these rizoma grips are very nice ( personal opinion ) and they come close to the old traction grips shape )

the funcky grip... the one time i feel the need to use latex gloves

better :-)

belt and front pully change

as the old front puully is worn out

costmetic cover of

the teeth have worn sharp.. belts do not have a long life with sharp pulleys

as noted on the belt ,

swingarm brace out

new front pully

new belt on now first the swing arm brace back in

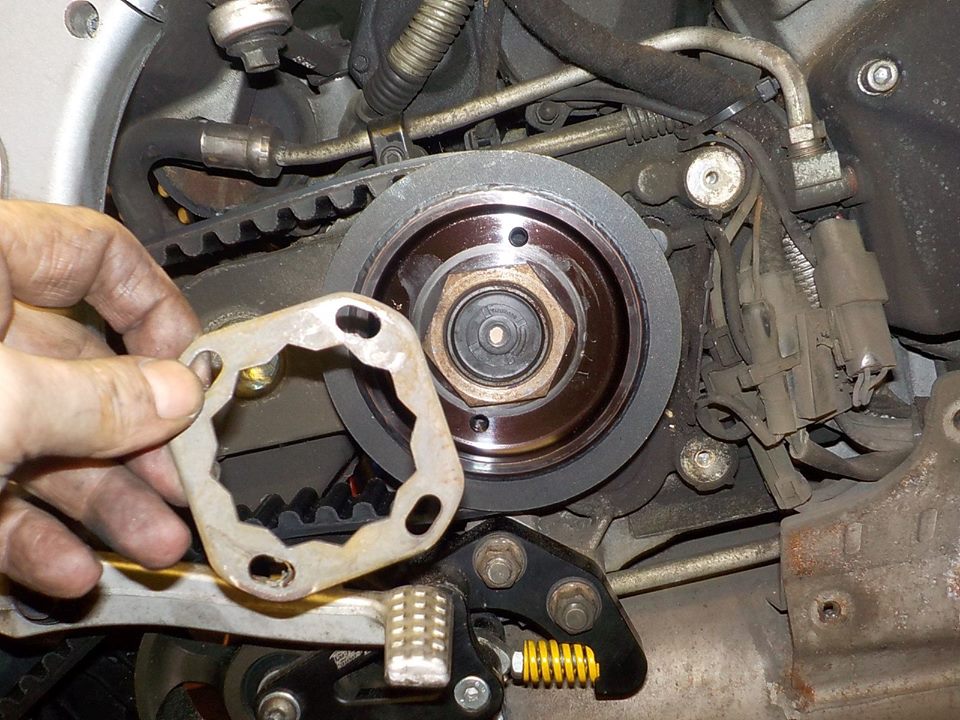

lock plate

our nice design pully :-)

our nice design pully :-)

little bolt cleaning is needed

mnnn ok cover douse not fit fully

the pully is 90 mm , so need to take a hair of the cover

skimmed on the late a little

and covers mounted

old battery replacement

new battery in

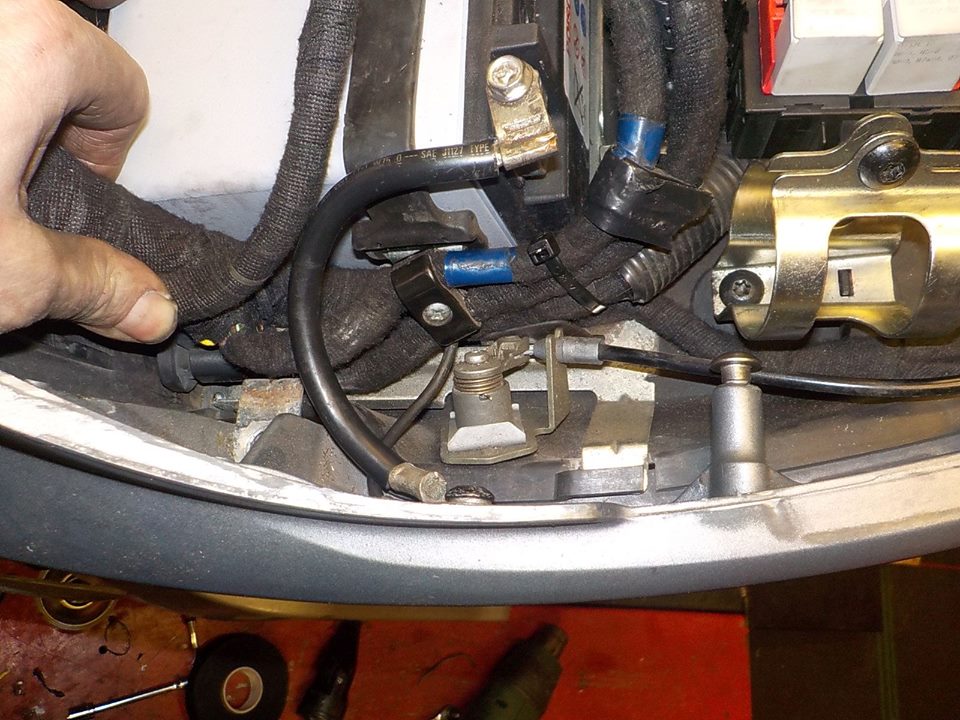

dyno loop wire is in a problem place

if this sits below the wire loom on the battery tray the rubbing can cause this to short out.. popping fuses or coil in a bad case

but no power.. mnnn my co worker cut the tracker box out.. looks like it was a little more than tracker only

as there is no battery power on board

the feed to the fuse box is cut

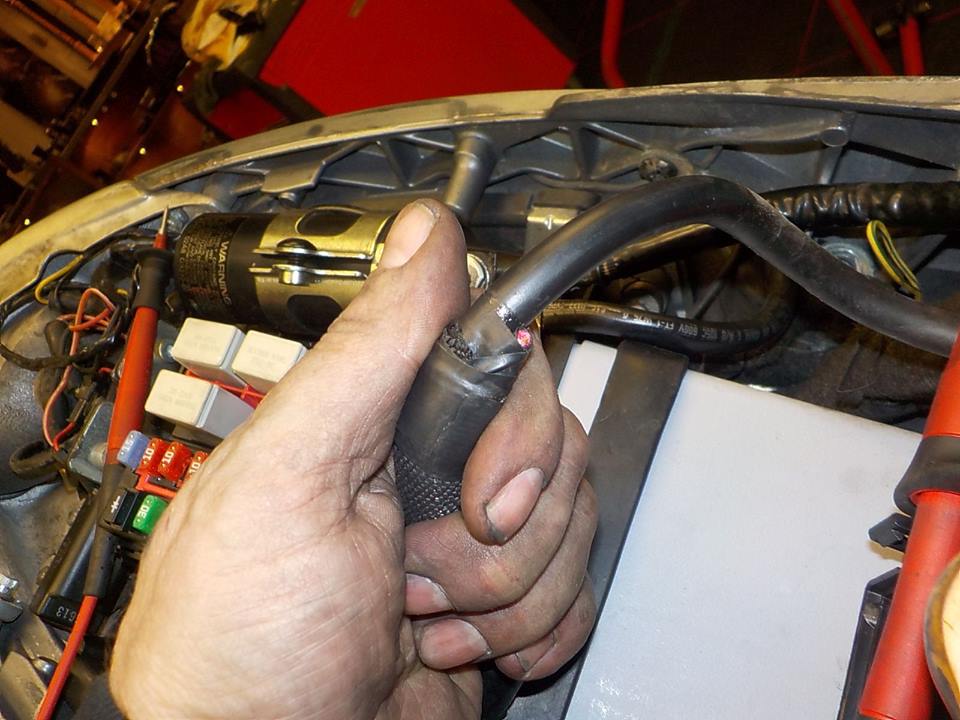

opening up the wire harness to repair

using solder with crimpseals , these work very good

using solder with crimpseals , these work very good

hehe.. we have power

now routing it all nice

headlight bulb was also out

best to remove the complete unit

check

but the pilot light was also out

but the pilot light was also out

sorry state of a very nice seat

looks like this bike will clean up allot with a good wash and clean
