14-12-2018 XB12SS belt, XB front mount EBR 1190RX

4-6-2019 - What did we do today: 14-12-2018 Buell XB12SS belt, Buell XB front mount, EBR 1190 RX building

trailered in by road service..

wear ?

or stone chip

naah this is wear , need to look up . but think this is still the first belt

a look around the bike.. been a long time since it was in.. missing some pieces , exhaust clamp is corroded away

from this side still looks ok .. but nothing to hold —

anyway for the belt, axle pinch bolt loose, and axle loose

checking front pully on wear with 60000 km needs some inspection

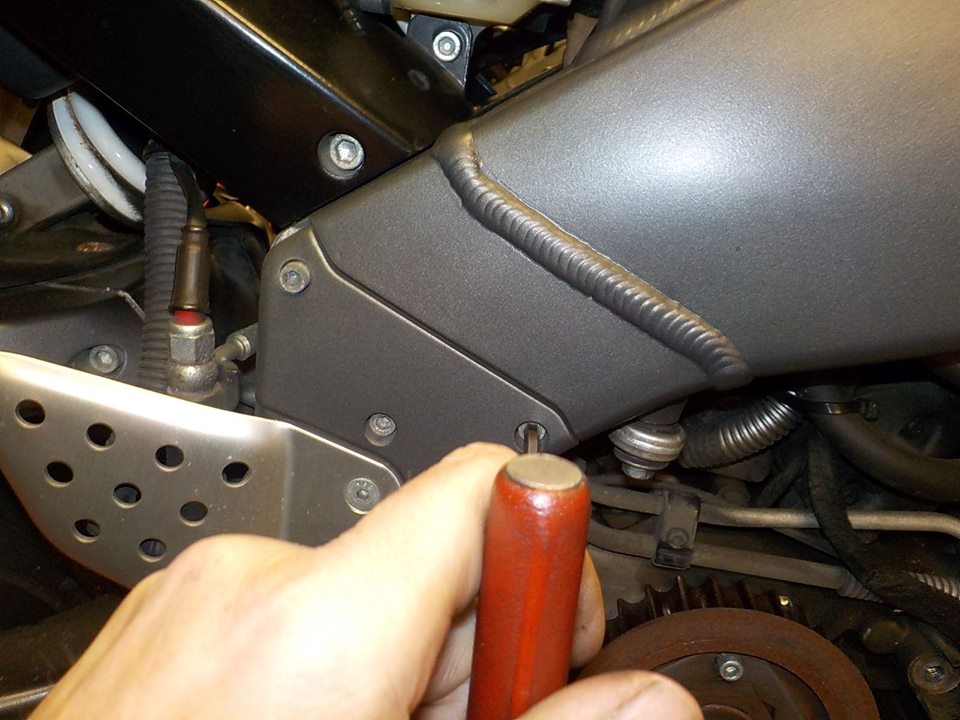

footpeg right side loose

axle out

and swingarm brace loose

always check the wheel bearings !!! , these needed replacement

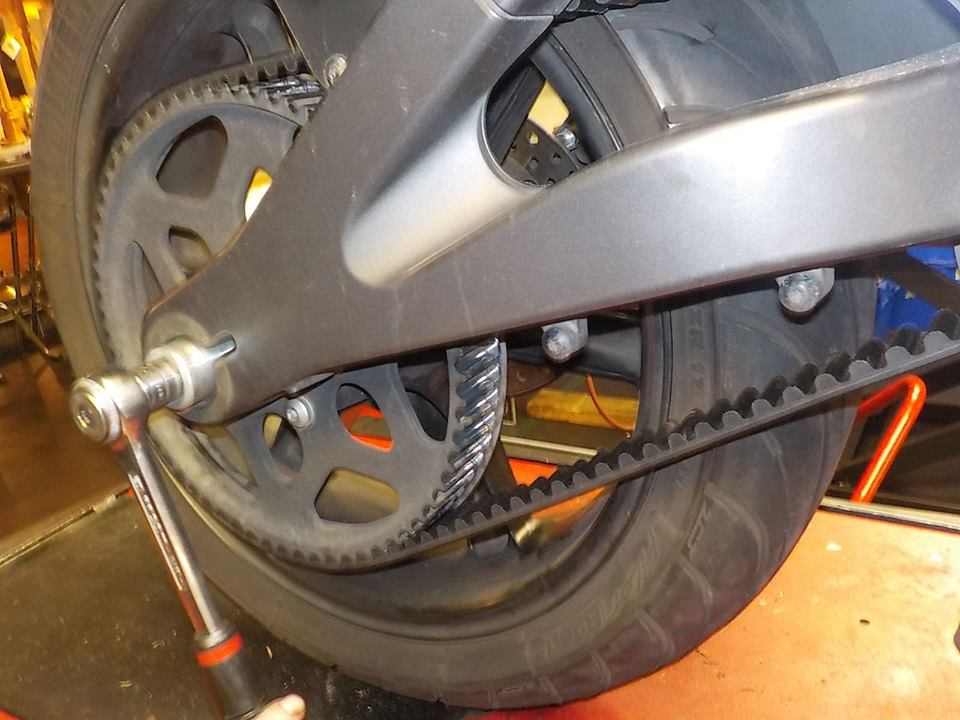

new belt on

new bearings in the wheel , swing arm brace on.. and tighten the axle

front strap old

will mount a stainless steel one

front connection is better now

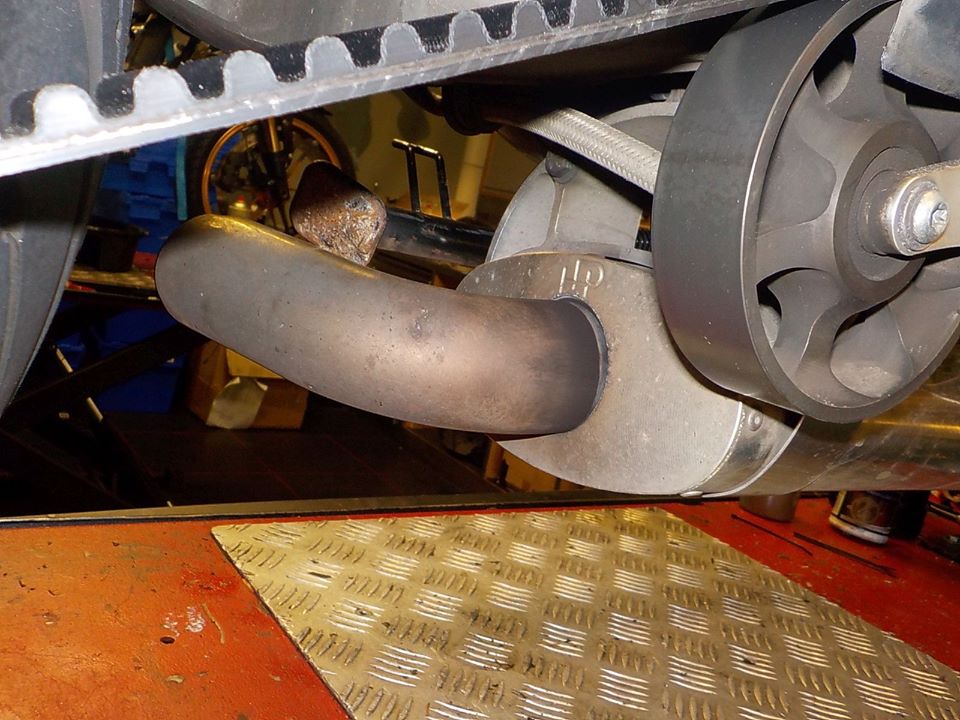

this was a uniek option with these exhaust... right side

or left side

or middle off course :-)

front mount broken

front mount broken

rubber is gone

clutch cable bracket of

and old mounting bolt off

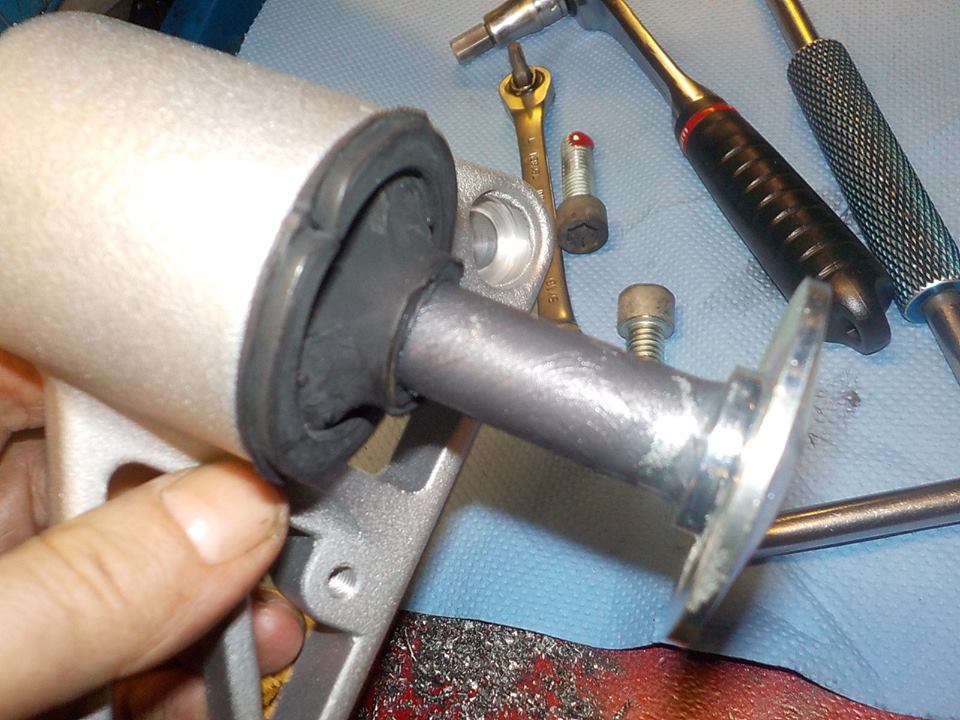

the metal insert is loose in the rubber. making noise when engine braking

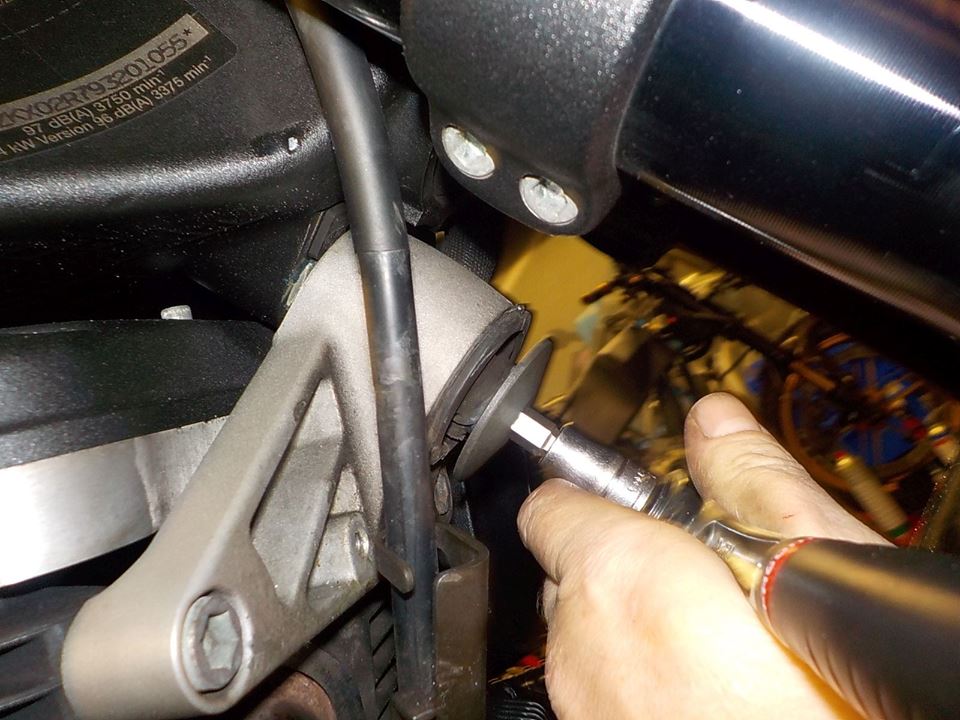

new mount.. red loctite on the head bolts

neverseas on the mounting bolt

66 nm on the all 3 bolts , and she is ready

ebr.. airbox cover on

and left fairing piece / mirror

the glued coolant reservoir is good, feels good , had my doughts as this is hard material to glue

right side fairing

customer asked for double bubble screen , putting the well nuts in

and mounting the screen

new indicators rear

these are rear / brake and indicator

so need some electricati to check.

battery in

and pulling trought the indicator wires —

testing

passenger seat strap on

seat lock and fuse box bracket

and passenger seat on

every time i surprice my self... freaking heavy piece of metal

best to remove the side astand to mount the original exhaust

slided on

temperary exhaust holding tool

right foot peg bracket on

and mounting the exhaust bolts

the new tips ready to be mounted
