13-12-2018 Assembling EBR 1190 RX

4-6-2019 - What did we do today 13-12-2018 Assembling EBR 1190 RX

finaly up to the job.. been a while ( and waiting on the parts ) rear header needed to be removed — atTwin Motorcycles Buell Support forever.

just for the heat shield replacement.. these bikes are fun...

frame loose and lifter a little — at Twin Motorcycles Buell Support forever.

to get twist the header in and tightening the nuts — at Twin Motorcycles Buell Support forever.

O2 sensor back in — at Twin Motorcycles Buell Support forever.

rear shock bolt mounted again — at Twin Motorcycles Buell Support forever.

cable harness / cable tie in the way to rotate the engine up — at Twin Motorcycles Buell Support forever.

cut it and placed a new one . more out the way of the mounting boss — at Twin Motorcycles Buell Support forever.

engine bolts in — at Twin Motorcycles Buell Support forever.

and front ones — at Twin Motorcycles Buell Support forever.

tighten the left side first ( fixed mounting points ) — at Twin Motorcycles Buell Support forever.

front wheel back in — at Twin Motorcycles Buell Support forever.

big ass axle same size as XB rear — at Twin Motorcycles Buell Support forever.

end and ods .. coolant tank tab is off , i will try to glue it — at Twin Motorcycles Buell Support forever.

radiators back on — at Twin Motorcycles Buell Support forever.

and oil cooler on — at Twin Motorcycles Buell Support forever.

i wait with the side plates — at Twin Motorcycles Buell Support forever.

was tired waiting on parts.. made my own fan cowl spacer / mounting — at Twin Motorcycles Buell Support forever.

stainless steel instead off aluminium — at Twin Motorcycles Buell Support forever.

bugger.. still a little novis with these bikes... before the wheel went in the air duct needs to go in fist — at Twin Motorcycles Buell Support forever.

much better formed than the 1125 duct — at Twin Motorcycles Buell Support forever.

so front wheel back in... notice the spacer right side in the wheel ! — at Twin Motorcycles Buell Support forever.

cooling ducts on — at Twin Motorcycles Buell Support forever.

air guide plate on — at Twin Motorcycles Buell Support forever.

and stone grill over the radiators — at Twin Motorcycles Buell Support forever.

left side duct — at Twin Motorcycles Buell Support forever.

and new brake air ducts — at Twin Motorcycles Buell Support forever.

so... something needs to go in here — at Twin Motorcycles Buell Support forever.

throttle cables routed in the airbox with a gater — atTwin Motorcycles Buell Support forever.

airbox on.. — at Twin Motorcycles Buell Support forever.

pulling the breather / vacuum hose in place and mount the breahter cap — at Twin Motorcycles Buell Support forever.

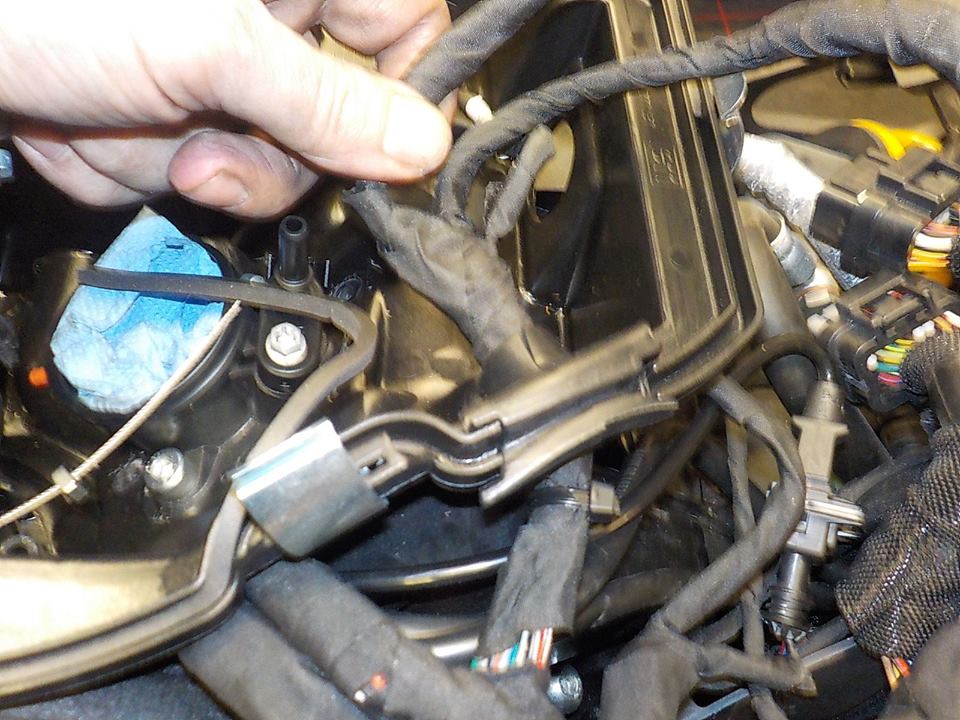

loosen the foam strip to mount the wire loom — atTwin Motorcycles Buell Support forever.

come with its own gater — at Twin Motorcycles Buell Support forever.

fuel line feed in with rubber — at Twin Motorcycles Buell Support forever.

injectors plugs , there are 4 off theme all marked — at Twin Motorcycles Buell Support forever.

nice.. where was this when we where racing in 2008— at Twin Motorcycles Buell Support forever.

throttle cables mounted — at Twin Motorcycles Buell Support forever.

vacuum hose mounted rear manifold — at Twin Motorcycles Buell Support forever.

bought rubbers on .. mounting is very hard... 1 rubber on and 1 on the throttle bodie works much better — at Twin Motorcycles Buell Support forever.

checking if seated correctly — at Twin Motorcycles Buell Support forever.

a flex 7 mm hose clamp screw driver... very very usefull — at Twin Motorcycles Buell Support forever.

fuel lines conencted — at Twin Motorcycles Buell Support forever.

top injectors markings — at Twin Motorcycles Buell Support forever.

air filter in — at Twin Motorcycles Buell Support forever.

and the wedge holding the filter in place — at Twin Motorcycles Buell Support forever.

intake solinoid.. i will denoid the bike i think — atTwin Motorcycles Buell Support forever.
