5-12-2018 XB12R finish XB12S 2008 REMUS problem

9-5-2019 - What did we do today 5-12-2018 Buell XB12R finish Buell XB12S 2008 REMUS catalytic problems

new studs mounting... use a little loctite to fasten theme

new gaskets in

and mounting the new retaining rings on the header

clamping the flanges in

and mounting the header on the bike

the broken of tab.. hope this will hold , 2k glue with doubler plate to take the heat

engine back up and set bolt to TQ

spark plug cable .. booth is cracked.. will replace this

exhaust back on

give the pipe connection a love tap.. before you tighten the clamp to get the tension out

scoops back on

roght scoop on

mnnn rattles..... will put some rattle tape behind it

connecting under the bonnet

and airbox cover back on

old battery .. has 180 cca left.. is a little light for a XB

new battery in mount the strap.. the hook part first and than the slot .. with a screw driver

better..

little whiping my greasy hand prints of, and she is ready for here owner again

little whiping my greasy hand prints of, and she is ready for here owner again

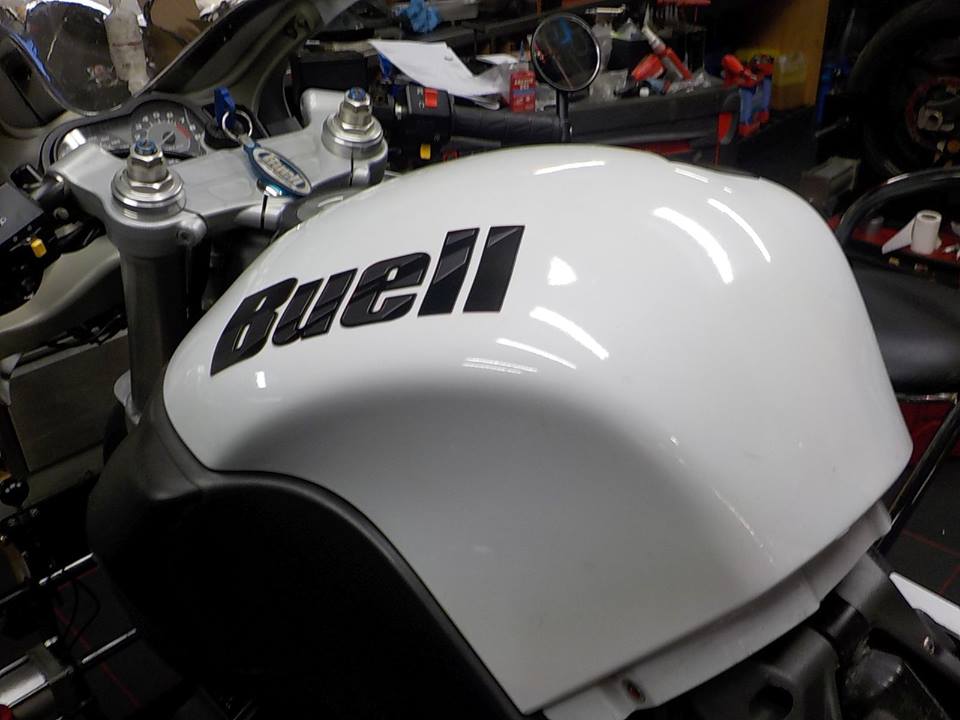

XB12S... puffing black smoke, and running bad. already diagnose AFV was 140 .. intake seals leaking. but still running bad and becoming hot very fast.. exhaust is also blowing between the clamp ? .. blocked catalistic converter ?

strip down for engine rotation. intake seals so throttle cables loose

airbox off

take the coil out

to have better acces to the throttle cables ( 08-up are screwed )

fuel lie loose

and left foot peg bracket off , as this will hit in the primairy cove

loosen the 2 connectors on the w-brace

chin spoiler off

if postitioned correctly you can get to the rear straps

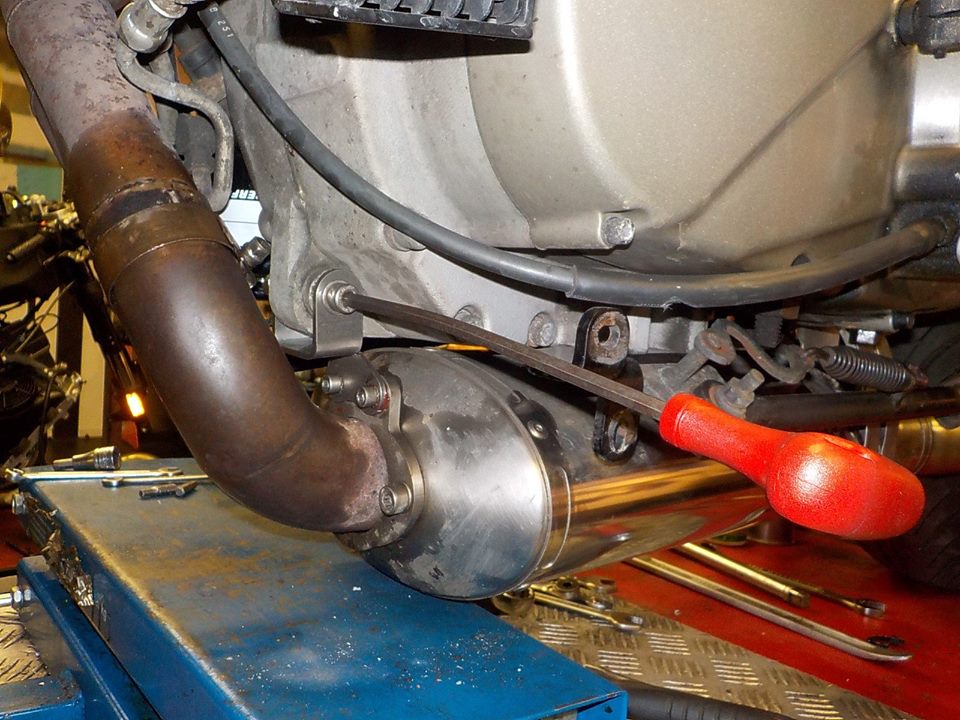

sometimes hard to get.. than it is easyer to take the idler bracket of

stock exhaust clamp on remus exhaust... douse not work... clamp is to big , and can not be tightened enough.. the pipe adaptor that came with the exhaust is not mounted !!

leaking

and rattleling

see the wear marks on the pipe ,, this will wear out the pipe over time

engine down

and injector wires loose

see the rubbers sticking out

loosen thte center screw

sparkplugs ? i will check these.. i think best to replace

intake seals.. no vacuum bites.. but the edge is hard

little cleaning to the heads

and manifold back on

rear is rear... white front

with the engine down.. plugs is a breaze .. front one is black as the night .. thick off soot

new plugs.. check the gap

spark plug connectors where not clicking.. the ends where bend open carefull closeing them with a plyer

rear plug.. same story

engine up and brace back on

mnn looking inside.. indeed looks like it is blocked

some poking and grinding... removed the broken catalystic converter.. it is completly full and closed about half way the pip

rubbing marks better visible , mount with some exhaust mounting paste

new clamp on

and rear straps i

front mounted

idler sound like a macarena ... bearings are running dry , this will not hold that long

so spiral spring out

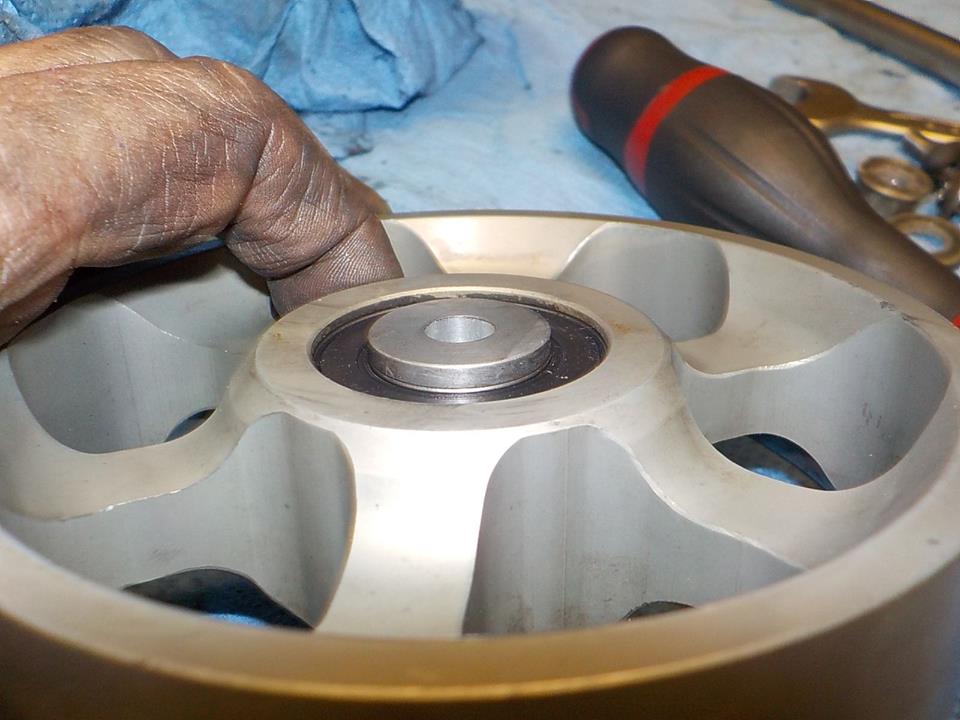

and new bearings pressed in

thin end spacer on the nice side

belt tension is not to much so i can mount it with the belt in place

moving up.. throttle cables

coil and cable back on

and running warm.. much better :-)
