21-6-2018 Buell X1, XB9SX, 1125, XB12X

5-2-2019 - 21-6-2018 finish very nice Buell X1, fork seal Buell XB9SX, Buell 1125 sparkplugs and oil change, Buell XB12X cylinder

X1 brake caliper back on loctite and 50 Nm

and tighten the disk bolts again

front fender on.. lower screws are metric .. light grade loctite aplied

tank cover on

and carbon inserts mounted

little cloudy.. change brake fluid

looks better

rear the same.. old stuff

when bleeding pump the lever so the piston has full travel

mnn crapy hose clamps.. should have replaced it when i saw it

pinch clamp on to hose size .. works better.. test ride left to do

long way from home..

xb9sx..

with leaking oil seal

front engine mount is broken.. and the bike vibrates allot , advised the customer to replace it very soon

front wheel bearings are bad.. why people do not look at this is sometimes for me hard to understand.. the tyres are brand new

anyway.. protect the fork caps

and take the fork apart

fork splitted

cleaned and some isolation tape for mounting ( sharp edges )

seals back in with the slide hammer

fill oil and bleed the rebound damper , adn set oil level

fork back in

new bearings in

set to tq , and she is good to go

1125 in for sparkplug change and oil change

airbox off

to get to the rear ( the easy one )

old plug.. looks ok

check the gaps on these to before you put theme in , the gaps are not always correct

moving to the front. .pod covers of

wheel out

and left cover loose

exhaust removed

rear O2 sensor connector of ( you pull the wire out rotating the engine )

airguide out

stick coil

i hear so many times.. we can do with out rotating the engine.. so i try it .. i already do not like the way you need to force the coil out.. this will be a pain to put back in

with sime wobble and short extention indeed you can replace teh spark plug , but to much force is needed to fight back the stick coil.. i would not advice it .. so rotating the engine anyway

front support in

and 4 bolt further the engine is down enough to mount the coil

loosen the front bracket to start the top bolts (saves the threads )

tighten the engine bolts 50 Nm start at the left side ( side with out the spacers )

airguide back in

and wire harnes pulled to the bracket

exhaust on

not first test ride and heat up the oil

hot oil.. drain right side

and left side drain plug

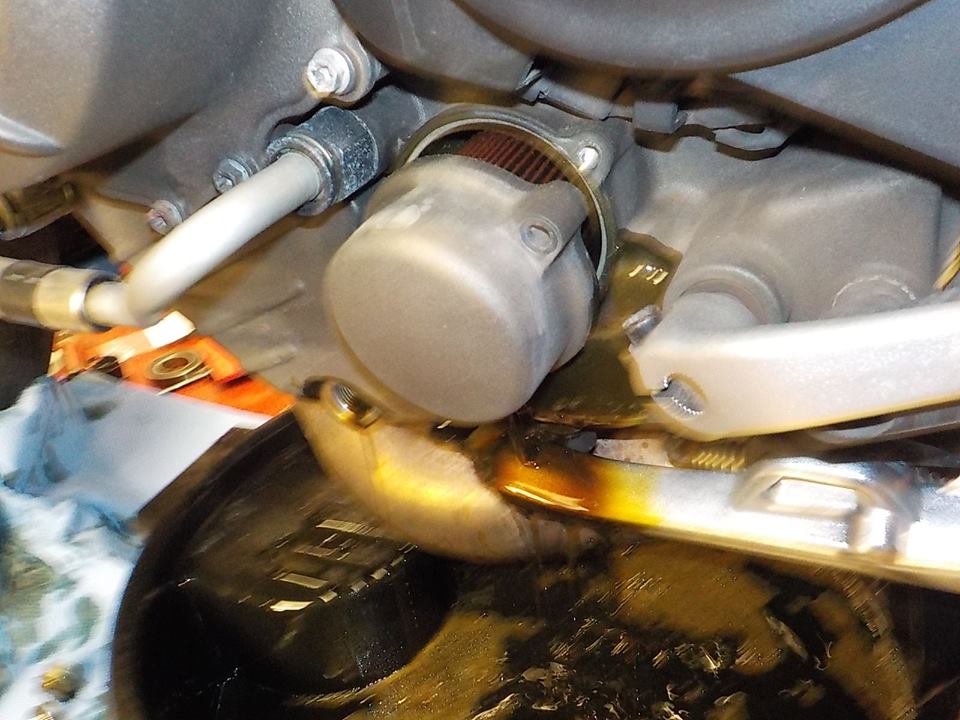

oil filter cover out

drain plug in with some sealant

and 300V in this bike

setting to level

the rear brake is binding , so need to take apart the master cylinder

remove the pushrod adaptor side

the problem.. the last end of the piston corrodes and make the piston binds

normaly a little tap trough the banjo hole

and the piston comes loose , clean it an dput assembly lube in

piston back in.. liberal amount off grease will go behind the rubber booth
