20-6-2018. XB12X service. 1125R with noice

1-2-2019 - 20-6-2018. Buell XB12X Uly in need of some tlc. Buell 1125R with a noise, very Nice Buell X1 for oil change, check up and oil pump gear change

uly from Belgium.. in for some big repairs

she has some experiance

but she is starting to blow a little trough the piston rings ( worn piston rings )

she has some troubles with headlight bulbs.. mnn starting Vr seams good

light popped out again

eeehhh ok .. that is way to much.. the Voltage regulator is giving to much

draining the fuilds .. little to no debris on the engine oil... good

but some missing bolts ?

and a half broken chin spoiler

the W-brace needs to be coated, as it looks bad and corroded , so oil cooler bolts loose

clutch cable is starting to sweat .

regulator wires loose

eehh i will replace this bolt to

rattel test on the shift lever.. it did rattle bolt not loose. but worn thin

clutch cable loose // i will replace this one

very nice 1125R brought in for diagnose off engine noise ( see clip ) need to talk to the customer about it —

very clean and nice X1... she looks like new

taking of the chin spoiler to drain the oil

pully cover loose

checking the battery.. CCA is low for this big battery..

draining oil the slow way

exhaust of to drain the gearbox oil

take the spark plugs out while the bike is draining

clutch cover seal ring.. these get hard after some time .. some times better to put a new one in —

belt tensioners loose

inspection cover loose to check the primairy chain

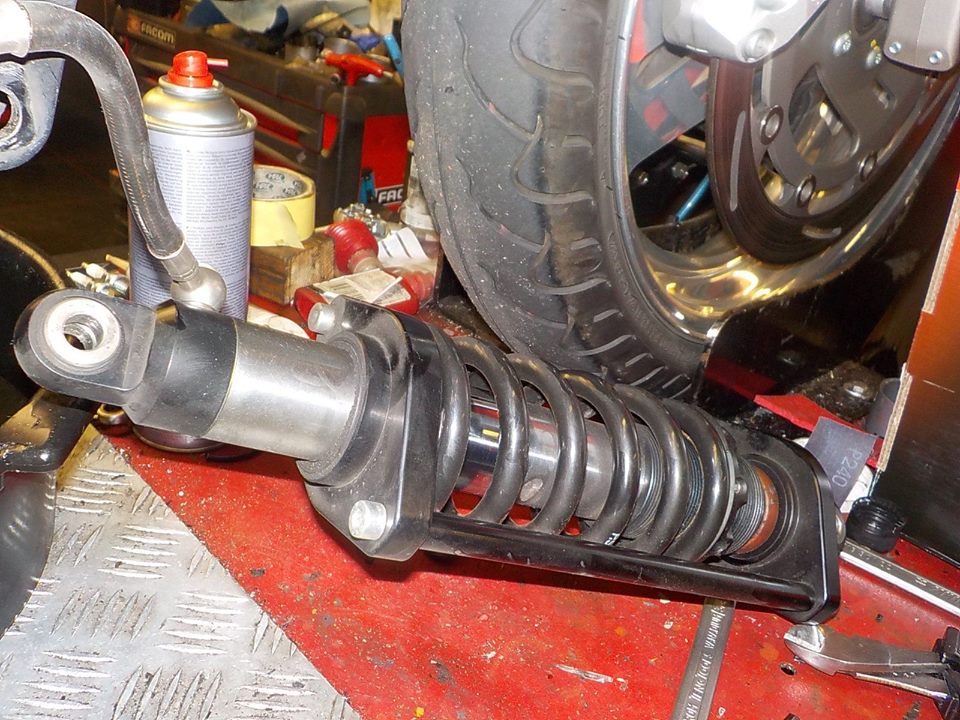

strapping the bike in the hoist.. as we need to take the shock of

weight of the bike and loosening the 2 bolts

and move teh shock to the side

we need to inspect the oil pump gear

take 2 spanners to loosen the pressure oil line

and unscrew the 2 bolts

to take the oil pump out

now with a mirror and light you can inspect the oil pump gear.. have the reas wheel lifted, bike in 5e gear so you can bump the engine around.. as you need to checl the gear on all places , this one has wear marks.. advice to change, but need to call the customer

first replace the rear tyre

fresh new tyres..

oil pump can go back in, with new gasket

talked to the customer.. replace the oil pump gear... ok.. so header of

as we need to take of the gear cover

removing the fuel tank with covers

to get to the rocker boxes.. as we need to take the valve spring pressure of

lower box screws out

mnn very good.. front one was still the 2 piece paper gasket.. and this would have been starting to leak anytime

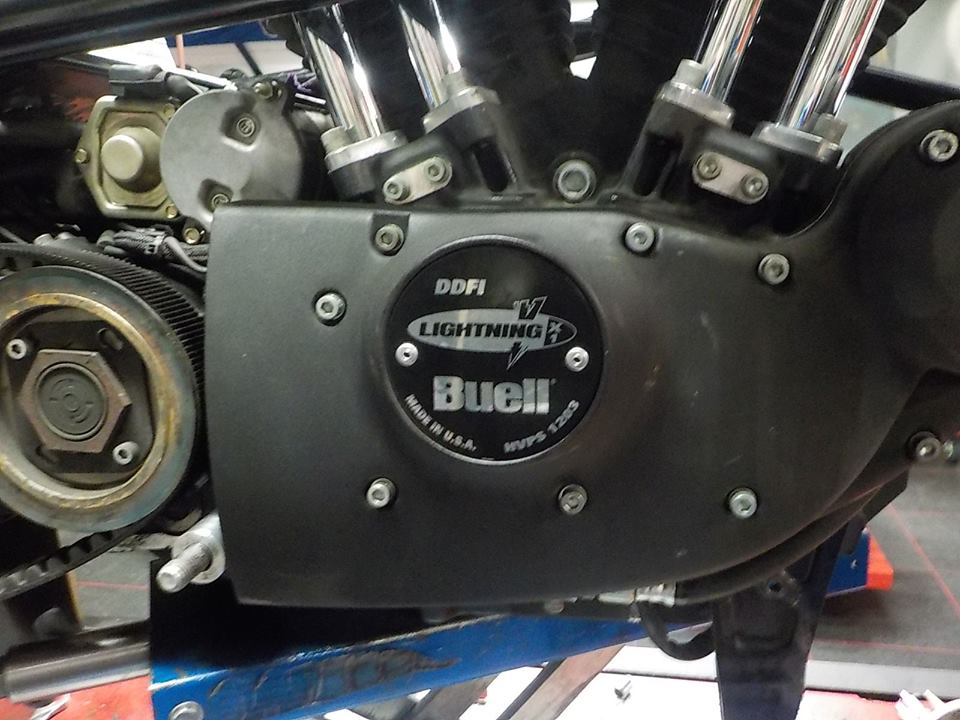

timing cover of

and steel plate loose

marking the ignition pickup , for easy mounting

and timing cam can be taken out

cover screws loose

and cover of

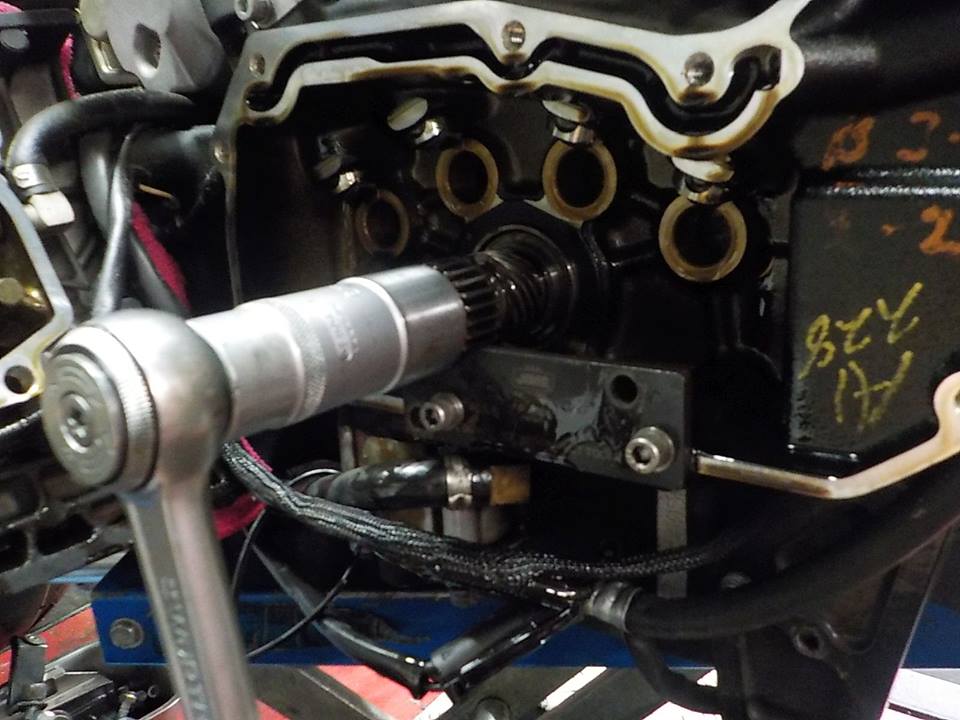

lock tool inplace to remove the nut

and pulling of the oil pump gear

yep glad i ded it.. noticeble wear visible , would not have failed the next 1000 km.. but not a good feeling

new oil pump gear in.. and assembly lube on

check the pinion gear the edge for the lock key are good and nice

red loctite for the nut

30 nm + 19 deg

cams back in follow the dots

ome assembly lube on the bushings

and cover on

trigger wheel in and sensor on

header can be mounted

and rocker box back on

new umbrella plugs mounted ( head / case breather system

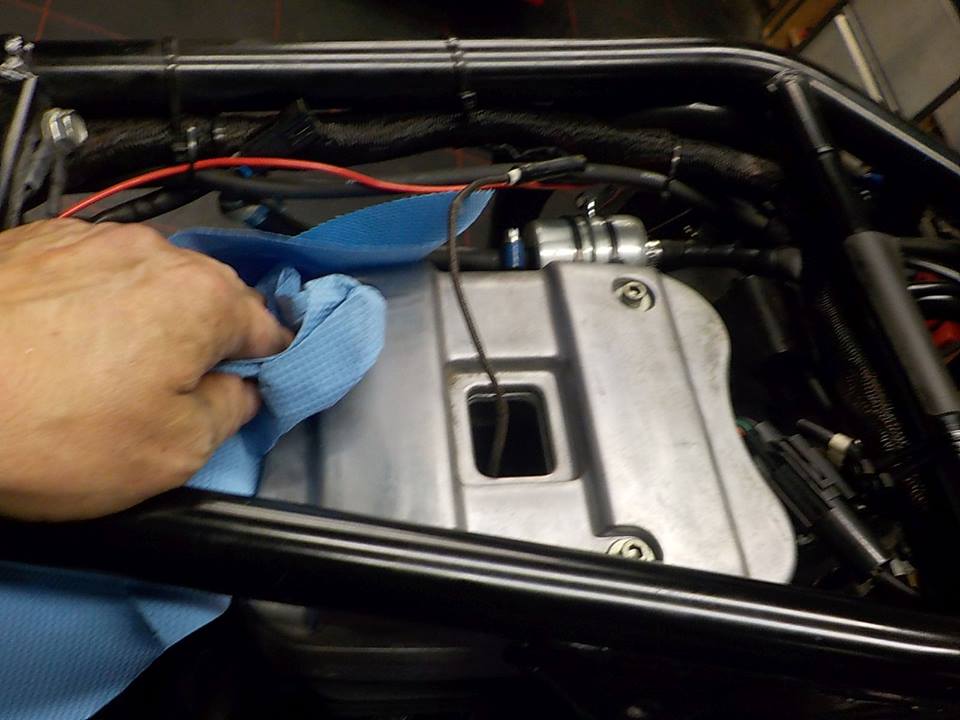

whipe the dirty fingerprints.. you do automaticly on a very clean bike

the difficult screw in the front

and top cover back on

fuel cel hose connection

and shock mounting

pully cover

wheel to tq and belt tightened

new spark plugs in

removing the oil filter.. to help allot off spill put the oil filter box back on.. to guide the oil comming out

new filter on

motor spoiler.. put some loctite on these

anty rattle o-rings on the spacer bushings

testing if it douse not rattle anymore

nice bike

testing.. for oil and pump gear.. running smooth

bike turned around for front end check

nut loose .. sheees looks like new

front fender loose

loosen the disk bolts

that way you can take off the caliper with pads in

front wheel out

and with fresh tyre back in
