15-6-2018 XB12SS service check, Uly fork seals, X

29-1-2019 - 15-6-2018 XB12SS service check, Uly fork seals, XB9Sx no compression

in for some care and fresh oil

i will remove this one.

shifter seal looks like it is leaking

chin spoiler is toast.. a 1 piece one is much stronger

oil drained, and fresh gearbox oil in

checking the shift lever

this was loose..( see vid ) clean and loctite

normaly you can pull these off.

if not .. do not try to pry it open.. take a lever and lever it of.. preying will break the lever

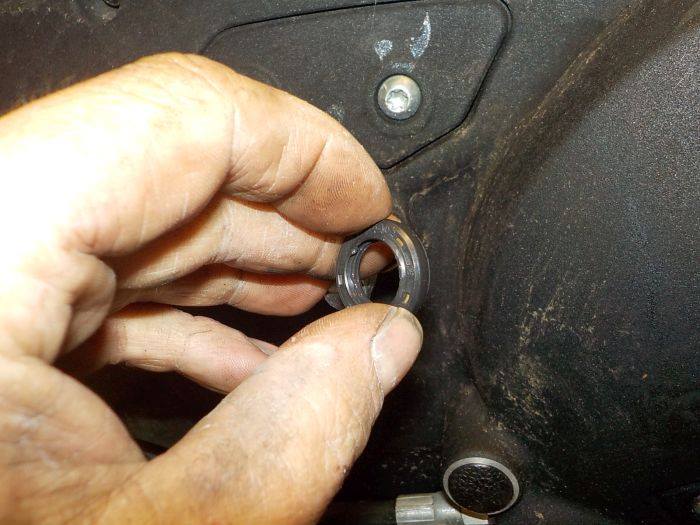

oil seal out

some grease on the sealing lip

and tapping it in high 5/8 socket works

the new 06-up are stainless shafts

oil in

prime the oil filter , helps to cut down the no oil pressure running during starting

wide tyre.. with stock inner belt guard. it will rub

190 /50 i think this profile is also a little wider than normal 190

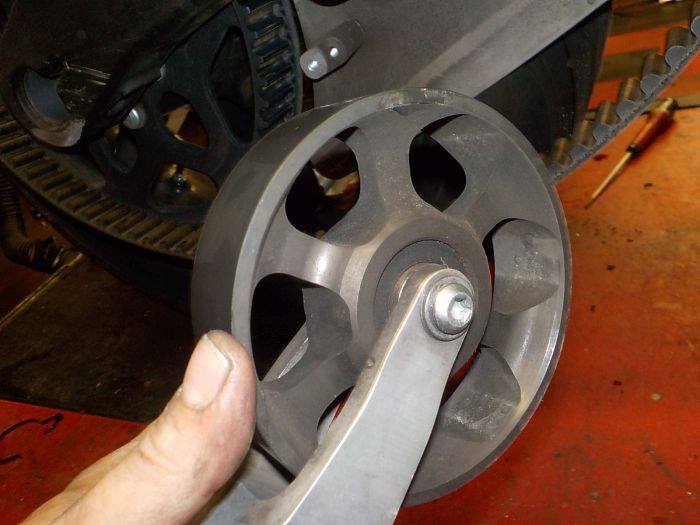

bearing check idler

bearings rear are ok

belt is starting to show wear and light cracks.. need to keep a eye out for this

chain tension checked

front plug from below ..looks good with 18 K done

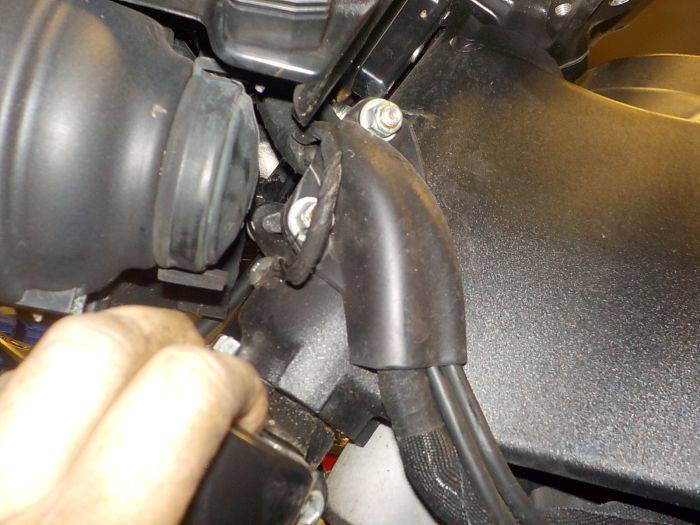

plug cables are also ok.. little rubbing from the throttle cables

rear plug in

side stap... leaking uly fork seal.. making a oil catch from a piece off cloth, best way to safe the brakes , and safe to travel small distances

bike in the lift —

front fender of

caliper bolts loose

and front end in the lift

frotn leg out.. put some isolation tape on the nut to protect the aluminium

cleaning the lowers

looking pritty again

checking settings before you take the top cap of

dust seal out, and spring clip loose

outer guide ok

inner guide ok

so new seals

and some isolation tape to make a slide on help for the new seals

clip on the new dust seal so it is not rattleling around

little mounting grease..just because it mounts easier

and with toolhammer in the seals

uly..oil level.. with spring 1 to 2 cm from the top :-) ( helps if you have a Uly your self )

fork back in

and wheel back in

caliper cleaned and bolts in with loctite

setting the forks on the axle by pushing the front down a few times , and than tighten the pinch bolts

xb12ss service.. sparkplug cables back on

and airfilter + base plate on

this bike also turned aroung for front wheel check

sheesss.. this front axle was very tight ( bearings where also done )

with the forks out.. check the grounds on the steering head .. easy check now

one down , one to go .. cleaned and checked and freshed

front back in we have checked.. of course how deep

next one

new wheel bearings in and wheel back in

left scoop in.. push the ziptie barbs in the holes

front brake fuild.. grrr... this one is to tight for the screw driver

very easy , dril the head of

remove the cover and you can turn out the left over ( tension is off )

and new fluid in

and off course new scre

warming up, setting oil level , and test ride

also first test ride on the S3 with 1250 kit... first time the oil get a little warm.. so check for leaks

nice and dry.. she is ready for pick up

xb9sx.. no compression fron.. going to take the head of

loosening the w-brace

easy to work with micron.. loosen

and remove

and a muffler build like a tank

sticking out parts of , before i loose my eye

connectors loose and clutch cable loose to drop the engine

top side connectors loose

coil out

for better acces tot the throttle cables

wire loom guide loose

intake manifold loose

and out

and starting to remove the rocker box

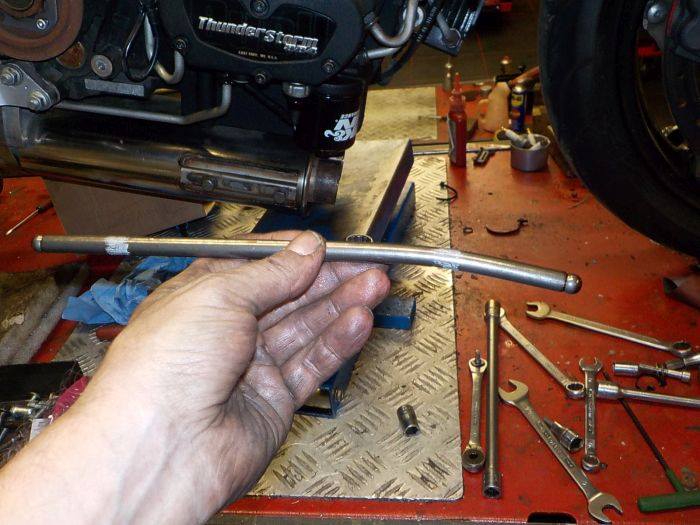

mnnn .. strange design pushrod

the other one to..

me thinks the head needs to come off . breaker bar makes easy work

no more guessing.. they made contect

and i can see from here the exhaust valve is bend and probelby the intake to

checking the cylinder , pushrod cover of.. tape it of so no dirt can fall in

cylinder looks ok

piston to .. a bit loose on the wrist pin.. but the rings are free and are not jammed

checking the valves

yep bend.. only the valve end is bend the stems are straight.. so guides should be ok to
