8-6-2018 XB12ss electrical problem, Uly service

8-1-2019 - What did we do today: 8-6-2018 Buell XB12ss electrical problems ECMSPY analyses, Buell XB12X Ulysses service

and very strange not conneting problem to the ecm ( bike is running normal ) — at Twin Motorcycles Buell Support forever.

tried another ecm .. same

will first see the front side for the indicator relais problem.. perhaps also the ecm problem — at Twin Motorcycles Buell Support forever.

pull test to the wire loom around the steering head.. clear indiction the problem is there — at Twin Motorcycles Buell Support forever.

works easy to take the left fork out — at Twin Motorcycles Buell Support forever.

and remove the kabel guide — at Twin Motorcycles Buell Support forever.



mnnn proto Elf model ;-) — at Twin Motorcycles Buell Support forever.

made connections.. for navigation.. will tape theme back — at Twin Motorcycles Buell Support forever.

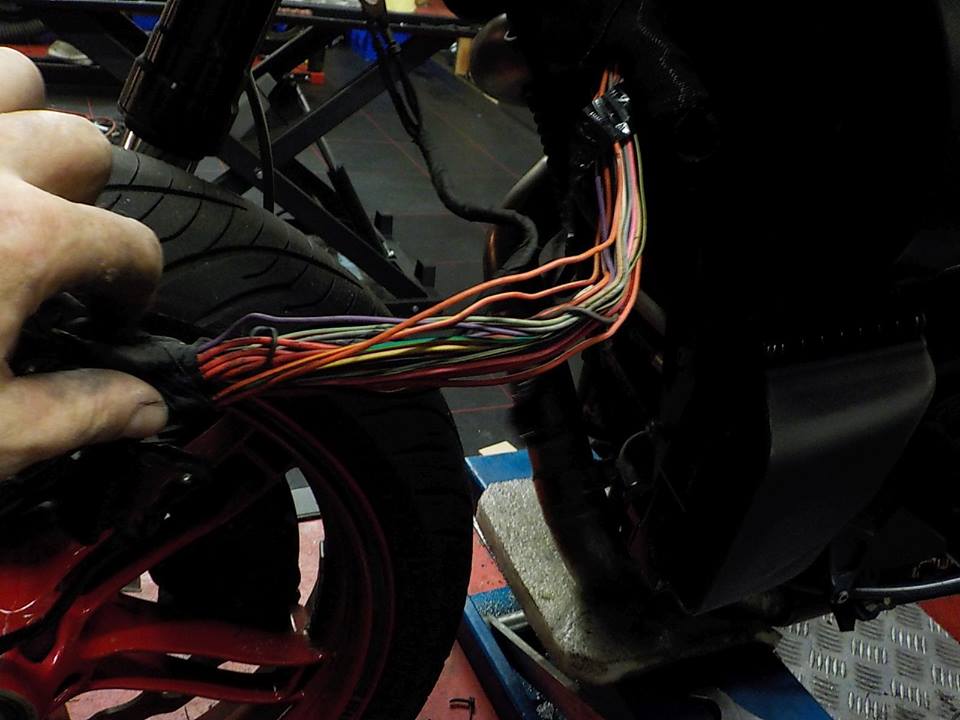

wire loom out — at Twin Motorcycles Buell Support forever.

and isolation cut — at Twin Motorcycles Buell Support forever.

tracing the wires.. red/white indicator left start there.. i feel the wire break — at Twin Motorcycles Buell Support forever.

and can easy pull it apart , the wire was broken — atTwin Motorcycles Buell Support forever.

best invention since sliced bread... heatshrink solder wire connections — at Twin Motorcycles Buell Support forever.

testing .. ok — at Twin Motorcycles Buell Support forever.

taping up and guide back on — at Twin Motorcycles Buell Support forever.

ziptie it in place so the cables do not hang or snag— at Twin Motorcycles Buell Support forever.

and front end back in — at Twin Motorcycles Buell Support forever.

need the book for this .. tracing the link plug wires — at Twin Motorcycles Buell Support forever.

checking in the ecm plug, for wire breaks — at Twin Motorcycles Buell Support forever.

check with other divice as it could be the cable it self— at Twin Motorcycles Buell Support forever.

still high grond resistance power on — at Twin Motorcycles Buell Support forever.

seat spar problem ? was no problems ever with this bike — at Twin Motorcycles Buell Support forever.

giving it a little more ground with a lead wire — atTwin Motorcycles Buell Support forever.

woking... — at Twin Motorcycles Buell Support forever.

uly service — at Twin Motorcycles Buell Support forever.

i will reposition the ecm.. no spacers and the connectors look very bad.. no troubles yet.. — atTwin Motorcycles Buell Support forever.

hessitation and bad cruising low rpm / 3000 rpm .. intake seal check — at Twin Motorcycles Buell Support forever.

i noted a little leak.. we will replace these — at Twin Motorcycles Buell Support forever.

now first oil drain , some metal dust starting to get on the plug.. ( 68000 km on the bike ) — at Twin Motorcycles Buell Support forever.

rear wheel check .. taking of the caliper — at Twin Motorcycles Buell Support forever.

mnnn need some effort to get this out — at Twin Motorcycles Buell Support forever.

the allen head is damaged by tire changers with not the correct tools .. — at Twin Motorcycles Buell Support forever.

axle is also breaker bar needed to get loose tight ..— at Twin Motorcycles Buell Support forever.

wheel bearings are done — at Twin Motorcycles Buell Support forever.

new bearings pressed in — at Twin Motorcycles Buell Support forever.

and new pinch bolt — at Twin Motorcycles Buell Support forever.

moving tot he front.. oil filter change — at Twin Motorcycles Buell Support forever.

and checking the primairy chain — at Twin Motorcycles Buell Support forever.

checking the clutch , as there was allot off free play on it — at Twin Motorcycles Buell Support forever.

engine oil in — at Twin Motorcycles Buell Support forever.

and making reasdy for engine rotation.. i take a short cut with a tire iron..so i don't have to remove the exhaust.. ( douse not work for all exhaust ) — atTwin Motorcycles Buell Support forever.

clutch and throttle loose — at Twin Motorcycles Buell Support forever.

airbox of .. some oil in the box.. has been running bad.. i will clean and keep a eye on it — at Twin Motorcycles Buell Support forever.

intake stack of, and top rod loose — at Twin Motorcycles Buell Support forever.

electrics loose .. inspect the wires for rubbing — atTwin Motorcycles Buell Support forever.

engine down. and loosen intake manifold — at Twin Motorcycles Buell Support forever.

throttle bodie of — at Twin Motorcycles Buell Support forever.

cleaned and new gaskets.. easy peasy.. back on — at Twin Motorcycles Buell Support forever.

engine up and front mount back in — at Twin Motorcycles Buell Support forever.

nice headers :-) — at Twin Motorcycles Buell Support forever.

always look for stuff.. not the isolation on the airbox temp sensor — at Twin Motorcycles Buell Support forever.

ecm of — at Twin Motorcycles Buell Support forever.

and reposition here .. — at Twin Motorcycles Buell Support forever.

bend the rear strap to the battery and ziptie it to the rear shock and rear bracket.. seat will not rest on the connectors any more — at Twin Motorcycles Buell Support forever.

base plate cleaned — at Twin Motorcycles Buell Support forever.

fuel map in and setting tps — at Twin Motorcycles Buell Support forever.
