17-5-2018 XB studs, 1125 service and charging

6-11-2018 - 17-5-2018 Buell XB header studs drilling, Buell 1125 service and charging check

on the uly we need to rotate the engine down — bijTwin Motorcycles Buell Support forever.

loosen the rear O2 sensor plug — bij Twin Motorcycles Buell Support forever.

mnnn gearbox breahter hose has been melting on the header — bij Twin Motorcycles Buell Support forever.

header of — bij Twin Motorcycles Buell Support forever.

getting things out the way.. w-brace loos, note the marking on the oil line from the clutch cable .. look for this !! — bij Twin Motorcycles Buell Support forever.

room to move — bij Twin Motorcycles Buell Support forever.

the gasket needs to come out to — bij Twin Motorcycles Buell Support forever.

with bought studs broken ,, lyning up the drill tool take a little time to get it right — bij Twin Motorcycles Buell Support forever.

aaahhh normaly nightmare... cobalt dril bit broke in the head.. i could get the little piece out .. puufff other wise head needed to be taken of and send to the EDM guys , to spark the bit out — bij Twin Motorcycles Buell Support forever.

tapping — bij Twin Motorcycles Buell Support forever.

and mounting with red loctite , one down — bij Twin Motorcycles Buell Support forever.

my 10 oclock is in for check up — bij Twin Motorcycles Buell Support forever.

bike has a problem charging when hot.. checking the plug.. note the brun marks.. the problem ? or — bijTwin Motorcycles Buell Support forever.

checking the AC voltage , seam unloaded good ? — bij Twin Motorcycles Buell Support forever.

but still battery will not charge , will try to make connections in the wire harness first — bij Twin Motorcycles Buell Support forever.

so first on with the survice.. oil out — bij Twin Motorcycles Buell Support forever.

and right side plug out — bij Twin Motorcycles Buell Support forever.

.clutch cover gasket looks like it is leaking , i could tighten the 3 front lower screws — bij Twin Motorcycles Buell Support forever.

oil plugs back in — bij Twin Motorcycles Buell Support forever.

and rear wheel bearing check — bij Twin Motorcycles Buell Support forever.

brake pads are ok — bij Twin Motorcycles Buell Support forever.

axle looks nice — bij Twin Motorcycles Buell Support forever.

wheel bearings feel shot , going to replace these — bij Twin Motorcycles Buell Support forever.

belt is at a point where replacement would be a good option... if only it was not B.O. at the moment :-( — bij Twin Motorcycles Buell Support forever.

so new bearings.. and wheel back in — bij Twin Motorcycles Buell Support forever.

checking the rear brake if it not binding — bij Twin Motorcycles Buell Support forever.

front end check — bij Twin Motorcycles Buell Support forever.

front wheel out .. much force needed — bij Twin Motorcycles Buell Support forever.

yup bearings are done — bij Twin Motorcycles Buell Support forever.

and i will clean of the gue on the front leg..will fuck up the seals — bij Twin Motorcycles Buell Support forever.

new bearings in and wheel back in — bij Twin Motorcycles Buell Support forever.

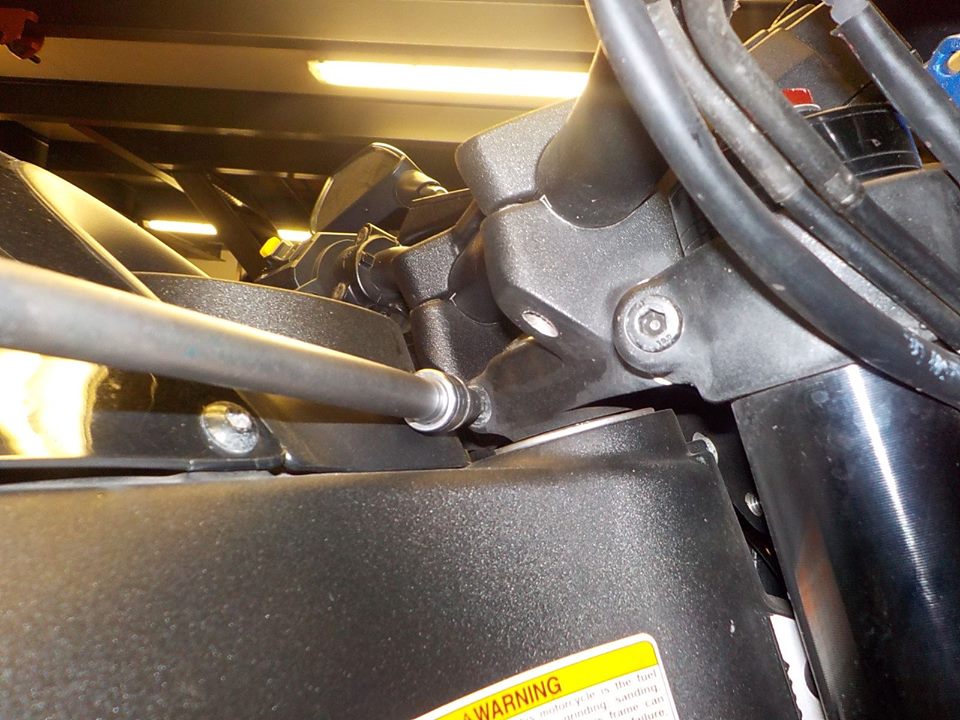

still in the front lift. going to retighten the steering head.. loosen the lower triple clamp bolts — bij Twin Motorcycles Buell Support forever.

stem pinch bolt loose — bij Twin Motorcycles Buell Support forever.

and handle bar loose — bij Twin Motorcycles Buell Support forever.

Afbeelding kan het volgende bevatten: motor

pinch bolt tighten again — bij Twin Motorcycles Buell Support forever.

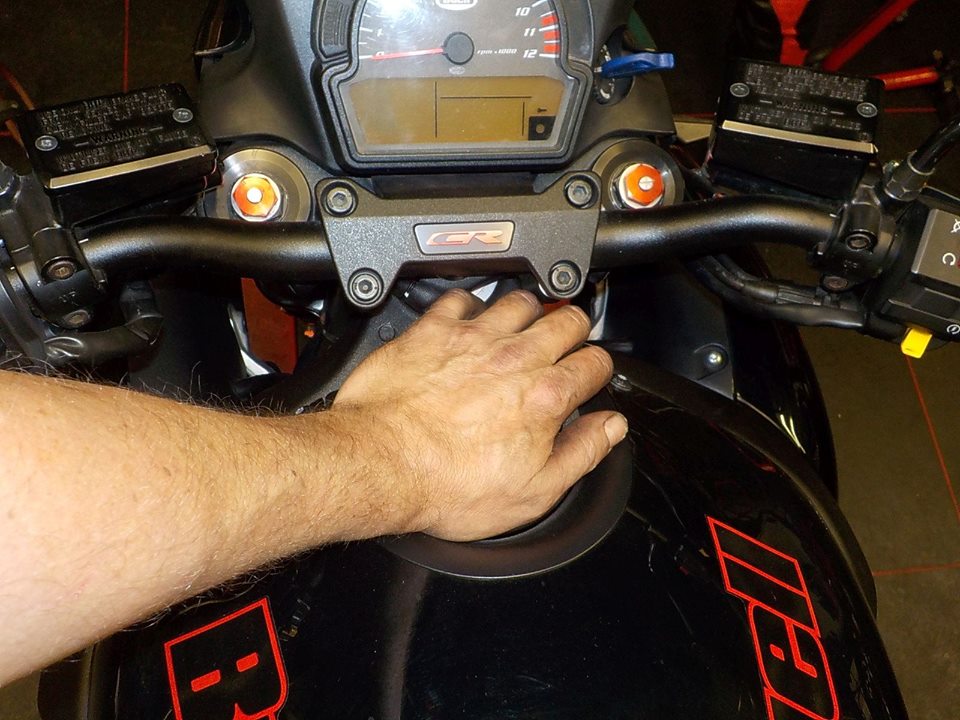

and pushing down the suspention to set the front forks — bij Twin Motorcycles Buell Support forever.

brake fluid change — bij Twin Motorcycles Buell Support forever.

and new clutch fluid — bij Twin Motorcycles Buell Support forever.

so the charging.. — bij Twin Motorcycles Buell Support forever.

make a better connection to check if this is ok, and was the problem ? — bij Twin Motorcycles Buell Support forever.

not really.. still not charging and with a little load.. the AC charge drops under 9 volts .. ok check the stator— bij Twin Motorcycles Buell Support forever.

oil line loose — bij Twin Motorcycles Buell Support forever.

ignition sensor loose — bij Twin Motorcycles Buell Support forever.

and loosen the cover — bij Twin Motorcycles Buell Support forever.

firm pull to take the cover of — bij Twin Motorcycles Buell Support forever.

and removing the stator — bij Twin Motorcycles Buell Support forever.

ont he back side. a little problem.. — bij Twin Motorcycles Buell Support forever.

new one in.. red loctite on these bolts !!! — bij Twin Motorcycles Buell Support forever.

cover back on — bij Twin Motorcycles Buell Support forever.

cover back on — bij Twin Motorcycles Buell Support forever.

replaired the connector for the new stator — bij Twin Motorcycles Buell Support forever.

better... charging — bij Twin Motorcycles Buell Support forever.

reseting the service interval ,press mode and togle to getter — bij Twin Motorcycles Buell Support forever.

scrol down to service counter. and pres mode , and the countdown will start again from 10000 km — bijTwin Motorcycles Buell Support forever.

Uly studs.... long good dril and 200 Lbs gorrilla pushing it. makes very easy work on the studs — bijTwin Motorcycles Buell Support forever.

2e hole done — bij Twin Motorcycles Buell Support forever.

tapping and mounting — bij Twin Motorcycles Buell Support forever.

new gasket — bij Twin Motorcycles Buell Support forever.

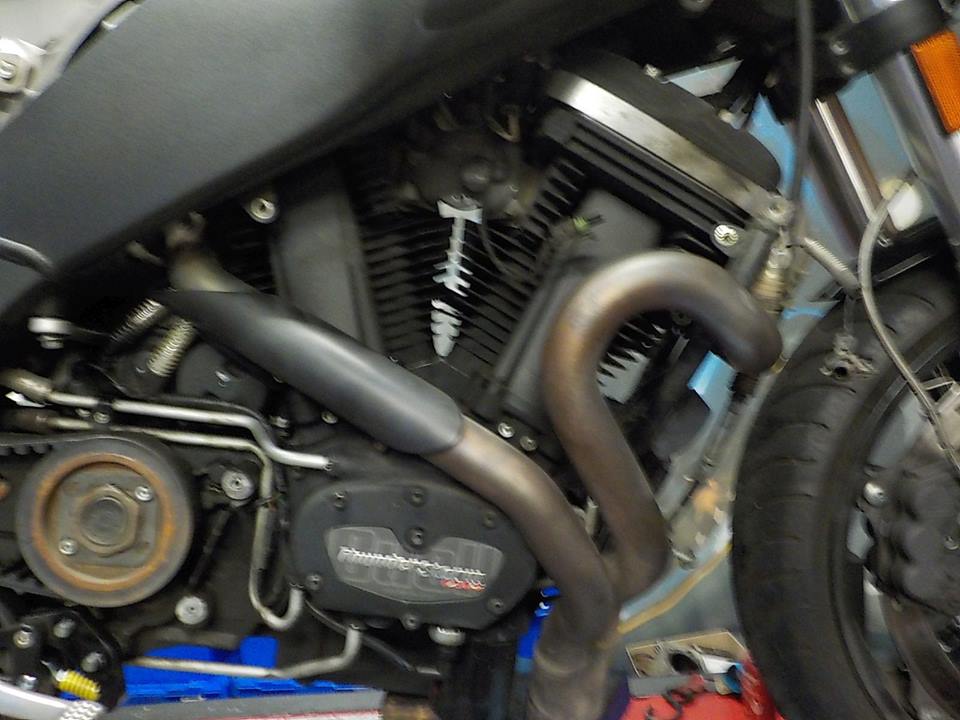

and headers back in — bij Twin Motorcycles Buell Support forever.

front mount bolt , lubed from more plesure — bijTwin Motorcycles Buell Support forever.

mounting the exhaust. i will give the braket a few wacks — bij Twin Motorcycles Buell Support forever.

so it is more straight — bij Twin Motorcycles Buell Support forever.

fits better now :-) — bij Twin Motorcycles Buell Support forever.

lower pice done — bij Twin Motorcycles Buell Support forever.

upper tierod needs mounting — bij Twin Motorcycles Buell Support forever.



base place ont

See Translation


and front wheel check — bij Twin Motorcycles Buell Support forever.

needed new brake pads.. ringng a long time — bijTwin Motorcycles Buell Support forever.

front back in — bij Twin Motorcycles Buell Support forever.

warming up..for test ride. nice bike . gr, martin — bijTwin Motorcycles Buell Support forever.
