16-5-18 XB9 inspection XB12S fuel pump Uly service

23-10-2018 - What did we do today: 16-5-2018 Buell XB9S inspection, Buell XB12S fuel pump and handle bar wiring inside, Buell Ulysses service, Buell XB12X header nuts

very long time not seen this bike.. in for check up.. and oil change — bij Twin Motorcycles Buell Support forever.

well made licence plate holder — bij Twin Motorcycles Buell Support forever.

and nice head ligts ( halos ) — bij Twin Motorcycles Buell Support forever.

warming up the engine.. run very noisy — bij Twin Motorcycles Buell Support forever.

draining the oil.. the plug came out with a shitload off metal debris on it .. ok.. done for now.. first speak the owner — bij Twin Motorcycles Buell Support forever.

with the oil drained.. leave nothing to it.. disconnect the battery cable — bij Twin Motorcycles Buell Support forever.

and a clean note.. no oil — bij Twin Motorcycles Buell Support forever.

ok on to the next.. fuel pump . low lever light issues— bij Twin Motorcycles Buell Support forever.

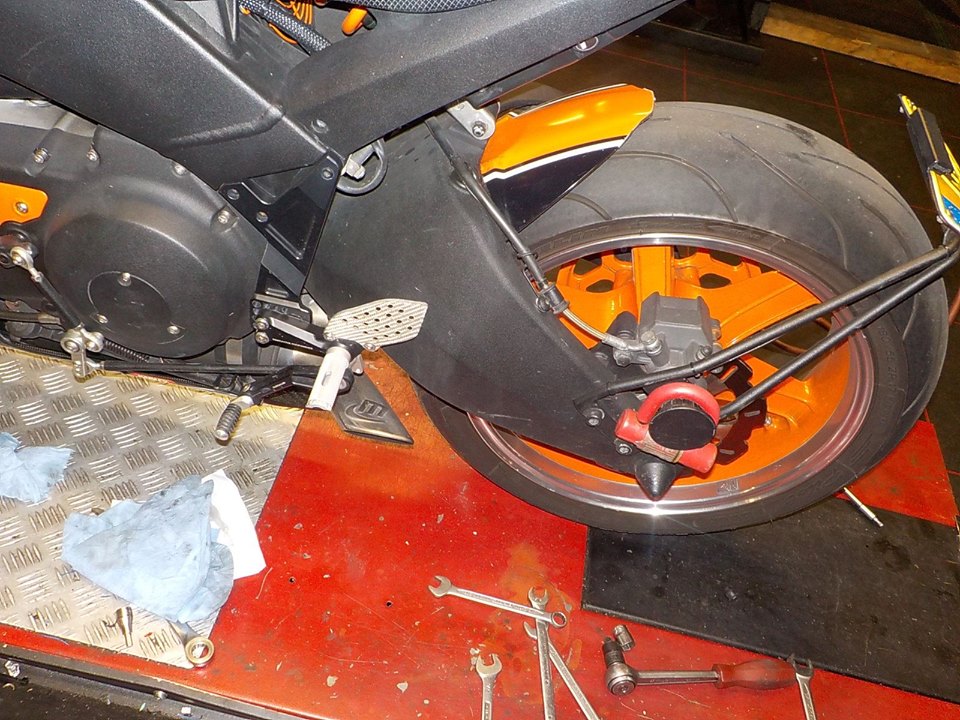

left peg bracket off to get to the pump — bij Twin Motorcycles Buell Support forever.

bike in a hoist to lift the rear.. pinch bolt swingarm axle loose — bij Twin Motorcycles Buell Support forever.

and loosen the swing arm.. i leave the axle in as a limiter — bij Twin Motorcycles Buell Support forever.

lower shock mount loose and loosen the pump bolts— bij Twin Motorcycles Buell Support forever.

the center hole is 1/4-20 with a screw and ring on it you can use this as pulling lever to get the pump out— bij Twin Motorcycles Buell Support forever.

pomp taken out.. see the rubbing marks on the wireing i'm going to use isolation to protect this — bijTwin Motorcycles Buell Support forever.

as the resistance off the low lever sensor is very specific.. i'm not gambeling this..i will replace this also.. — bij Twin Motorcycles Buell Support forever.

wires isolated.. and new orings on the pump base — bij Twin Motorcycles Buell Support forever.

moutn the pump back on — bij Twin Motorcycles Buell Support forever.

swingarm axle in — bij Twin Motorcycles Buell Support forever.

and wheel back in — bij Twin Motorcycles Buell Support forever.

moving up , removing the bar ends — bij Twin Motorcycles Buell Support forever.

these turned with the cap.. needed to hold these.. some protection isolation tape on — bij Twin Motorcycles Buell Support forever.

and remove theme — bij Twin Motorcycles Buell Support forever.

rigth side parts removed from the handle bar — bijTwin Motorcycles Buell Support forever.

rigth side parts removed from the handle bar — bijTwin Motorcycles Buell Support forever.

drilled and pulling wires put in there — bij Twin Motorcycles Buell Support forever.

mirrors mounted.. and wires pulled trough ( indicators on the mirror stem ) — bij Twin Motorcycles Buell Support forever.

bought mirrors done.. the customer is conencting these him self.. so i will pull theme behind the flyscreen — bij Twin Motorcycles Buell Support forever.

fuel back in the frame.. contact to prime the lines.. low level works — bij Twin Motorcycles Buell Support forever.

and 20-30 seconds.. the low lever is out.. as it should with fuel tank .. works — bij Twin Motorcycles Buell Support forever.

custom head ligth.. need to make a connector to the OEM plug on the bike — bij Twin Motorcycles Buell Support forever.

my 10 o clock apoint is here . inspection and service Uly — bij Twin Motorcycles Buell Support forever.

still going strong.. — bij Twin Motorcycles Buell Support forever.

she has a little hick up.. inspected the intake seals.. and these where leaking a little.. we ar going to mount our intake flanges on this bike — bij Twin Motorcycles Buell Support forever.

so exhaust off to drop the engine — bij Twin Motorcycles Buell Support forever.

first rear wheel inspecion — bij Twin Motorcycles Buell Support forever.

and belt check — bij Twin Motorcycles Buell Support forever.

ok on the list for next time — bij Twin Motorcycles Buell Support forever.

wheel bearings are ok — bij Twin Motorcycles Buell Support forever.

starting to strip the top side for the engine rotation — bij Twin Motorcycles Buell Support forever.

checking the priamiry chain.. little tight .. check on at least 3 places — bij Twin Motorcycles Buell Support forever.

engine supported.. and loosening the front bolt — bijTwin Motorcycles Buell Support forever.

moving up. airbox base plate of — bij Twin Motorcycles Buell Support forever.

and disconnecting the electrics — bij Twin Motorcycles Buell Support forever.

throttle cables loose and clutch cable loose — bijTwin Motorcycles Buell Support forever.

engine down and unscrewing the intske manifold — bij Twin Motorcycles Buell Support forever.

with the engine down.. changing plugs is childs play..— bij Twin Motorcycles Buell Support forever.

old ones out — bij Twin Motorcycles Buell Support forever.

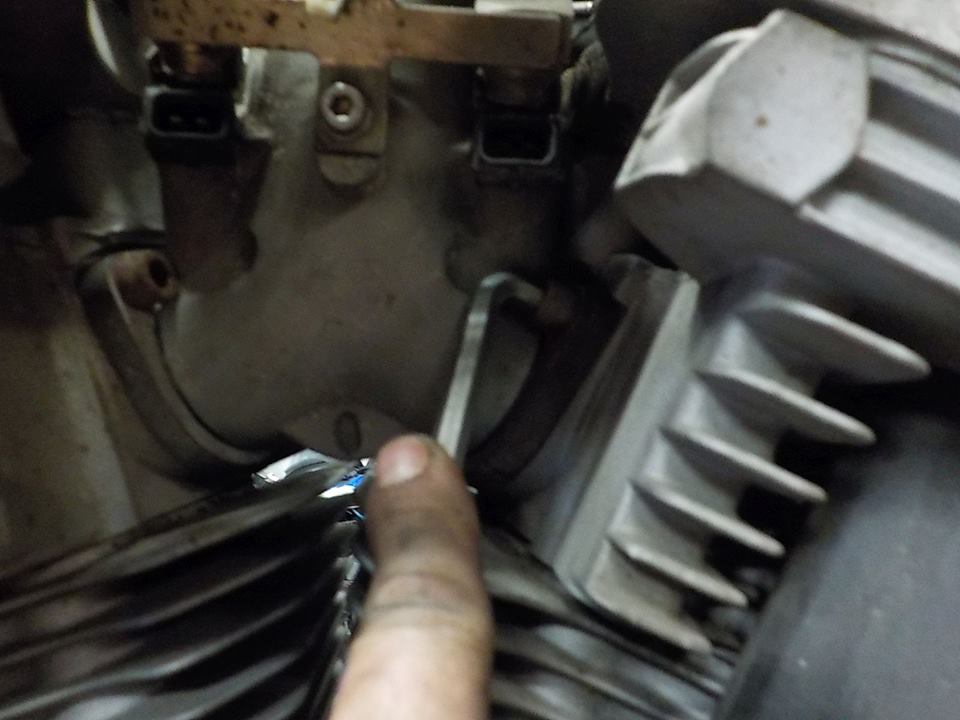

checking the gap and new ones back in — bij Twin Motorcycles Buell Support forever.

old intake seal have become hard.. — bij Twin Motorcycles Buell Support forever.

cleaning the heads — bij Twin Motorcycles Buell Support forever.

and checking the clearance for the new flanges — bij Twin Motorcycles Buell Support forever.

mountiing grease on — bij Twin Motorcycles Buell Support forever.

and press the flange on the cleaned. throttle bodie— bij Twin Motorcycles Buell Support forever.

mount.. and tighen the bolts — bij Twin Motorcycles Buell Support forever.

engine rotated up again — bij Twin Motorcycles Buell Support forever.

and mounted the exhaust back under — bij Twin Motorcycles Buell Support forever.

CF shin spoiler.. very strong ones — bij Twin Motorcycles Buell Support forever.

aah crap.. push throttle wire is starting ti fray — bijTwin Motorcycles Buell Support forever.

pulling the wire trough — bij Twin Motorcycles Buell Support forever.

zip tie the wires aind connector so they can not rattle to sharp things — bij Twin Motorcycles Buell Support forever.

thorn in my eye.. loose grips .... some new glue , and try again — bij Twin Motorcycles Buell Support forever.

intake stack on.. make sure it is seating flush with the intake — bij Twin Motorcycles Buell Support forever.

checking and adjuasting tps — bij Twin Motorcycles Buell Support forever.

just putting things wright .. rubber is to probect the wire..inbeween the fender slot — bij Twin Motorcycles Buell Support forever.

new brake fluid — bij Twin Motorcycles Buell Support forever.

and test ride :-) — bij Twin Motorcycles Buell Support forever.

making a head ligt connecting plug to originel plug— bij Twin Motorcycles Buell Support forever.

checking the front end — bij Twin Motorcycles Buell Support forever.

wheel bearings are ok — bij Twin Motorcycles Buell Support forever.

the front feels very funcky ans stiff — bij Twin Motorcycles Buell Support forever.

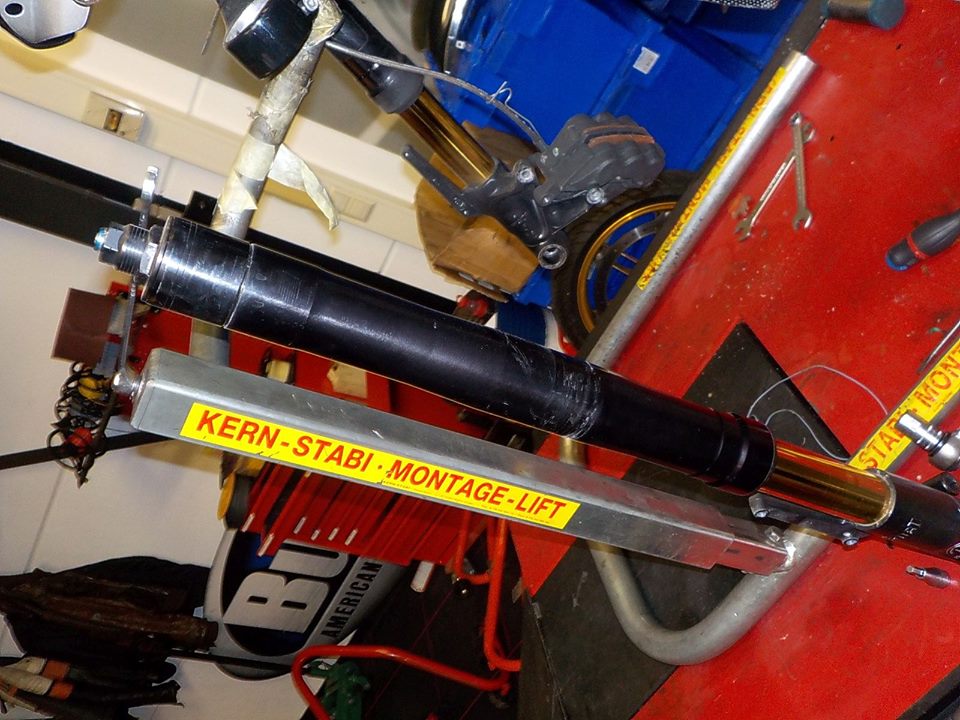

even witht the top cap off feels bad — bij Twin Motorcycles Buell Support forever.

oil inside was thick.. no normal oil . and the spring fucntion will worl on it — bij Twin Motorcycles Buell Support forever.

forks done and back in bike — bij Twin Motorcycles Buell Support forever.

now the front end feels a lottle better, setting the front axle — bij Twin Motorcycles Buell Support forever.

changing the brake fluid — bij Twin Motorcycles Buell Support forever.

for new.. also do the rear — bij Twin Motorcycles Buell Support forever.

Uly with broke exhaust stud — bij Twin Motorcycles Buell Support forever.

starting to strip the bike — bij Twin Motorcycles Buell Support forever.

ecm is put a way smart... — bij Twin Motorcycles Buell Support forever.

loosen top tie rod — bij Twin Motorcycles Buell Support forever.

this a 2010 model stock airscoop take this off with screws — bij Twin Motorcycles Buell Support forever.

clutch in for inspection — bij Twin Motorcycles Buell Support forever.

left scoop of — bij Twin Motorcycles Buell Support forever.

and loosen the connectors.. — bij Twin Motorcycles Buell Support forever.

loosen the exhaust — bij Twin Motorcycles Buell Support forever.

and some penitrant oil to see if i can at least get one— bij Twin Motorcycles Buell Support forever.

yes.. not.... :-( need to dril out 2 for 2 — bij Twin Motorcycles Buell Support forever.

anyway stange the stud broke , so let me break it down for you.. see the big dent in the exhaust ( from hitting some thing — bij Twin Motorcycles Buell Support forever.

than the exhaust hanger broke of the stress in the metal — bij Twin Motorcycles Buell Support forever.

ok wheel is ok — bij Twin Motorcycles Buell Support forever.

and back in witha fresh rear tyre — bij Twin Motorcycles Buell Support forever.
