9-5-2018, 1125cr TLC, small check XB12Sx

11-10-2018 - What did we do Today: 9-5-2018, Buell 1125CR Tlc, small check XB12SX

on with the 1125CR running warm for oil drain — bijTwin Motorcycles Buell Support forever.

i will take off this cable :-)

and lock the throttle bodies other wise in high vacuum the butterflies will move it self

drain right — bij Twin Motorcycles Buell Support forever.

drain left carefull this come out with a flow — bij Twin Motorcycles Buell Support forever.

oil filter cover ? wtf happend here.. oil filter collapt — bij Twin Motorcycles Buell Support forever.

the top cover has come loose and oil pressure crushed it ? — bij Twin Motorcycles Buell Support forever.

it is a rotax filter — bij Twin Motorcycles Buell Support forever.

will i'm going to mount a K&N — bij Twin Motorcycles Buell Support forever.

drain plug has allot debris.. but i do not know how far this is , will clean it — bij Twin Motorcycles Buell Support forever.

and use a new washer — bij Twin Motorcycles Buell Support forever.

with a little hydroseal the plug in — bij Twin Motorcycles Buell Support forever.

losening the exhaust — bij Twin Motorcycles Buell Support forever.

the one bolt with nut — bij Twin Motorcycles Buell Support forever.

and the one bolt that needs a ball joint head — bijTwin Motorcycles Buell Support forever.

:-) new and old nut — bij Twin Motorcycles Buell Support forever.

as it is easy. now i take the oil sif cover off to check and clean — bij Twin Motorcycles Buell Support forever.

was needed , i see rotor bead and oil filter stuf — bijTwin Motorcycles Buell Support forever.

take out the siff with a needle nose , clean and push it back in — bij Twin Motorcycles Buell Support forever.

my 10 o'clock apointment checl up xb12SX — bijTwin Motorcycles Buell Support forever.

is hot already.. let it run and drain right away — bijTwin Motorcycles Buell Support forever.

right side covers of to check the belt — bij Twin Motorcycles Buell Support forever.

oil filter replacement — bij Twin Motorcycles Buell Support forever.

rear wheel loose while a 2010 model.. i still like to check it — bij Twin Motorcycles Buell Support forever.

wheel bearings ok — bij Twin Motorcycles Buell Support forever.

belt ok — bij Twin Motorcycles Buell Support forever.

wheel back in and oil in — bij Twin Motorcycles Buell Support forever.

checking the primairy chain. was a little tight — bijTwin Motorcycles Buell Support forever.

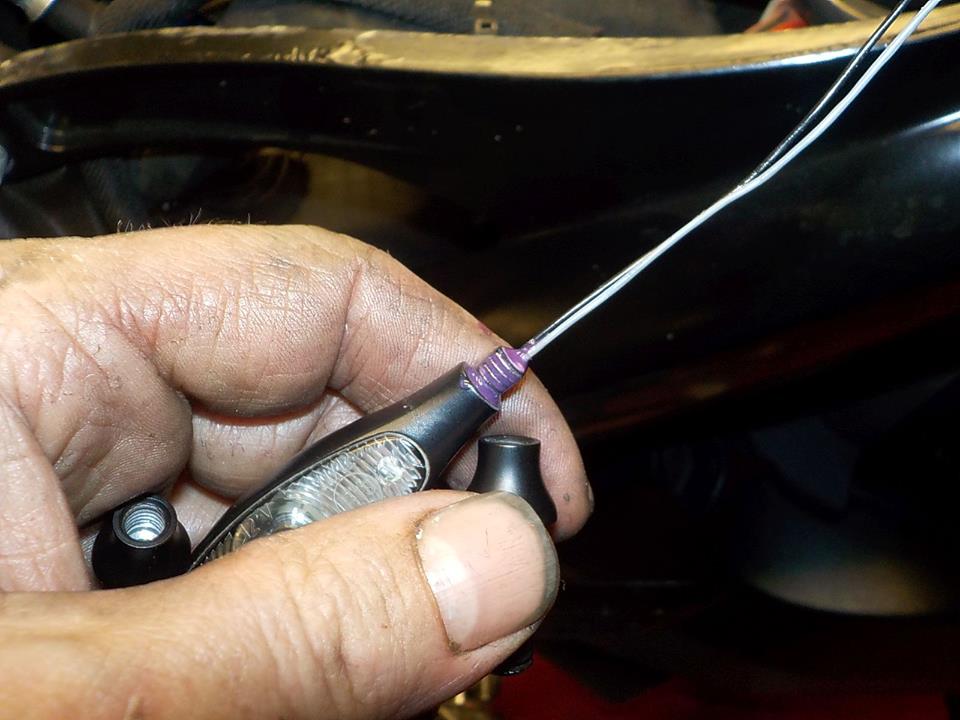

moving up .. the indicator lights need new stems — bij Twin Motorcycles Buell Support forever.

on the kellermann lights these are replaceable — bijTwin Motorcycles Buell Support forever.

old one off — bij Twin Motorcycles Buell Support forever.

and new one on.. ligt grade loctite — bij Twin Motorcycles Buell Support forever.

as it happened more.. we are going to mount riged mounts — bij Twin Motorcycles Buell Support forever.

back on and making it nice with heat shrink tube — bij Twin Motorcycles Buell Support forever.

front end check — bij Twin Motorcycles Buell Support forever.

wheel bearings are ok — bij Twin Motorcycles Buell Support forever.

brake fluid change front — bij Twin Motorcycles Buell Support forever.

and rear — bij Twin Motorcycles Buell Support forever.

letter here warm up to set the oil level, and test ride :-) — bij Twin Motorcycles Buell Support forever.

1125 Cr as we are going to mount a Superbike conversion kit.. i drain the brake and clutch fluid — bij Twin Motorcycles Buell Support forever.

and take the front wheel out — bij Twin Motorcycles Buell Support forever.

front forks out — bij Twin Motorcycles Buell Support forever.

screw that will not play nice — bij Twin Motorcycles Buell Support forever.

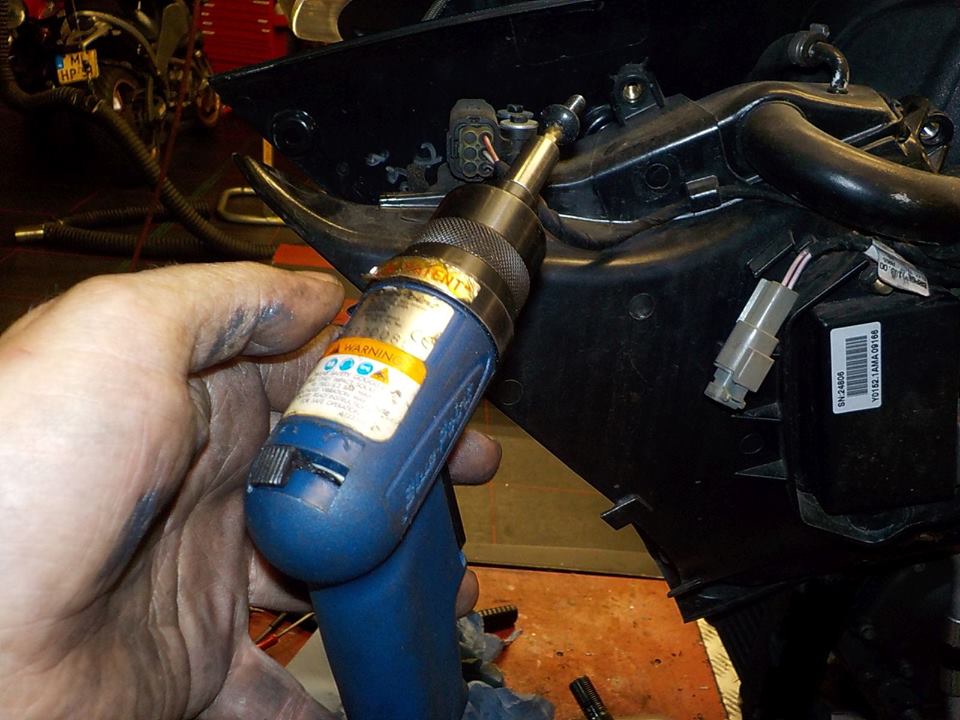

with my little prrr airgun helps to jolt the crew, one came loose — bij Twin Motorcycles Buell Support forever.

the lower one was also not playing — bij Twin Motorcycles Buell Support forever.

needed some more turning. and the bushing came out.. will glue this back in — bij Twin Motorcycles Buell Support forever.

front stand mounted and light added to see what i'm doing — bij Twin Motorcycles Buell Support forever.

rear o2 sensor conenctor loose — bij Twin Motorcycles Buell Support forever.

engine bolts out — bij Twin Motorcycles Buell Support forever.

ignition cover plug out to rotate the engine — bijTwin Motorcycles Buell Support forever.

engine down — bij Twin Motorcycles Buell Support forever.

mnnn coil connector lock tab is broken of.. — bijTwin Motorcycles Buell Support forever.

rusty coil > — bij Twin Motorcycles Buell Support forever.

plug is also rusty.. strange ? very hard to get to this— bij Twin Motorcycles Buell Support forever.

anyway cover of — bij Twin Motorcycles Buell Support forever.

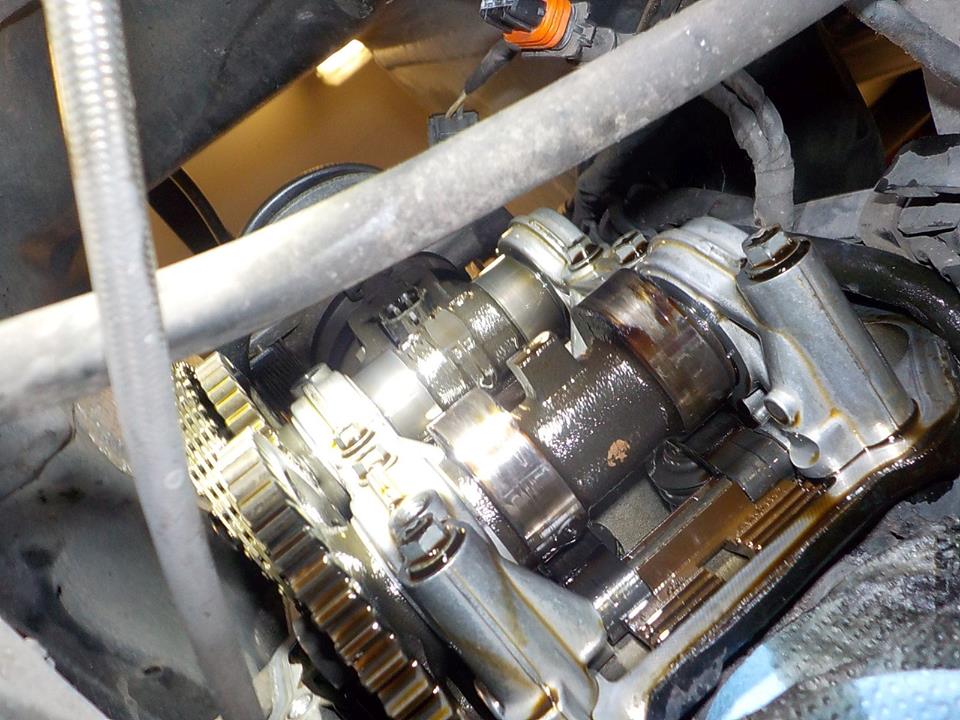

an check the valve lash — bij Twin Motorcycles Buell Support forever.

exhaus cam looks not ok.. wear sould not be seen— bij Twin Motorcycles Buell Support forever.

ok.. something is not ok.. ... 0.50 mm / .020 inch that is way to much — bij Twin Motorcycles Buell Support forever.

not happy with the valve fingers.. as it looks the cams have grinded a detent in theme — bij Twin Motorcycles Buell Support forever.

has a use one to see.. flat and curve one line — bijTwin Motorcycles Buell Support forever.

these look worn in .. very bad things can happen here when these fingers break — bij Twin Motorcycles Buell Support forever.
