25-4-2018, XB12XT belt, X1 gearbox, XB diagnose

24-8-2018 - 25-4-2018: Buell XB12XT belt and tensioner, Buell X1 gearbox shaft, belt and clutch, Buell XB12 troubles diagnostics

world traveler Uly in for new belt and spring loaded tensioner so the belt will live longer — bij Twin Motorcycles Buell Support forever.

pully cover needs to come off — bij Twin Motorcycles Buell Support forever.

some senanigans during mounting.... idler pully is running on the straps... will adres this — bij Twin Motorcycles Buell Support forever.

he.. than is not expected — bij Twin Motorcycles Buell Support forever.

bolt missing .. pinch bolt rear axle — bij Twin Motorcycles Buell Support forever.

loosening the case rack mounting point on the pegs— bij Twin Motorcycles Buell Support forever.

and peg bracket loose — bij Twin Motorcycles Buell Support forever.

axle was already loose... mnnn... not good — bijTwin Motorcycles Buell Support forever.

rear axle about 15 turns loose ,the axle needs to show the thin middle section — bij Twin Motorcycles Buell Support forever.

swing arm brace out — bij Twin Motorcycles Buell Support forever.

grrrr... the bracket is corroded on the studs — bijTwin Motorcycles Buell Support forever.

some nasty words and tire iron helps to take it off ... you see the hole is corrosion from the studs — bijTwin Motorcycles Buell Support forever.

wheel of the original bracket — bij Twin Motorcycles Buell Support forever.

and in the spring loaded tensioner — bij Twin Motorcycles Buell Support forever.

the 2 thick rings in the kit on the studs , to give it space to the exhaust bracket — bij Twin Motorcycles Buell Support forever.

good clearnace nie — bij Twin Motorcycles Buell Support forever.

some neverseas on the studs and tensioner and belt on — bij Twin Motorcycles Buell Support forever.

now first the brace back in the swing arm — bij Twin Motorcycles Buell Support forever.

and tighten the rear axle 66 Nm — bij Twin Motorcycles Buell Support forever.

and new pinch bolt in so the reasr off the bike feel not as loose, she is reasdy for 10K this year — bijTwin Motorcycles Buell Support forever.

X1 with the 5e gear mainshaft bearings sticking out— bij Twin Motorcycles Buell Support forever.

we also need to change the belt, so some support for the engine / frame — bij Twin Motorcycles Buell Support forever.

pully of and spacer out — bij Twin Motorcycles Buell Support forever.

loosening the detachable frame piece — bij Twin Motorcycles Buell Support forever.

ans slode the out — bij Twin Motorcycles Buell Support forever.

missing teeth — bij Twin Motorcycles Buell Support forever.

new belt on — bij Twin Motorcycles Buell Support forever.

drive gear pressed inside , c-clip loose — bij Twin Motorcycles Buell Support forever.

removing the crappy clutch cable — bij Twin Motorcycles Buell Support forever.

mnnn ok we drained the gearbox al ready , now again oil inside — bij Twin Motorcycles Buell Support forever.

the crank oil seal is leaking . i will replace this one to , will give problems when the customer starts to ride with it ( oil spitting on the rear tire from the gearbox breather — bij Twin Motorcycles Buell Support forever.

new bearing in — bij Twin Motorcycles Buell Support forever.

new needle bearings in the 5e gear — bij Twin Motorcycles Buell Support forever.

and pulling the 5e gear in the bearings — bij Twin Motorcycles Buell Support forever.

quid ring and oil seal can be mounted — bij Twin Motorcycles Buell Support forever.

cleaning the spacer before you put it back in — bijTwin Motorcycles Buell Support forever.

mounting front pully.... mmnnnn that feels loose .. the teeth are almost worn out fully — bij Twin Motorcycles Buell Support forever.

no problem... new front pully is not to expencive from us — bij Twin Motorcycles Buell Support forever.

crank seal out.. rubber has become very hard — bijTwin Motorcycles Buell Support forever.

stamo i use to mount the seals — bij Twin Motorcycles Buell Support forever.

gearbox back in the bike — bij Twin Motorcycles Buell Support forever.

tighen with red loctite — bij Twin Motorcycles Buell Support forever.

the upgraded detent plate, shifts better — bij Twin Motorcycles Buell Support forever.

the pins in the shifter drum you can check if there the same lenght.. and outer wise tap the longest one in — bij Twin Motorcycles Buell Support forever.

so the detent place runs flar in yout gear — bij Twin Motorcycles Buell Support forever.

adjusting the shifter drilbit 3 mm in the hole and space to the top finger — bij Twin Motorcycles Buell Support forever.

primairy drive on — bij Twin Motorcycles Buell Support forever.

use red loctite on these nuts — bij Twin Motorcycles Buell Support forever.

soaking the new clutch plates in oil — bij Twin Motorcycles Buell Support forever.

mounting the cover.. put your hand under to pusht the chain on the tensioner shoo — bij Twin Motorcycles Buell Support forever.

new clutch cable on , screw it in straight — bij Twin Motorcycles Buell Support forever.

performace clutch with extra plate.. use redline D4 , notmal thick Formula plug will give problems — bijTwin Motorcycles Buell Support forever.

shfter on to check the chain the chain tension — bijTwin Motorcycles Buell Support forever.

and tensioning the new belt — bij Twin Motorcycles Buell Support forever.

it will run a little wider at first, so tension a little tight for now — bij Twin Motorcycles Buell Support forever.

next job.. leaking fork seal — bij Twin Motorcycles Buell Support forever.

front axle nut loose ( also very loose ) — bij Twin Motorcycles Buell Support forever.

mnnn these bolts are not tight.. this is way to easy — bij Twin Motorcycles Buell Support forever.

a short look at the bolt.. means pulled the thread out— bij Twin Motorcycles Buell Support forever.

will clean these anyway — bij Twin Motorcycles Buell Support forever.

so next job also ready — bij Twin Motorcycles Buell Support forever.

if you loosen the front disk , you can take of the president — bij Twin Motorcycles Buell Support forever.

front wheel bearings are also done — bij Twin Motorcycles Buell Support forever.

frotn fork out — bij Twin Motorcycles Buell Support forever.

cleaning the dirst off — bij Twin Motorcycles Buell Support forever.

and top cal loose — bij Twin Motorcycles Buell Support forever.

out — bij Twin Motorcycles Buell Support forever.

and some isolation tape for protection on teh new seals — bij Twin Motorcycles Buell Support forever.

adressing the caliper bolt problem . drilling to OS for time sert repair — bij Twin Motorcycles Buell Support forever.

chamfer in — bij Twin Motorcycles Buell Support forever.

and treading — bij Twin Motorcycles Buell Support forever.

insert tool .. i use loctite to bind the seals to this — bij Twin Motorcycles Buell Support forever.

repaired — bij Twin Motorcycles Buell Support forever.

front wheel back in carefull on the spacers — bijTwin Motorcycles Buell Support forever.

wheel in with new rubber — bij Twin Motorcycles Buell Support forever.

and running warm for test rit — bij Twin Motorcycles Buell Support forever.

xb9s... no charge ? — bij Twin Motorcycles Buell Support forever.

mhh ok battery was already replaced — bij Twin Motorcycles Buell Support forever.

first suspect... still on — bij Twin Motorcycles Buell Support forever.

AC test , to seen what happends — bij Twin Motorcycles Buell Support forever.

checking the fase nu it is running — bij Twin Motorcycles Buell Support forever.

eeehhhh on all 3 face.. 3 volts charging — bij Twin Motorcycles Buell Support forever.

checking the stator. fase to fase ... looks like the stator is broken — bij Twin Motorcycles Buell Support forever.

test the VR in the diode check position on your meter — bij Twin Motorcycles Buell Support forever.

positife on the feed and check the fase .. al 3 working .. so call the customer — bij Twin Motorcycles Buell Support forever.

xb12sx 2010 problems — bij Twin Motorcycles Buell Support forever.

first need to fix some stuff before we can make a diagnose ,, ground cable is loose — bij Twin Motorcycles Buell Support forever.

and ignition switch is bad.. sometimes working , some times not working — bij Twin Motorcycles Buell Support forever.

we going to replace the ignition swith — bij Twin Motorcycles Buell Support forever.

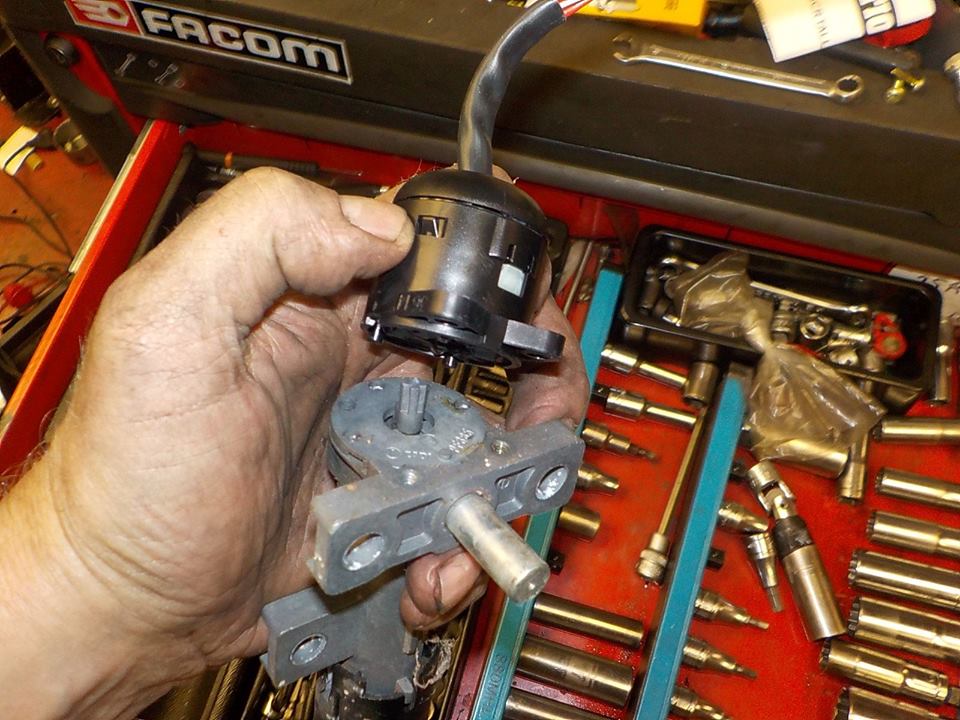

contact lock out — bij Twin Motorcycles Buell Support forever.

and new switch on — bij Twin Motorcycles Buell Support forever.

securit bolts ( T45 with hole ) — bij Twin Motorcycles Buell Support forever.

so now ..check why no run... fuel pump fuses are spitting out — bij Twin Motorcycles Buell Support forever.

and error codes — bij Twin Motorcycles Buell Support forever.

little try with 15a , pump keeps running now — bijTwin Motorcycles Buell Support forever.

but more error codes.. bike needs at first a new fuel pump — bij Twin Motorcycles Buell Support forever.
