13-4-2018 big inspection 1125CR belt change

14-8-2018 - What did we do today: 13-4-2018 Buell 1125CR big inspection belt change

1125 Cr from Germany in for a 20000 km check

letting here warm up to drain the oil

remvoing the panels .. air filter has been eating dirt

right side drain

left side drain plug out careful as it flows out with force

new oil filter on

drain plugs back in

and checking the rear wheel

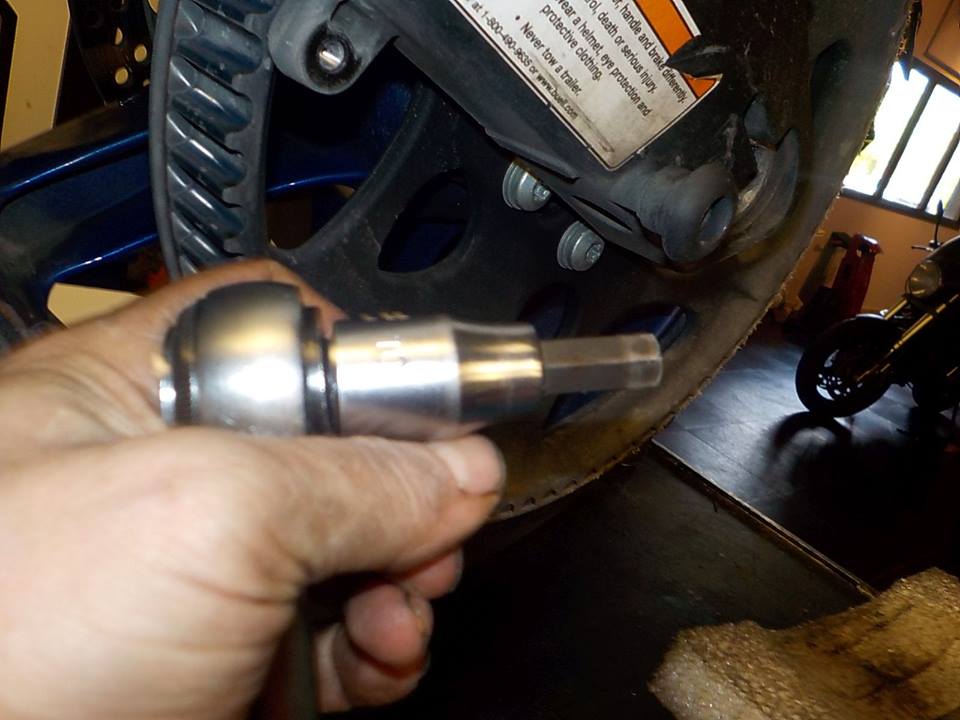

 pinch bolt is 10 mm

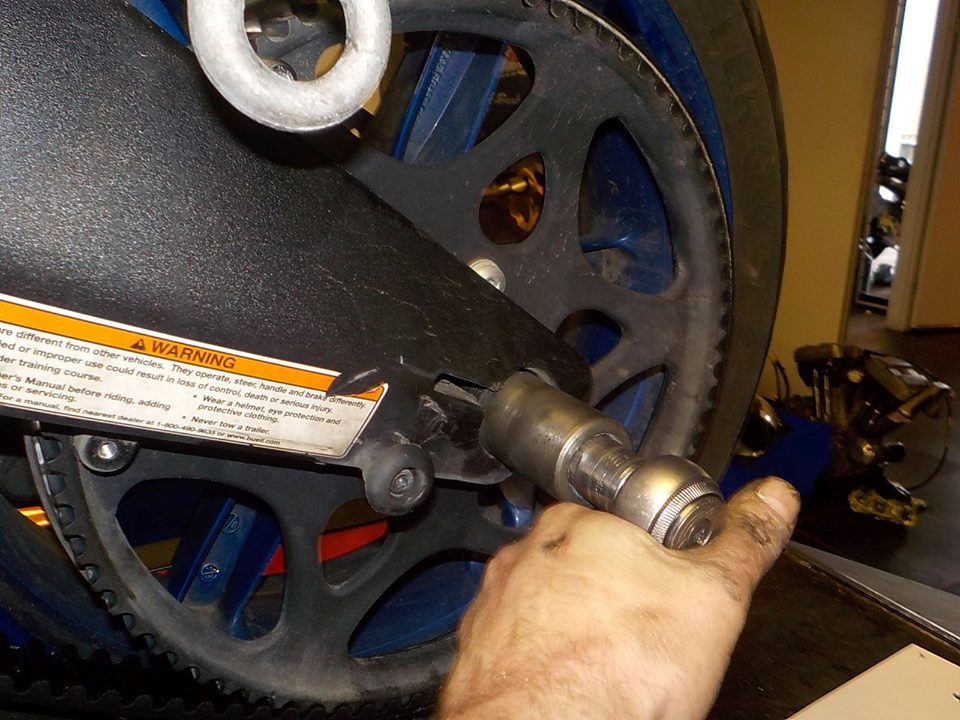

and the axle was tight... breaker bar needed

rear caliper bolts loose

i will change these pads, as they will not last long

bearing.. 20000 km in douse not feel good.. and need to replace the belt.. take no change and replace the bearings

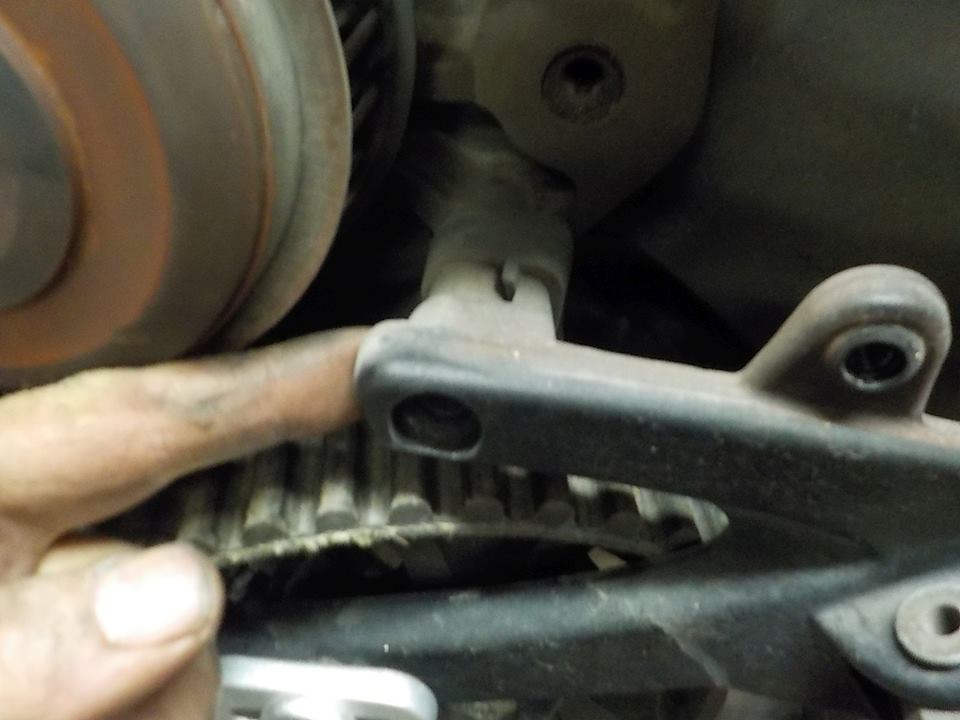

belt is starting to wear.. customer want no change.. so replace now

remove the swing arm piece

notch in the front pully to let the belt out

footpeg bracket bolts need to come out

and this one

to turn the footpeg assembly and swap the belt

new one on

new bearings

now first the swing arm piece back in

and fight the rear axle to get the wheel in.. new belts are very tight

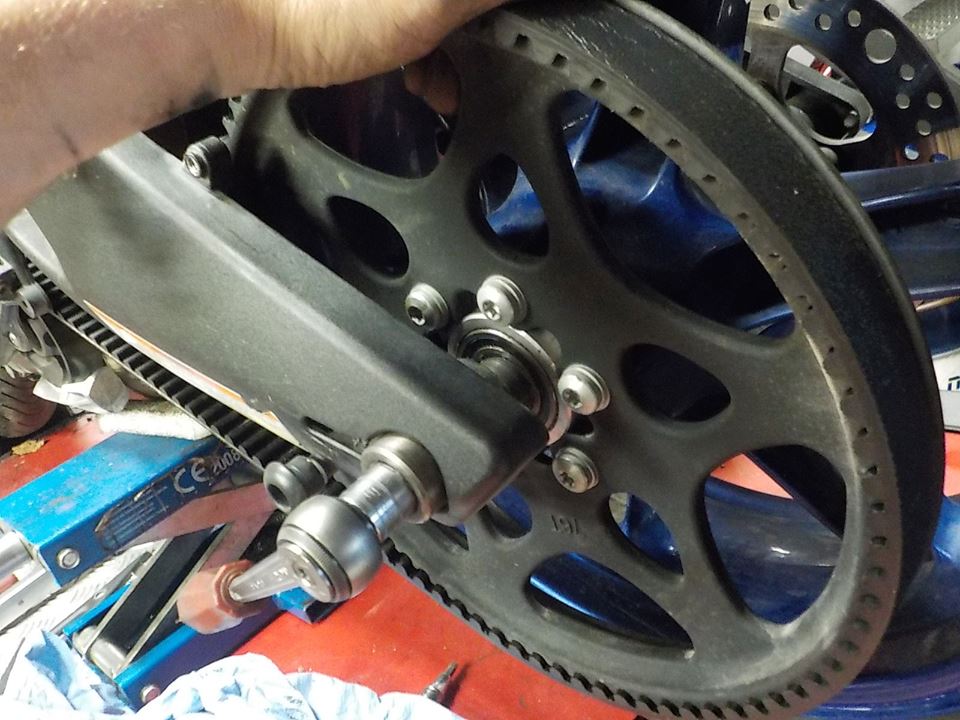

turn the wheel tightening the axle to spread the tension

old pads.. lift and push to the rear

new pads.. the spings are very tight

helps mounting to give theme a little loosening

new pads in place

and caliper mounting..

exhaust need to come of for engine rotation

first fill the oil

airfilter base plate of, i like to leave the airfilter in

so all the dirt and swallowed bugs do not get bumped in the throttle bodies

loosening the custom side pods

radiator just hangs on the little bracket

front needs to come out — bij Twin Motorcycles Buell Support forever.

front bearings are ok — bij Twin Motorcycles Buell Support forever.

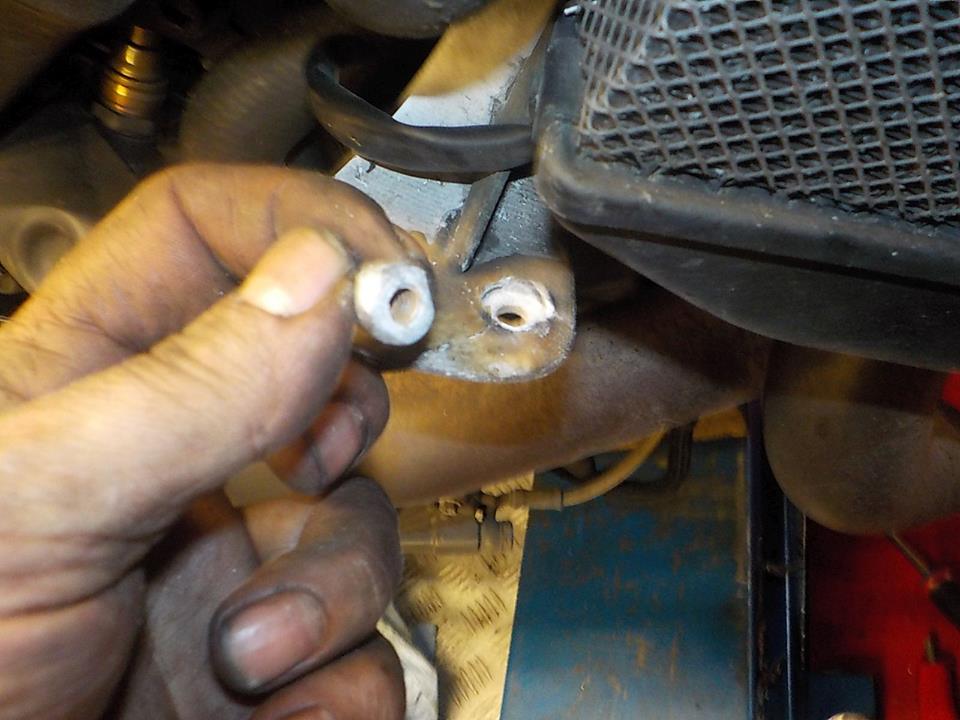

aaahhh mounting nut is loose rom the polyester and is turning with the screw — bij Twin Motorcycles Buell Support forever.

3 hand job holidng pliers.. turning the screw and taking pictutes — bij Twin Motorcycles Buell Support forever.

but i got theme loose... could turn out to a nightmare job — bij Twin Motorcycles Buell Support forever.

as 1 off the top ones also did come loose — bij Twin Motorcycles Buell Support forever.

front legs out — bij Twin Motorcycles Buell Support forever.

nice painted caliper supported on the front mount — bij Twin Motorcycles Buell Support forever.

lower airduct loose — bij Twin Motorcycles Buell Support forever.

radiators loose, and clutch lever loose to give the line more room — bij Twin Motorcycles Buell Support forever.

before rotating the engine loosen the rear O2 sensor connector — bij Twin Motorcycles Buell Support forever.

and pull the O2 sensor wire out so this has room to move — bij Twin Motorcycles Buell Support forever.

middel bolts out — bij Twin Motorcycles Buell Support forever.

ingition cover out — bij Twin Motorcycles Buell Support forever.

and timing plug out .. it will spil out some oil — bijTwin Motorcycles Buell Support forever.

flash light attact to the stand. and engine down — bijTwin Motorcycles Buell Support forever.

front plug out — bij Twin Motorcycles Buell Support forever.

looking good ( old plug ) — bij Twin Motorcycles Buell Support forever.

setting gap on the new plug — bij Twin Motorcycles Buell Support forever.

napkin under the vslve cover — bij Twin Motorcycles Buell Support forever.

and covr removed — bij Twin Motorcycles Buell Support forever.

to check the valve lash , these are still perfect in range as expected we set the lash 20000 km ago — bij Twin Motorcycles Buell Support forever.

font coil in — bij Twin Motorcycles Buell Support forever.

i did not find the coil connector lock very secure.. so secured with ziptie.. way to much work to connect this when it pops off — bij Twin Motorcycles Buell Support forever.

rear valve and plugs are ok — bij Twin Motorcycles Buell Support forever.

engine up and bolt in — bij Twin Motorcycles Buell Support forever.

start tightening right side ( engine to the frame with out sliding spacers ) — bij Twin Motorcycles Buell Support forever.

expoxy 2k to fix the nuts tot he body work — bij Twin Motorcycles Buell Support forever.

oil changed and forks back in — bij Twin Motorcycles Buell Support forever.

ignition cover plug in — bij Twin Motorcycles Buell Support forever.

front wheel back in — bij Twin Motorcycles Buell Support forever.

bumping the legs a few times and tighten the pinch bolts — bij Twin Motorcycles Buell Support forever.

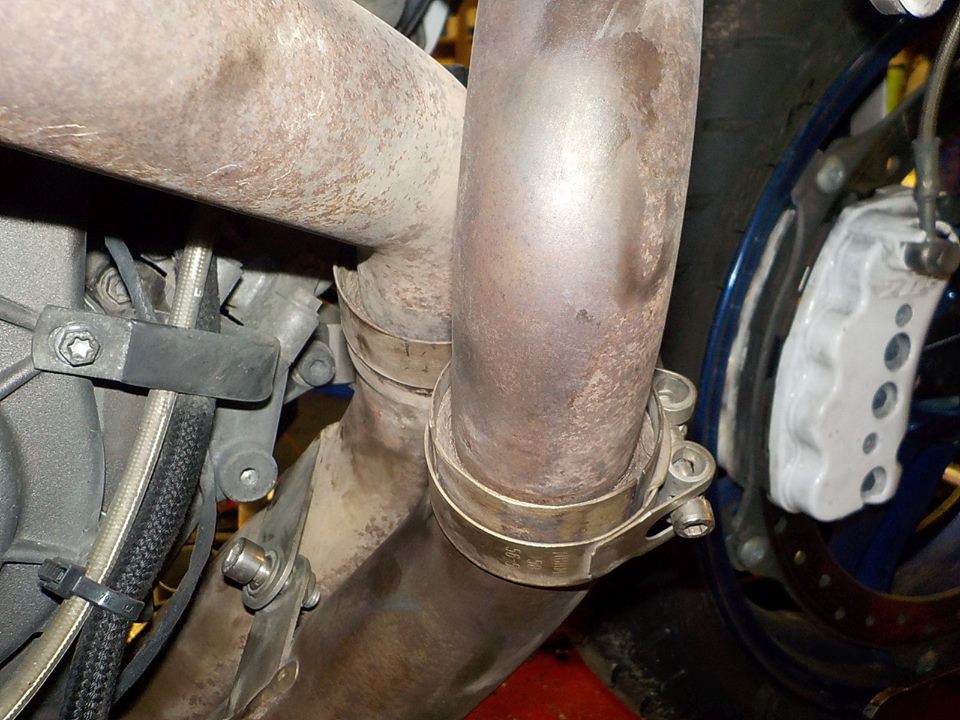

exhaust back on — bij Twin Motorcycles Buell Support forever.

front wire mesh gaskets are fragile — bij Twin Motorcycles Buell Support forever.

as i could not get the pipes in good.. loosened the mullfer , and mounted the pipes first — bij Twin Motorcycles Buell Support forever.

cleaning the air filter — bij Twin Motorcycles Buell Support forever.

olied and mounted — bij Twin Motorcycles Buell Support forever.

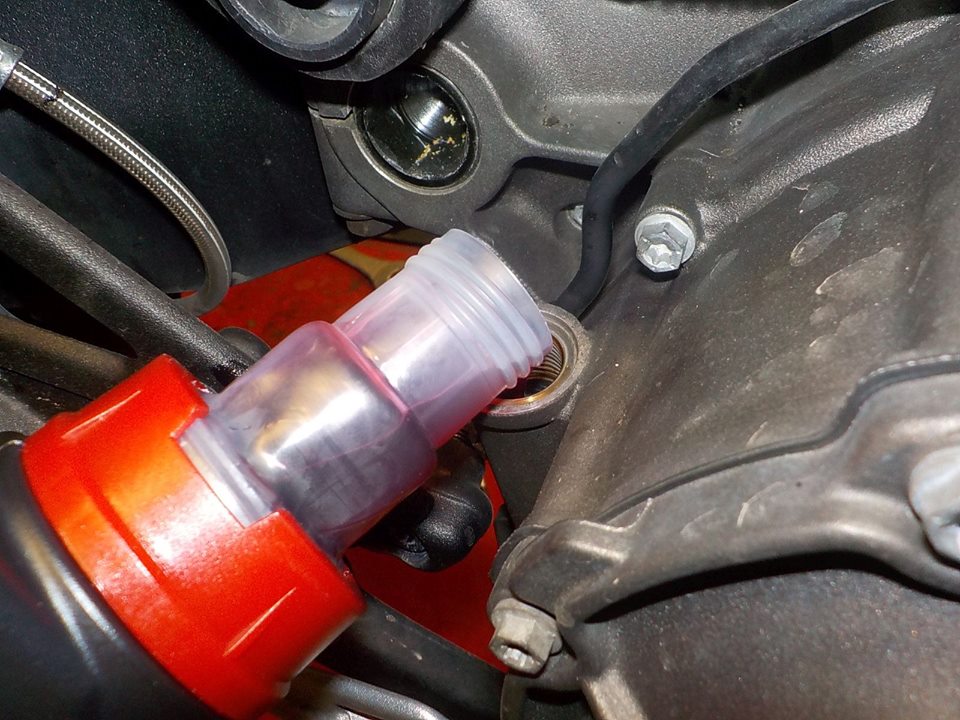

clutch fluid replacement — bij Twin Motorcycles Buell Support forever.

and fresh brake fluid — bij Twin Motorcycles Buell Support forever.

don't forget the rear — bij Twin Motorcycles Buell Support forever.

some protection from spilling — bij Twin Motorcycles Buell Support forever.

warming up — bij Twin Motorcycles Buell Support forever.

for oli level check — bij Twin Motorcycles Buell Support forever.

hold mode and toggle to get to the service menu — bij Twin Motorcycles Buell Support forever.

hit mode to you get service counter , and press toggle to reset — bij Twin Motorcycles Buell Support forever.

and service interval is set back to 10000 km... test ride :-) — bij Twin Motorcycles Buell Support forever.
