12-4-2018 XB9Sx seals, fuelmap XB12X grips XB12Scg

9-8-2018 - What did we do today: 12-4-2018 Buell XB9Sx intake seals, fuel mapping, Buell ZB12X tires, XB12X grip change, Buell XB12scg not starting

on with the intake seals on the Xb9Sx — bij Twin Motorcycles Buell Support forever.

cover of. fuel overflow douse not have to be removed.. you can slide it to the side

airbox of and top tierod loose — bij Twin Motorcycles Buell Support forever.

connectors and fuel line loose — bij Twin Motorcycles Buell Support forever.

left footpeg bracket plate loose — bij Twin Motorcycles Buell Support forever.

freaking shit clutch cable... no adjustment — bij Twin Motorcycles Buell Support forever.

so the only way to adjust is here .. need to loosen the mechanisme — bij Twin Motorcycles Buell Support forever.

to even take the wire out the handle — bij Twin Motorcycles Buell Support forever.

exhaust supported — bij Twin Motorcycles Buell Support forever.

nice XB12SS in for fuel mapping to have the most fun with the new exhaust — bij Twin Motorcycles Buell Support forever.

easy job.. runs nice :-) — bij Twin Motorcycles Buell Support forever.

my 12 oclock is in for tyre change — bij Twin Motorcycles Buell Support forever.

rear caliper of — bij Twin Motorcycles Buell Support forever.

and axle out — bij Twin Motorcycles Buell Support forever.

ne tyre on cleaning off the old weight tape — bij Twin Motorcycles Buell Support forever.

axle back in , wheel bearings checked — bij Twin Motorcycles Buell Support forever.

66 Nm and tighten the pinch bolt — bij Twin Motorcycles Buell Support forever.

time for the front — bij Twin Motorcycles Buell Support forever.

pinch bolt loose — bij Twin Motorcycles Buell Support forever.

fender of — bij Twin Motorcycles Buell Support forever.

and loosen the caliper bolts — bij Twin Motorcycles Buell Support forever.

wheel axle out and wheel free to remove the caliper— bij Twin Motorcycles Buell Support forever.

front axle to 55 Nm — bij Twin Motorcycles Buell Support forever.

and caliper bolts to 50 Nm with a drop of loctite — bijTwin Motorcycles Buell Support forever.

bump the front a few times and tighen the pinch bolts — bij Twin Motorcycles Buell Support forever.

new grips on the Uly from Hans — bij Twin Motorcycles Buell Support forever.

with some luck you can remove the old grips , other wise you need to cut theme of — bij Twin Motorcycles Buell Support forever.

new ticker grips on.. some glue to hold theme in place — bij Twin Motorcycles Buell Support forever.

holes made for the barend mirror plugs — bij Twin Motorcycles Buell Support forever.

with a sanding drum on a dremel.. works very good to make the hole — bij Twin Motorcycles Buell Support forever.

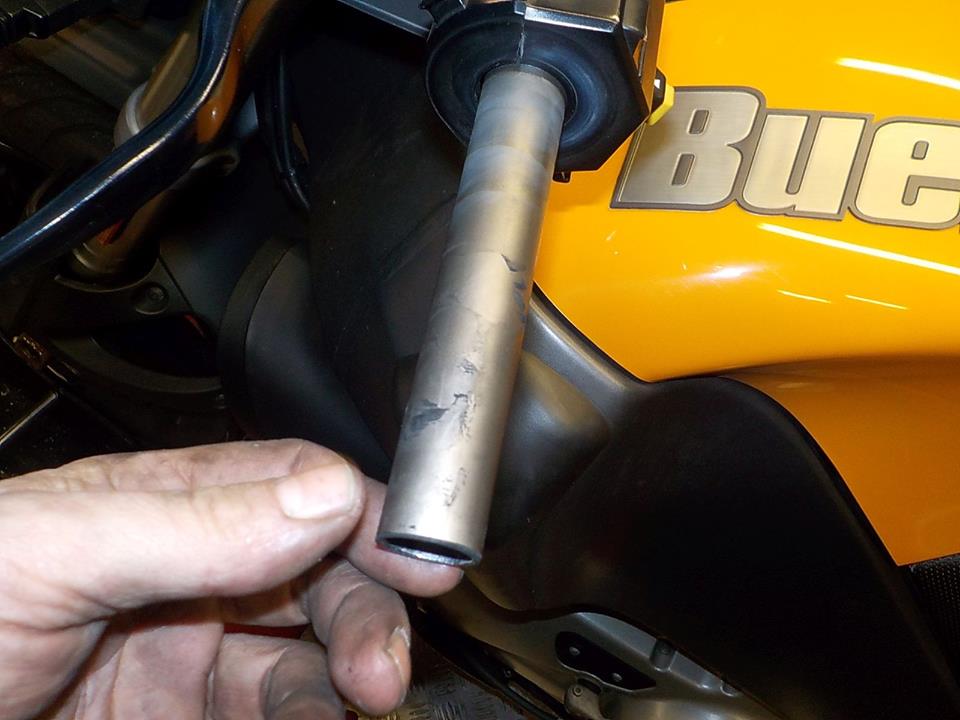

throttle side , leave the cable tube on — bij Twin Motorcycles Buell Support forever.

and also pushing it back on the tube , — bij Twin Motorcycles Buell Support forever.

back to the sx engine down — bij Twin Motorcycles Buell Support forever.

engine down remove the connectors — bij Twin Motorcycles Buell Support forever.

mnnn that douse not help. missing side support bolt— bij Twin Motorcycles Buell Support forever.

throttle bodie screws out — bij Twin Motorcycles Buell Support forever.

and clean off the heads — bij Twin Motorcycles Buell Support forever.

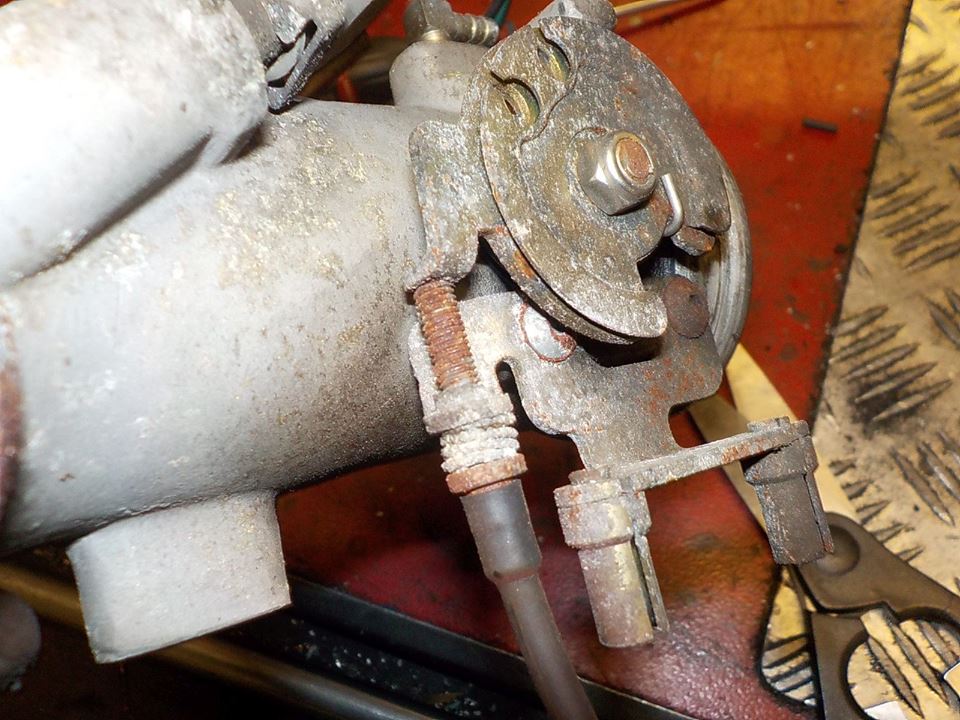

rusty idle screw — bij Twin Motorcycles Buell Support forever.

little cleaning and new seals, and lube the idle screw— bij Twin Motorcycles Buell Support forever.

treads are 1/4 unc in the trottle bodie any put one in.. your gaskets will like you ( and life longer ) — bijTwin Motorcycles Buell Support forever.

engine back up and front mount to 66 Nm — bij Twin Motorcycles Buell Support forever.

covers back on — bij Twin Motorcycles Buell Support forever.

first gen Prosieries buell XB carbon ? , spacers on the covers — bij Twin Motorcycles Buell Support forever.

mnn i know this screw ( was front fender ) but acutaly this is a throttle bodie screw that was missing — bij Twin Motorcycles Buell Support forever.

top side conencted — bij Twin Motorcycles Buell Support forever.

and that is 1 ... bleeding fingers on the wire ends — bij Twin Motorcycles Buell Support forever.

flyscreen of to route the cables — bij Twin Motorcycles Buell Support forever.

next to the wire harnedd — bij Twin Motorcycles Buell Support forever.

and that is number 2 .. throttle was sticking — bijTwin Motorcycles Buell Support forever.

throttle cables replaced , airbox base back in place after some cleaning — bij Twin Motorcycles Buell Support forever.

wil takep this useles cable to teh wire loom so it can not harm — bij Twin Motorcycles Buell Support forever.

resetting the tps — bij Twin Motorcycles Buell Support forever.

brake fluid and test ride :-) — bij Twin Motorcycles Buell Support forever.

no start — bij Twin Motorcycles Buell Support forever.

ground cable bad solution.. was again loose , dham needed to fix this better during the service — bijTwin Motorcycles Buell Support forever.

original postion of the gound cable was used to put a alarm in — bij Twin Motorcycles Buell Support forever.

even after 1 night on the charger.. the battery is bad— bij Twin Motorcycles Buell Support forever.

crap alarm , half the wires are not connected — bijTwin Motorcycles Buell Support forever.

so easy out — bij Twin Motorcycles Buell Support forever.

and i will put this heated grip switch over the contact switch — bij Twin Motorcycles Buell Support forever.
