6-4-2018 XB12Scg belt tensioner, XB12X ECM, XB12R

27-7-2018 - 6-4-2018 Buell XB12 Scg belt tensioner, steering damper, Buell Ulysses ECM problem , Buell XB12R engine

same owner 2 bikes , a new one and older model XB , some parts are going to put from old to the new — bij Twin Motorcycles Buell Support forever.

the older one had nice pully cover , so this will go off— bij Twin Motorcycles Buell Support forever.

and mount it on the new one with belt tensioner — bij Twin Motorcycles Buell Support forever.

pully off — bij Twin Motorcycles Buell Support forever.

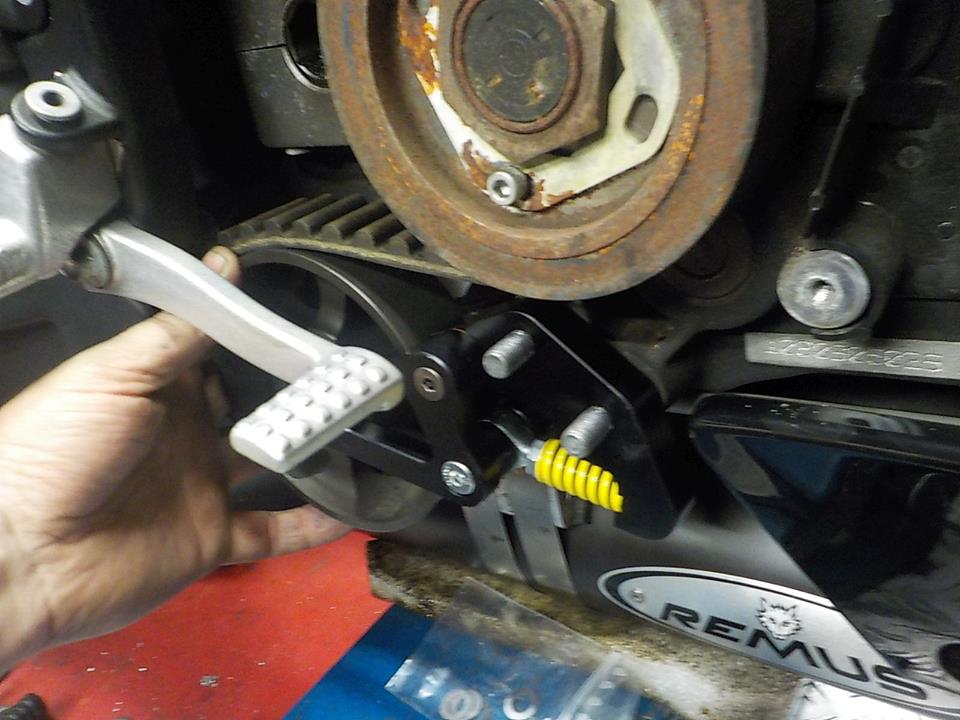

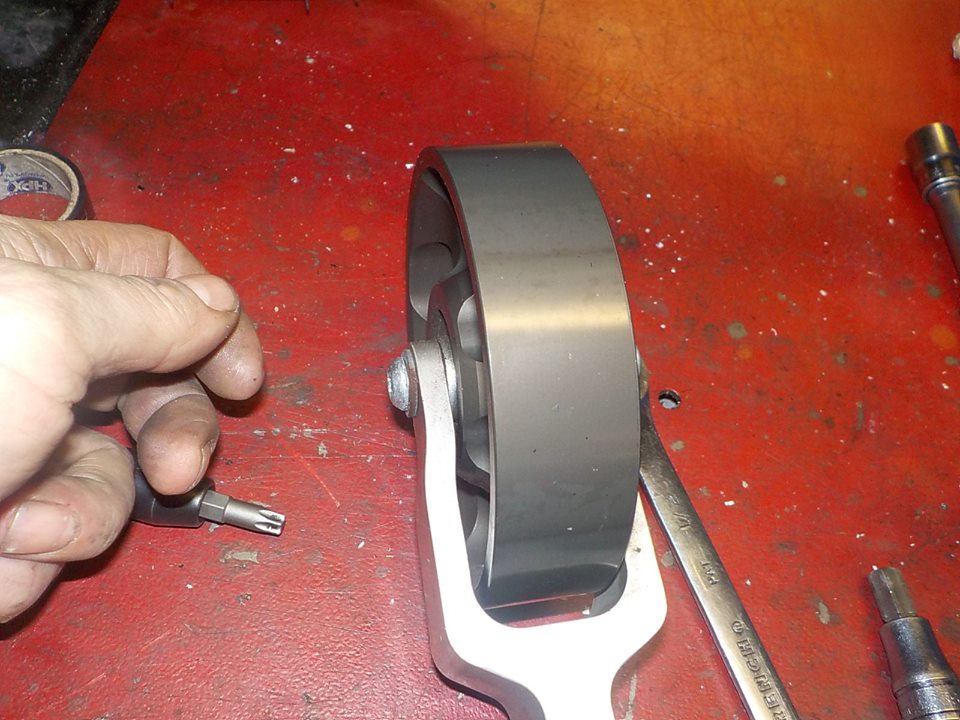

and in spring loaded tensioner , — bij Twin Motorcycles Buell Support forever.

belt back to tension and axle tight — bij Twin Motorcycles Buell Support forever.

the inside over need to go on.. a open pully cover with the rusty pully is not apeeling — bij Twin Motorcycles Buell Support forever.

mnnn the cover plate comes from the old — bij Twin Motorcycles Buell Support forever.

but to fit to the new i needed to skimm off 0.20 mm from the cover as the resess in the pully is smaller ? never noticed this before ? — bij Twin Motorcycles Buell Support forever.

with toughup paint the wheel damage.. transluent blue — bij Twin Motorcycles Buell Support forever.

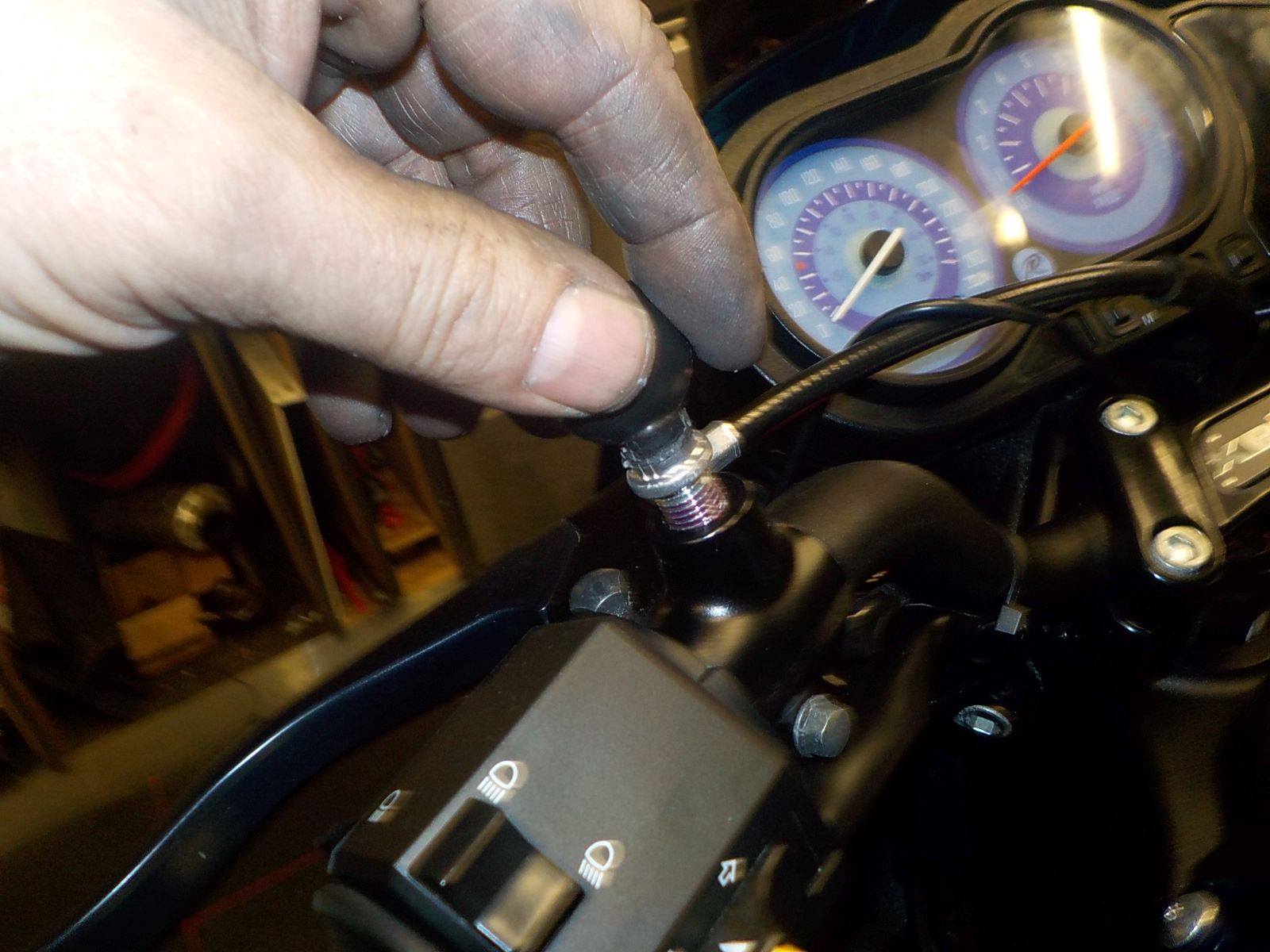

navigation bal in the mirror hole — bij Twin Motorcycles Buell Support forever.

and the steering damper from the old bike — bijTwin Motorcycles Buell Support forever.

mounting plate of — bij Twin Motorcycles Buell Support forever.

and on the new bike the handle bar plate of — bijTwin Motorcycles Buell Support forever.

little swap — bij Twin Motorcycles Buell Support forever.

mnnn ok the steering damper is not made for translucent covers... i grinded the spacer shorter so it douse not stick out ( left the foam washer under the box ) — bij Twin Motorcycles Buell Support forever.

and mounting this , to check if the damper can take this , as i know the owner only puts a ligt setting on , this will do , for heavy / hard setting on the steering damper this is to weak — bij Twin Motorcycles Buell Support forever.

ugly reflectors off — bij Twin Motorcycles Buell Support forever.

old tags removed.. did find one from our own.. — bijTwin Motorcycles Buell Support forever.

and tailbag on , she is ready for the road , with here new owner — bij Twin Motorcycles Buell Support forever.

Uly problems.. came for fuel mapping.. but in basic with stock exhaust the bike should run ok... not like this, so what is wrong — bij Twin Motorcycles Buell Support forever.

ok neutral light is missing — bij Twin Motorcycles Buell Support forever.

very low afv ... very high suspect will the at first the ecm — bij Twin Motorcycles Buell Support forever.

lets first do the neutral switch — bij Twin Motorcycles Buell Support forever.

better — bij Twin Motorcycles Buell Support forever.

belt back on and tightened — bij Twin Motorcycles Buell Support forever.

a little pushing and pulling on the connector while the bike was running.. and the bike stopped stuttering .. testing with other ecm — bij Twin Motorcycles Buell Support forever.

and she is smootching nice again — bij Twin Motorcycles Buell Support forever.

error code come on with new ecm ..exhaust valve .. yep this is missing , and put in the open position looking at the cable.. i will remove the error code from the software — bij Twin Motorcycles Buell Support forever.

hold your finger under this screw to hold the nut in place — bij Twin Motorcycles Buell Support forever.

will make the ecm mounting so this cannot happen again.. bending the mounting tap flat — bij Twin Motorcycles Buell Support forever.

and position the ecm in front with some ziptie so it will nto rattle .. seat will not rest on the ecm connectors anymore — bij Twin Motorcycles Buell Support forever.

time to put the engine back in — bij Twin Motorcycles Buell Support forever.

at first still easy to do intake seal on the work bench— bij Twin Motorcycles Buell Support forever.

flanges on — bij Twin Motorcycles Buell Support forever.

frame lifted — bij Twin Motorcycles Buell Support forever.

now first the swing arm to the engine , TQ to 66 Nm— bij Twin Motorcycles Buell Support forever.

and tighten the pich bolt — bij Twin Motorcycles Buell Support forever.

engine on the flat jacks up to mount the rear mounting bolt — bij Twin Motorcycles Buell Support forever.

and for now the front mounting bolt — bij Twin Motorcycles Buell Support forever.

now easy acces to the startermotor wire — bij Twin Motorcycles Buell Support forever.

and put the neutral switch wire on — bij Twin Motorcycles Buell Support forever.

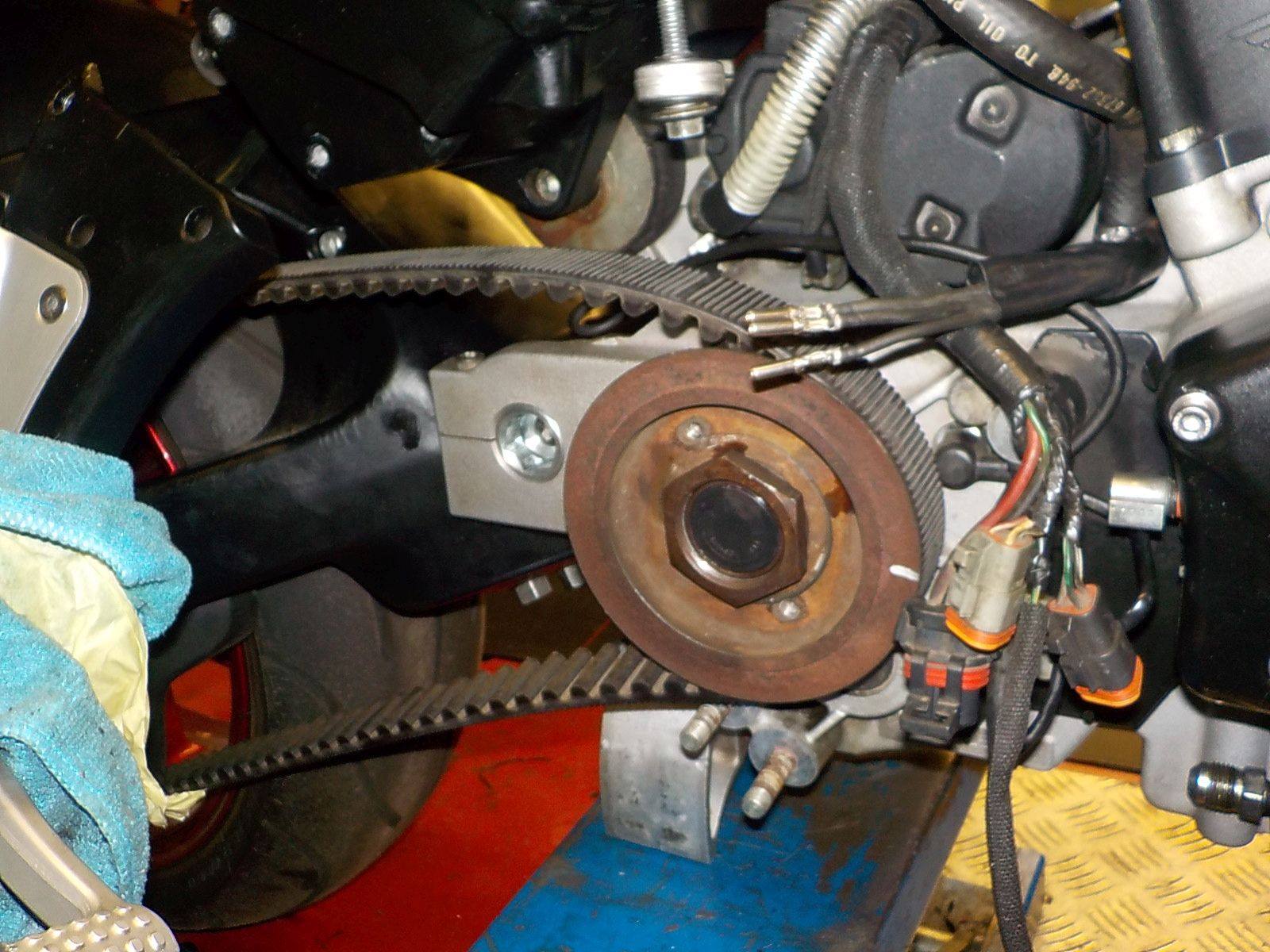

pully on — bij Twin Motorcycles Buell Support forever.

and belt mounted — bij Twin Motorcycles Buell Support forever.

cleaning out the swing arm of the most off the metal debris — bij Twin Motorcycles Buell Support forever.

after a few cleaning session about all the debirs is gone.. the oil filter will do the rest ( oil flow is from pump to cooler to filter before it enters the engine ) we need to clean out the oil cooler and lines to .. it is about impossibel to clean out the swing arm completely, but try to be as clean as posible — bijTwin Motorcycles Buell Support forever.

side stand on — bij Twin Motorcycles Buell Support forever.



and mount the cleaned oil lines first by hand — bijTwin Motorcycles Buell Support forever.





oil fitting was loose in the pump — bij Twin Motorcycles Buell Support forever.





clean and new loctite on — bij Twin Motorcycles Buell Support forever.



and hold with a counter spaner if you tighten the lines — bij Twin Motorcycles Buell Support forever.
