30-3-2018, 1190RX, XB12R, XR1200, XB12S
17-7-2018 - 30-3-2018, EBR 1190RX starter motor problem, Buell XB12R finish, spark plug insert, XR1200x Finish check up Buell XB12Sx trouble shooting
EBR 1190RX start motor problem... customer ordered 1 on ebay as the stock starter motor is way to much money — bij Twin Motorcycles Buell Support forever.
needs to go back behind there ;-) — bij Twin Motorcycles Buell Support forever.
i'm not fooling my self and check the o-ring seal on this starter before 3000 km further i need to do this again — bij Twin Motorcycles Buell Support forever.
also thin seal ring — bij Twin Motorcycles Buell Support forever.
about the same as the corroded one — bij Twin Motorcycles Buell Support forever.
i will ad a bead of silicon on the covers to watter tight it — bij Twin Motorcycles Buell Support forever.
ready to go back on — bij Twin Motorcycles Buell Support forever.
she needs to go in there and teeth need to line up — bij Twin Motorcycles Buell Support forever.
to make this easy i take out the ignition cover — bijTwin Motorcycles Buell Support forever.
so i can turn the engine over — bij Twin Motorcycles Buell Support forever.
one hand behind the starter — bij Twin Motorcycles Buell Support forever.
small turn off the engine and little push the starter motor slides in with ease — bij Twin Motorcycles Buell Support forever.
starter motor mounted and fixed the feed cable, coolers can go back in place — bij Twin Motorcycles Buell Support forever.
and oil cooler back on — bij Twin Motorcycles Buell Support forever.
note i did not remove the protective screen on the oil cooler — bij Twin Motorcycles Buell Support forever.
right side on — bij Twin Motorcycles Buell Support forever..
coolant tank not tight yet the splash guard needs to go on first — bij Twin Motorcycles Buell Support forever.
cooler protection on — bij Twin Motorcycles Buell Support forever.
fan shrouds on — bij Twin Motorcycles Buell Support forever.
and air guides on — bij Twin Motorcycles Buell Support forever.
fairing mounting — bij Twin Motorcycles Buell Support forever.
repairing the indicator terminal we pulled of — bijTwin Motorcycles Buell Support forever.
and belly pan mounted — bij Twin Motorcycles Buell Support forever.
they look very nice,,, but mechanic friendly they are not... every 4e screw you take is a different size — bij Twin Motorcycles Buell Support forever..
tail cover on , carefull not to break it .. flimsy plastic— bij Twin Motorcycles Buell Support forever.
passenger seat strap on — bij Twin Motorcycles Buell Support forever.
and pillion seat back on — bij Twin Motorcycles Buell Support forever.
contact.. and starting again — bij Twin Motorcycles Buell Support forever.
nice onboard diagnostics — bij Twin Motorcycles Buell Support forever.
on with the Xb12r rear brake fluid was also a crime— bij Twin Motorcycles Buell Support forever.
this is how brake fluid should look — bij Twin Motorcycles Buell Support forever.
talked to the customer and desiced to repair the front plug thread.. as it felt not really good tighening and the ratteled out threads did not give a strong feeling— bij Twin Motorcycles Buell Support forever.
checking where the piston is also to check room enough for the cutting tool — bij Twin Motorcycles Buell Support forever.
.
dropped the engine a litle to have better acces and cut the hole straight — bij Twin Motorcycles Buell Support forever.
before you start cutting tick grease added to the tap.. this picks up allot of debris — bij Twin Motorcycles Buell Support forever.
nice new hole , oversize for the insert — bij Twin Motorcycles Buell Support forever..
with compressed air blow out the last debris — bijTwin Motorcycles Buell Support forever.
i do a little red loctite on the insert to hold this inplace at first , normaly the sooth from combustion would fix this over time — bij Twin Motorcycles Buell Support forever.

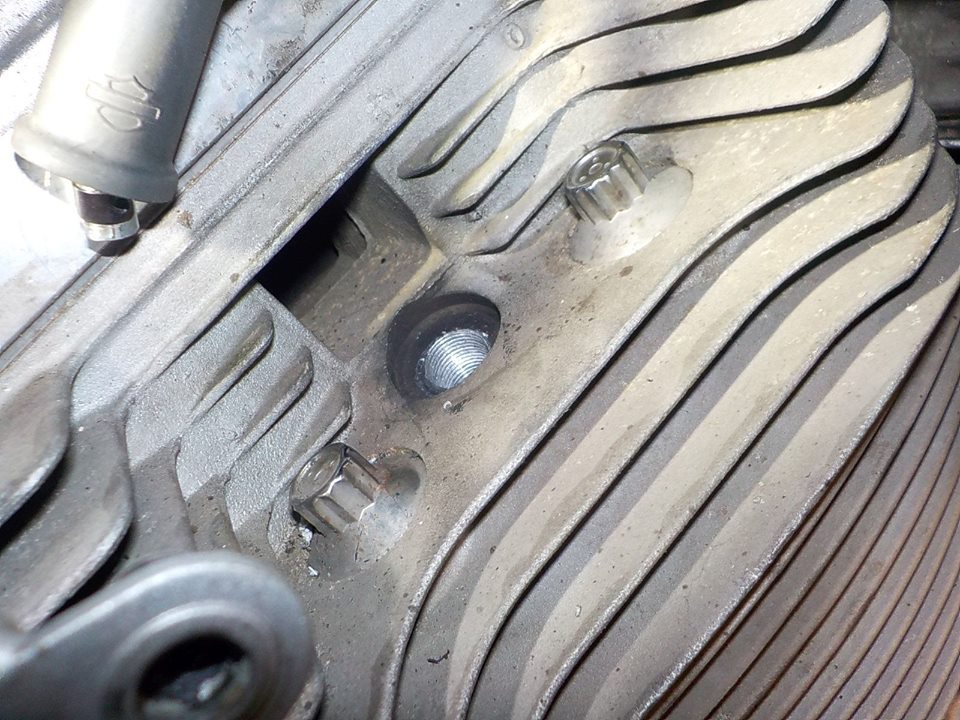

plug in , check the insert is mounted correcly — bijTwin Motorcycles Buell Support forever.
engine back up and mounting back the tie rod and airbox base — bij Twin Motorcycles Buell Support forever.
make it smootch... running very nice again for a 81000 km bike :-) test ride time — bij Twin Motorcycles Buell Support forever.
XR1200X breather hose came in. lets make this happen before easter — bij Twin Motorcycles Buell Support forever.

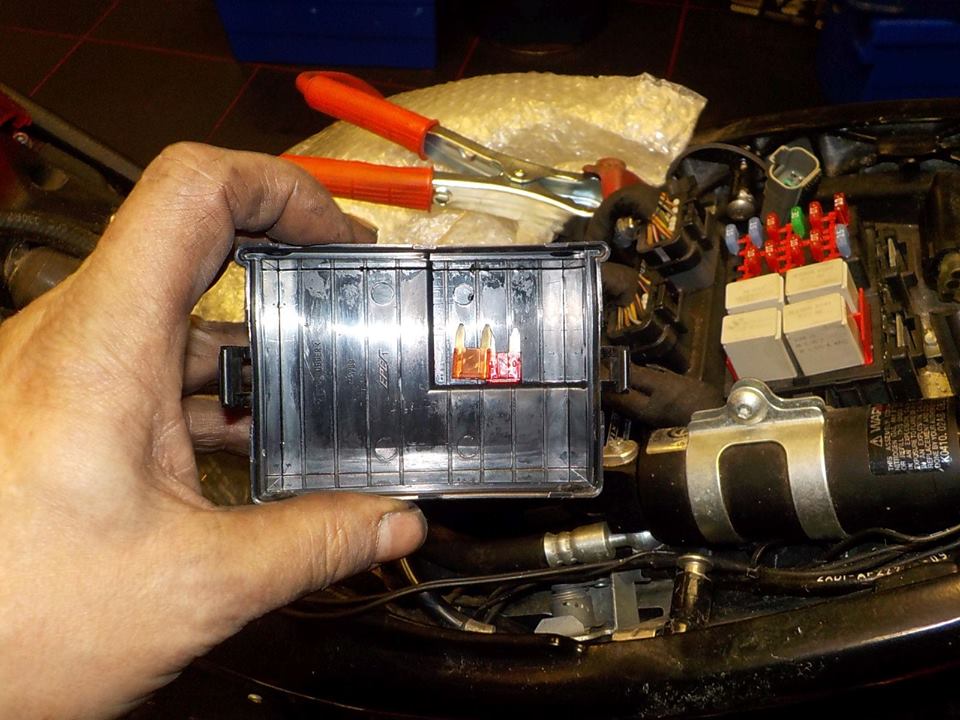

small side step.. xb12SX... needed a "fuel mapping "because she runs bad.. over time... ok check first.. battery flat, ignition switch bad.. fuel pump fuse keeps popping — bij Twin Motorcycles Buell Support forever.
the bike is in a sorry state.. only 8000 km... very hard km.. and let outside — bij Twin Motorcycles Buell Support forever.
ground wire is loose in the terminal — bij Twin Motorcycles Buell Support forever.
and about everything i see is corroded — bij Twin Motorcycles Buell Support forever.
coating is of the engine... pfff this is no easy "fuel map"fix.. first fix the bike , than see if need of a fuel mapping — bij Twin Motorcycles Buell Support forever.
HPA airbox new hoses and glued some uly tape back on the bottom — bij Twin Motorcycles Buell Support forever.
airbox back on — bij Twin Motorcycles Buell Support forever.
and fuel tank mounted — bij Twin Motorcycles Buell Support forever.
breather and ground wire to the fuel cap — bij Twin Motorcycles Buell Support forever.
lining up the cover — bij Twin Motorcycles Buell Support forever.
changing the brake fluid — bij Twin Motorcycles Buell Support forever.
and let here warm up or test ride — bij Twin Motorcycles Buell Support forever.
checking oil level.. and test ride :-) — bij Twin Motorcycles Buell Support forever.
