22-3-2018 XR1200 battery and service X1 rear shock

3-7-2018 - 22-3-2018 XR1200X battery and service Buell X1 rear shock mounting



Xr1200x did not want to run on 2 cylinders after winterstop.. tried the plugs already but that did not work.. bike was left to fix and do a service

at first we going to check the injectors . so cover of

and fuel tank loose

hpa box loose. the front breather hose is leaking

these stock hoses are very fragile.. and dry out very soon above the cylinder head

again spark testing .. yup sparking on bought

take the fuel line lock plate from the injector hosing

so you can pull theme off

rear one looks nasty

will put a zip tie on it to keep theme apart.. they are the same front and rear

testing.. resistance is off for the rear one

i think this helped.. as spray pattern is ok now

and volume is good for bought

cleaned theme any way in the ultrasone

injectors in the manifolt and rail on

lock bracket on , note the fuel line needs to point backwards

connectors on

eeeh ok battery is about empty from all the trying to start, need to charge

in the mean while will start with booster

thast did the trick running on all cylinders

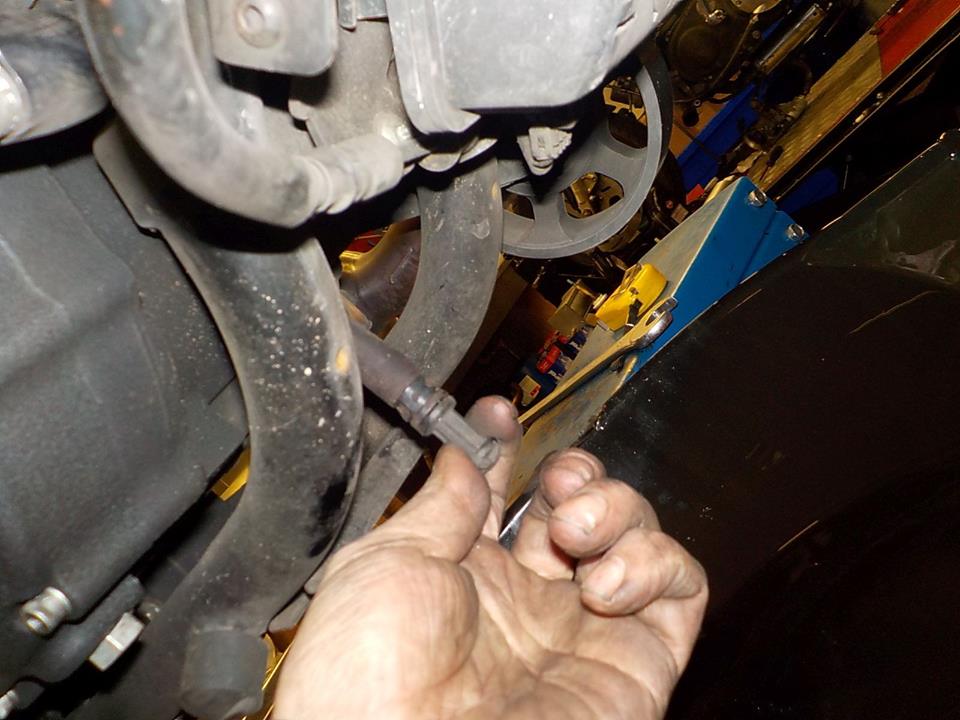

ater heating up , oil drain plug out to drain the oil

i take the shifter out the way to remove the clutch cover

cable adjuster loosened

and draining teh gearbox oil

the lock plate came of easy and adjustment seams off ?

with the high perforamce clutch in it needs thinner oil

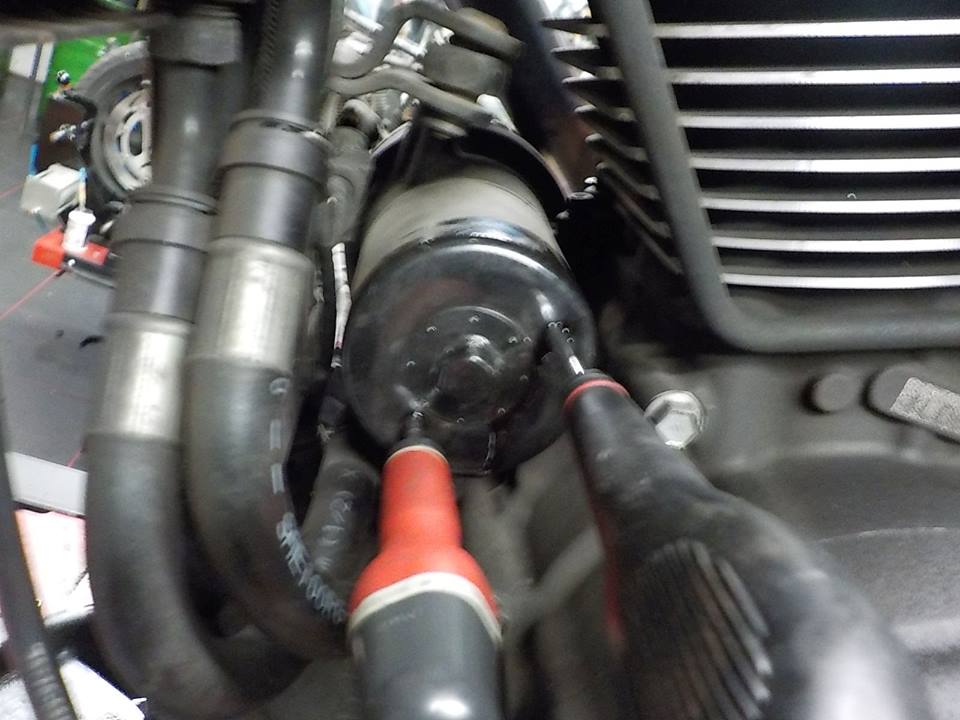

oil filter .. these are cursed.. i always round off the nut

need to do it the hack way.. 2 screw drivers in

and a tyre iron

new filter on, hand tight

checking the primairy chain

front fairing of for head light change

loosen en remove the clamp ring

and you can take out the original unit

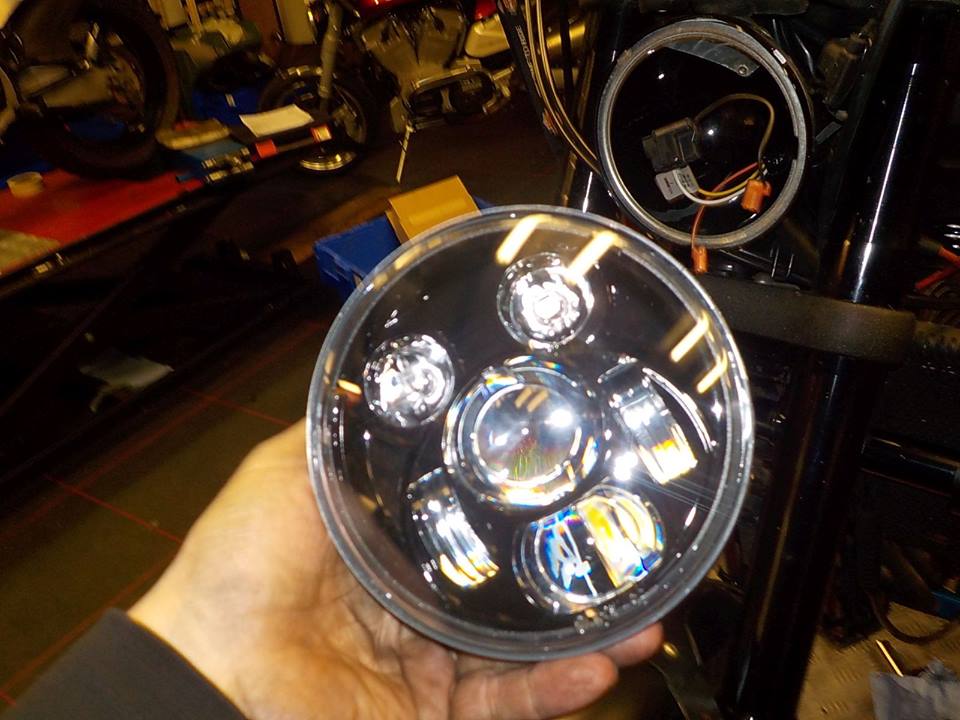

a led unit come in

looks good

fairing back on

bracket broke on the exhaust need to fix this

removing the link pipe to grind off the left over

going to remake this with a T-band clamp

with the new bracket on the color will become the same

markings on the muffler , reason the bracket broke ?

any way.. back on stronger

X1 rear shock , needed checking up

special block off wood to lift teh weight off the bike

schock back on

turn the pull rods diagonal to clear the case, chin spoiler and muffler

checking the settings

adjusting to weight

bike is ready to go back to the owner , very nice X1

Xr1200 shop mule..

had a starting issue

looks ok.. but is not.. tested this 5 day ago ok

alamr bike.. contact on

and pull the main fuse, so the alarm douse not go off

holding bracket loose

always bad to reach , grond pole

battery slided back in , bracket on and positive on

main fuse back in

testing.. works.. and charges
