9-3-2018 XB 88CI Dyno, XB12S troubles XB9R engine

13-6-2018 - 9-3-2018 Buell XB12 88CI on the dyno, Buell XB12S trouble shooting last test, Buell XB9R engine rebuild part 2

we are tuning the XB88 on the dyno.. but we the TQ ia low ... lets try something — bij Twin Motorcycles Buell Support forever.

as i noticed the intake stack.. was modified.. as there is a story going on on the interweb.. the stack sucks vacuum to the cover.. and this causes stutter — bij Twin Motorcycles Buell Support forever.

but i know some serieus Buell computing power went in the design off th stack.. we tried to improve it , but Buell engineers got it pritty much spot on, with the stock cams, valves exhaust — bij Twin Motorcycles Buell Support forever.

not to such to the cover.. you need to mount it correct push down on the maniold and put the clip on good — bij Twin Motorcycles Buell Support forever.

and new model airbox .. she will pick up some power— bij Twin Motorcycles Buell Support forever.

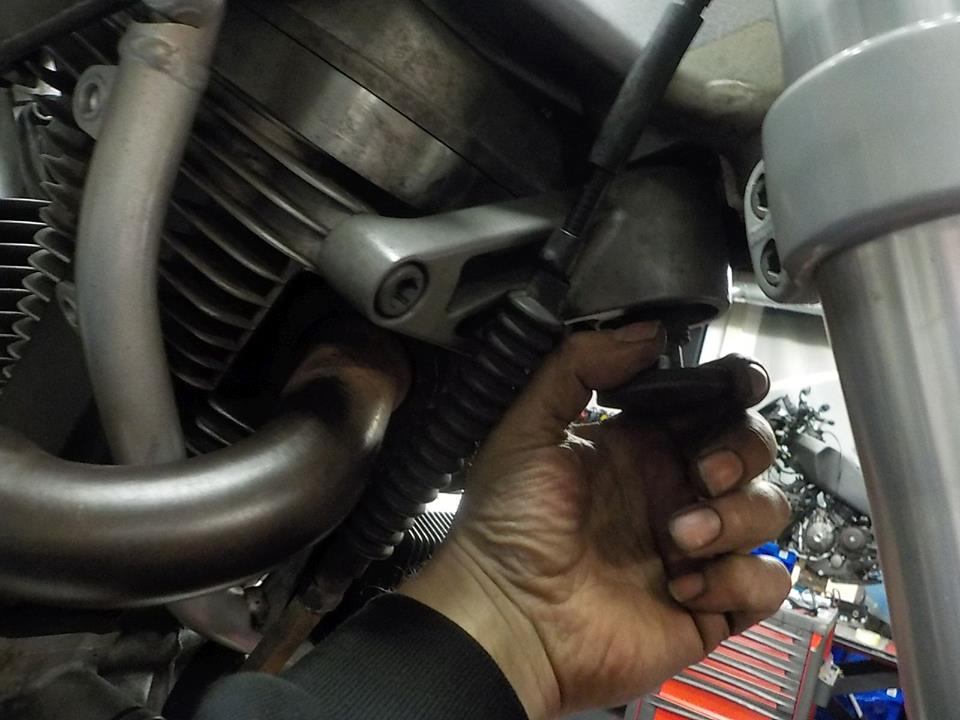

trouble shooting done.. now mount everything back and test in the real world... speed sensor back on , was removed as this could give a error back to the ecm gound — bij Twin Motorcycles Buell Support forever.

cover back on — bij Twin Motorcycles Buell Support forever.

and mounting the airbox — bij Twin Motorcycles Buell Support forever.

cover back on.. painted translucent.. still cracks to easy — bij Twin Motorcycles Buell Support forever.

heating up the bike — bij Twin Motorcycles Buell Support forever.

while monitoring.. she is good.. normal i could not get here over 180 deg C heat temp and she started to cut out the front.. now ( needed to pull the fan fuse ) 210 deg.. and still running nice.. :-) happy — bij Twin Motorcycles Buell Support forever.

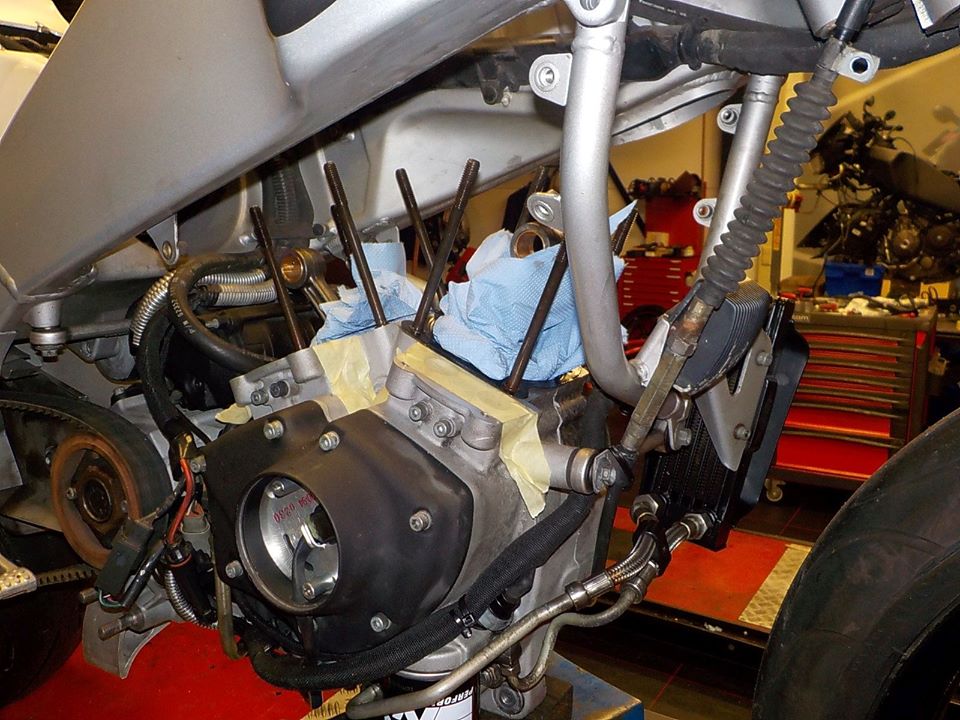

cylinders are back rom cleaning the bores.. — bij Twin Motorcycles Buell Support forever.

looking allot better now — bij Twin Motorcycles Buell Support forever.

need to clean , i think they done it at the machine shop.. but as this will be on my watch.. clean it again— bij Twin Motorcycles Buell Support forever.

rings removed — bij Twin Motorcycles Buell Support forever.

and in hot soapy watter to clean and degrease the parts — bij Twin Motorcycles Buell Support forever.

dry . and with a clean rag through the bore, needs to stay clean. light coat of break in oil and pistons in — bij Twin Motorcycles Buell Support forever.

note.. XB9 wiseco piston pins are smaller than XB12 wiseco piston pins.. ? because piston weight ? as XB9 pistons have a roof ? — bij Twin Motorcycles Buell Support forever.

with some rags in the bore.. helps to put the piston pin clips in.. if you drop theme — bij Twin Motorcycles Buell Support forever.

nice pistons — bij Twin Motorcycles Buell Support forever.

for now put some hold down nut on the cylinder so it will not bang around moving the crank , you can als use the head bolts with some 1/2 inch drive sockets— bij Twin Motorcycles Buell Support forever.

number 2 on.. check the piston orientation last time— bij Twin Motorcycles Buell Support forever.

and the pushrod covers go on — bij Twin Motorcycles Buell Support forever.



adding oil on the lifters — bij Twin Motorcycles Buell Support forever.





andt rear head in first , over the pushrod cover first— bij Twin Motorcycles Buell Support forever.





front head on — bij Twin Motorcycles Buell Support forever.



oiling the head bolts — bij Twin Motorcycles Buell Support forever.

and tighen to specification — bij Twin Motorcycles Buell Support forever.

the longer pushrod is exhaust.. if the markings are gone — bij Twin Motorcycles Buell Support forever.

rocker box mounted.. first all the bolt in — bij Twin Motorcycles Buell Support forever.

and than tighten — bij Twin Motorcycles Buell Support forever.

and top cover on — bij Twin Motorcycles Buell Support forever.

i want to check the injectors. — bij Twin Motorcycles Buell Support forever.

the can be stuck after so many years — bij Twin Motorcycles Buell Support forever.

spray pattern is perfect, and they do not leak under pressure .. — bij Twin Motorcycles Buell Support forever.

new -orings.. — bij Twin Motorcycles Buell Support forever.

and putting the manifold to getter — bij Twin Motorcycles Buell Support forever.

now first the coil bracket and top bracket on to mount the intake — bij Twin Motorcycles Buell Support forever.

headers on — bij Twin Motorcycles Buell Support forever.





and engine rotated up — bij Twin Motorcycles Buell Support forever.

nicely coated exhaust back on — bij Twin Motorcycles Buell Support forever.

rear straps the nice way ( bolt not visible ) — bij Twin Motorcycles Buell Support forever.

first model front mount — bij Twin Motorcycles Buell Support forever.

do not over tighten the front strap.. it will break on you — bij Twin Motorcycles Buell Support forever.

belt tension off by turning out the reasr axle 15 turns— bij Twin Motorcycles Buell Support forever.

so the spring loaded tensioner can be mounted — bijTwin Motorcycles Buell Support forever.

bolt bin gets empty :-) — bij Twin Motorcycles Buell Support forever.

hooking up the connectors — bij Twin Motorcycles Buell Support forever.

to morrow again start up :-) — bij Twin Motorcycles Buell Support forever.
