7-2-2018 XB12S service, X1 suspension problems

29-4-2018 - What did we do today: 7-2-2018 Buell XB12S service, Buell X1 suspension oil problems.

Buell Xb12S sleeping with us for the winter, i will give here a little check up.. as the days are getting longer.

neutral light douse not work

you can override this pulling the clutch to start

removing the covers for inspection

rear caliper off to get the wheel out.. bolts turning difficult, the alumium in the holes is a littl crushed

ream with a dril bit, and the bolt have enough room, use the bolts with never seas

ols style sidestand pin.. feeling loose

rear wheel check .. loose it

and removing the oil filter

side stand pivot loose

mnnn.. ok was repaired, no problem, but i could loosen the bolt easy,. back in with loctite

wheel bearings are perect

belt wil need to be watched.. some wear noticeble , noting realy cracked.. but need to keep a eye on this

belt removed from the front pulley.. checking the neutral sensor.. mnnn no worky at all

new oil filter on

and new neutral sensor on

that is better

neutral light working.. and bike will start with out having to pull the clutch lever

rear wheel back in

and belt guard on. use neverseas on these screws into the swingarm , tiny allen heads. the slip very fast if the screws seaz

oil in the swingarm

and moving to the front. fender off

the right side is missing the nylon washers... hence the fender is loose and ratteling on the right side

brake pads are wearing thin.. will replace these as they will not reach the next service

small rust spot on the outer leg.. little cleaning and protecting with some grease

wheel bearings are ok

new brake pads in

the front caliper mounting bolts do also jam in the fork

the front caliper mounting bolts do also jam in the fork

front axle to tq

before we tighen the pinch bolts.. we need to set the forks by pushing down the front end a few times

new pads.. pump to pressure so you do not grab nothing when you try to brake the first time

nylon washers to mount the fender good

loctite on the chin spoiler bolts

changing the brake fluid

and making the lever nice, with some fresh grease on the sliding parts

letting here warm up

and checking oil level

Very nice X1 from Germany with some suspention troubles

nice bike low km's

front fork feels rock solid , leaking right side

and left side is also leaking

removing the front fender bolts

brake pad pin lock plate out

and loosening the front axle nut

pinch botls loose

there are many ways to remove the brake caliper , but always difficult to have enough clearance.. with the torx disk bolts.. easy to loosen these

with the disk bolts loose you can take off the caliper with pads with our damaging the wheel — bij Twin Motorcycles Buell Support forever.

been leaking for some time.. caliper needs to be cleaned to

disk taken of as this also needs cleaning from the oil— bij Twin Motorcycles Buell Support forever.

with the head light on.. 1 leg at the time — bij Twin Motorcycles Buell Support forever.

and use a allen key to loosen the top one, not to dammage the flyscreen — bij Twin Motorcycles Buell Support forever.

and loosen the flyscreen / headlight bracket to get the leg out — bij Twin Motorcycles Buell Support forever.

looking at the marks it has been loose already — bij Twin Motorcycles Buell Support forever.

still protection is better , use some isolation tape so the socket fit snug — bij Twin Motorcycles Buell Support forever.

now to first clean the legs — bij Twin Motorcycles Buell Support forever.

pitty of the scratching on the leg — bij Twin Motorcycles Buell Support forever.

first look .. looks like way to much oil in — bij Twin Motorcycles Buell Support forever.

remove the spring tension holder — bij Twin Motorcycles Buell Support forever.

and take the preload tube out — bij Twin Motorcycles Buell Support forever.

need to check with out the spring.. but this is to much oil inside.. no wonder the seals popped and the front felt rock solid — bij Twin Motorcycles Buell Support forever.

dust seal and , seal clip loose — bij Twin Motorcycles Buell Support forever.

and take the leg apart.. oil is also thick — bij Twin Motorcycles Buell Support forever.

to mount the new seals.. protect theme from the sharp edges with some isolation tape — bij Twin Motorcycles Buell Support forever.

and guidebushings on — bij Twin Motorcycles Buell Support forever.

knocking the oil seal in place — bij Twin Motorcycles Buell Support forever.

filled with oil to 110 mm air chamber .. — bij Twin Motorcycles Buell Support forever.

indexing the renbound markings.. just to make it nice and so they whole travel is availeble — bij Twin Motorcycles Buell Support forever.

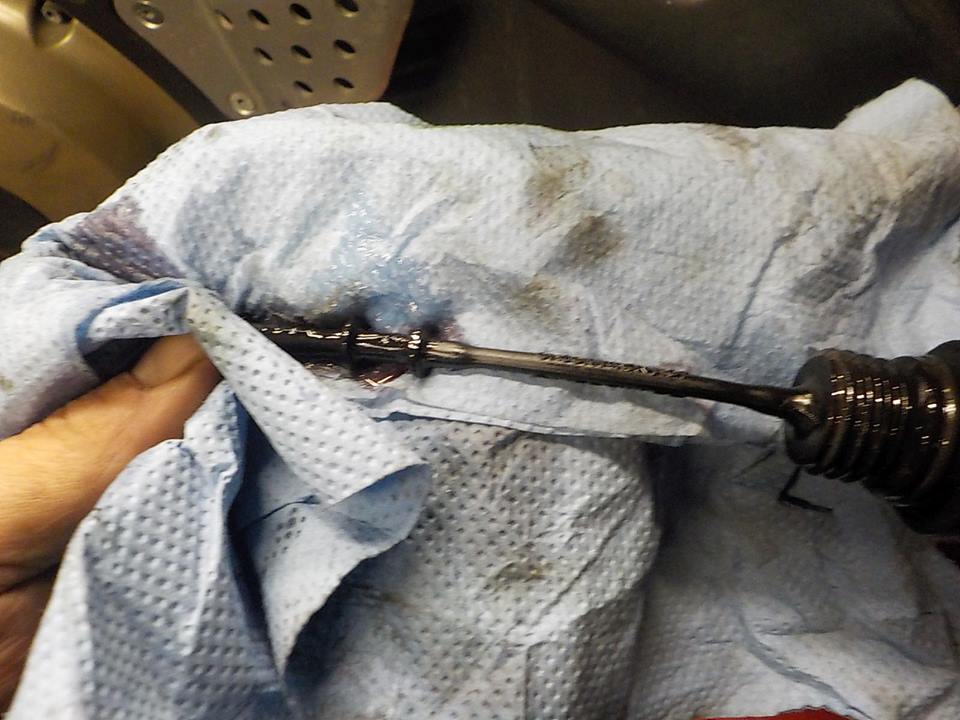

damping needle in place and disk on the proload tube — bij Twin Motorcycles Buell Support forever.

one down , one to go — bij Twin Motorcycles Buell Support forever.

nasty.. needs cleaning before i take it apart — bij Twin Motorcycles Buell Support forever.

even more oil ? i wonder who did this ? — bij Twin Motorcycles Buell Support forever.

again cleaning — bij Twin Motorcycles Buell Support forever.

new oil seal .. this end is down — bij Twin Motorcycles Buell Support forever.

bleeding the damper tube and mounting the cap — bij Twin Motorcycles Buell Support forever.

disk cleaned — bij Twin Motorcycles Buell Support forever.

caliper mounting scratches ? — bij Twin Motorcycles Buell Support forever.

the pads are saoked in oil.. i wil mount new ones — bij Twin Motorcycles Buell Support forever.

cleaning — bij Twin Motorcycles Buell Support forever.

little cleaning and this looks silver again — bij Twin Motorcycles Buell Support forever.

pistons pushed back and new pads in — bij Twin Motorcycles Buell Support forever.

caliper on the disk . holding on with 1 bolt — bij Twin Motorcycles Buell Support forever.

axle in and axle nut with a drop loctite — bij Twin Motorcycles Buell Support forever.

caliper bolts with a drop loctite to — bij Twin Motorcycles Buell Support forever.

do not overtighten these.. been repairing the treads on these calipers many times — bij Twin Motorcycles Buell Support forever.

disk bolts back on — bij Twin Motorcycles Buell Support forever.

and pumping the lever to pressure — bij Twin Motorcycles Buell Support forever.

pin and locl disk in — bij Twin Motorcycles Buell Support forever.

front fender back on.. using the rubber spacers to aline the fender — bij Twin Motorcycles Buell Support forever.

rear shock feels also not nice.. belt tension is to high— bij Twin Motorcycles Buell Support forever.

first setting the belt tension — bij Twin Motorcycles Buell Support forever.

better like this — bij Twin Motorcycles Buell Support forever.

check let and right so the wheel is straight in — bij Twin Motorcycles Buell Support forever.

I will let the rear shock be checked just to be sure all is oke. — bij Twin Motorcycles Buell Support forever.

taking notes before i loose the shock .. — bij Twin Motorcycles Buell Support forever.
