10-1-2018 Uly in STT trim, and fixing problems

20-3-2018 - What did we do today: 10-1-2018 Service Buell Ulysses in STT trim, and fixing problems

as buell vibrate.. loose stuff usualy douse not help reliabilaty ,as the customer ( just bought this bike ) already stranded ones .. allot off error codes.. strange ones to combine — bij Twin Motorcycles Buell Support forever.

it has some problems, like wire harness and space under the seat , in this case everything stacked loose — bij Twin Motorcycles Buell Support forever.

ecm the mounting tabs trimed off , i see some rubbing already in the harness — bij Twin Motorcycles Buell Support forever.

remote adjuster loose rattling about — bij Twin Motorcycles Buell Support forever.

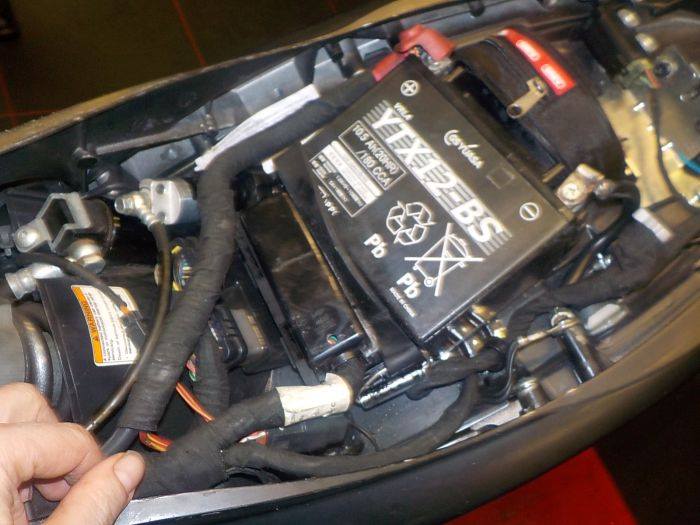

fuse box crammed in there, and battery about loose— bij Twin Motorcycles Buell Support forever.

as buell vibrate.. loose stuff usualy douse not help reliabilaty ,as the customer ( just bought this bike ) already stranded ones .. allot off error codes.. strange ones to combine — bij Twin Motorcycles Buell Support forever.

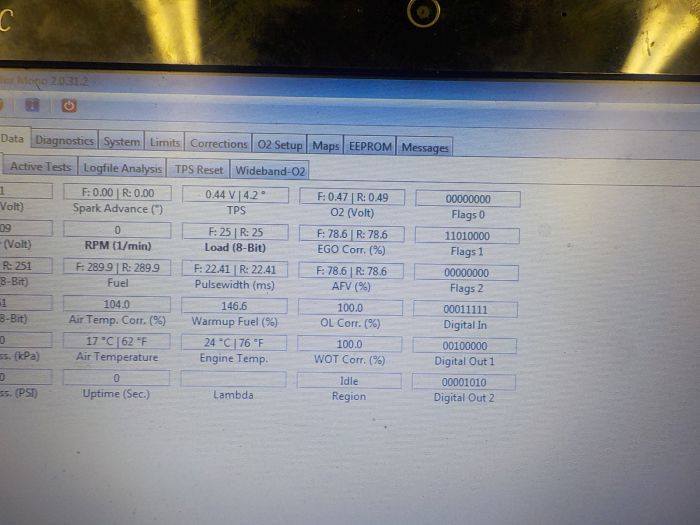

ego off the scale , and bike cutting out.. uneven idle.. intake seal leak test was ok.. no leaking — bij Twin Motorcycles Buell Support forever.

if i pick up the ecm while running the engine cuts out— bij Twin Motorcycles Buell Support forever.

ok problem 1, connectors loose , and lock if broken of the ecm — bij Twin Motorcycles Buell Support forever.

black plug also loose ... ok , fastened the plug for now, and try again — bij Twin Motorcycles Buell Support forever.

mnnn neutral light out, and on when i twist the ecm..— bij Twin Motorcycles Buell Support forever.

the exhaust valve motor douse work.. despite the error code — bij Twin Motorcycles Buell Support forever.

but engine is hot now for oil change.. the drain plug has been repaired for a oversze one already — bij Twin Motorcycles Buell Support forever.

draining, notice the extreme angles on the shifter.. we can do better than that — bij Twin Motorcycles Buell Support forever.

the odd screws — bij Twin Motorcycles Buell Support forever.

love.. will put some originals in — bij Twin Motorcycles Buell Support forever.

loosening the rear wheel axle.. needed the breaker bar — bij Twin Motorcycles Buell Support forever.

with neutral light problem, checking the switch as it is common this fails , this is 0.8 Ohm.. perfect — bij Twin Motorcycles Buell Support forever.

boot of the clutch cable has been burning — bij Twin Motorcycles Buell Support forever.

this way, the boot will work as a funnel for watter into the gearbox.. i will put a new one on — bij Twin Motorcycles Buell Support forever.

and route the side stand switch wire inside the clutch cable wire — bij Twin Motorcycles Buell Support forever.

the gearbox drain plug was wrapped in telfon tape..please do not use this , that is for NPT threads only.. not for straight threads — bij Twin Motorcycles Buell Support forever.

new boot on — bij Twin Motorcycles Buell Support forever.

adjusting the shift lever , so the angles make it lighter to shift — bij Twin Motorcycles Buell Support forever.

engine oil back in the swing arm — bij Twin Motorcycles Buell Support forever.

and new oil filter on — bij Twin Motorcycles Buell Support forever.

checking the belt on wear — bij Twin Motorcycles Buell Support forever.

little spot.. this will do for comming season — bij Twin Motorcycles Buell Support forever.

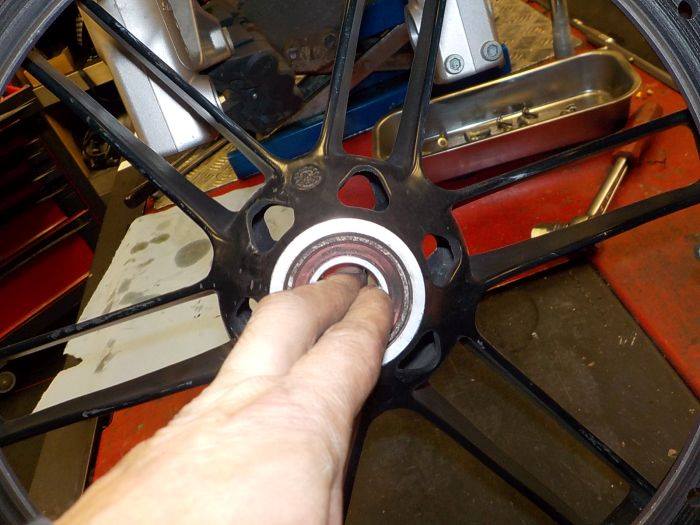

wheel bearing check.. no bueno — bij Twin Motorcycles Buell Support forever.

some fresh bearings in.. will turn much better — bij Twin Motorcycles Buell Support forever.

and cleaned and kubed the rear axle — bij Twin Motorcycles Buell Support forever.

do not forget the pinch bolt — bij Twin Motorcycles Buell Support forever.

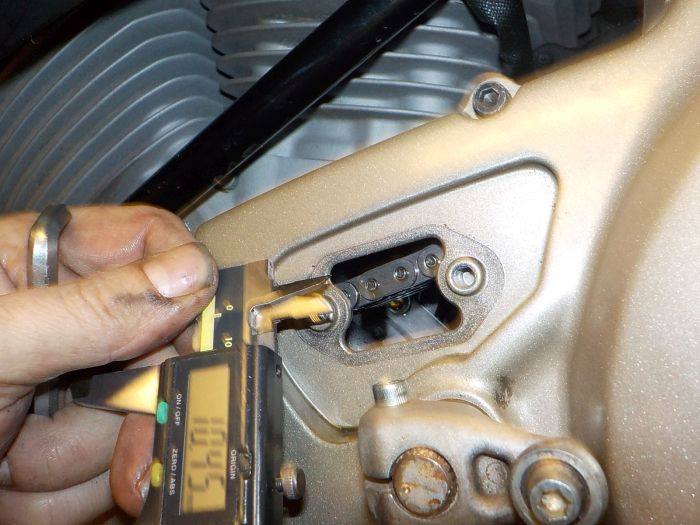

and with the rear wheel still in the air.. shift to 5e gear and bump the engine around to check the primairy chain tension on at least 3 spots — bij Twin Motorcycles Buell Support forever.

front plug change from below — bij Twin Motorcycles Buell Support forever.

it can do.. — bij Twin Motorcycles Buell Support forever.

checking and setting the gap on the new plug — bij Twin Motorcycles Buell Support forever.

customer asked the remove the long pivots and put shorts ones back — bij Twin Motorcycles Buell Support forever.

no problem 12 mm spanner — bij Twin Motorcycles Buell Support forever.

and the short ones are 10 mm , — bij Twin Motorcycles Buell Support forever.

clutch cable adjusted and bracket mounted so the cable has max space to the header — bij Twin Motorcycles Buell Support forever.

brake lever pivot , is going to be changed to — bij Twin Motorcycles Buell Support forever.

and i will clean re relube this — bij Twin Motorcycles Buell Support forever.

works so much nice with some cleaning and fresh grease — bij Twin Motorcycles Buell Support forever.

mnn this should have been replaced 7000 km ago... i will do it now — bij Twin Motorcycles Buell Support forever.

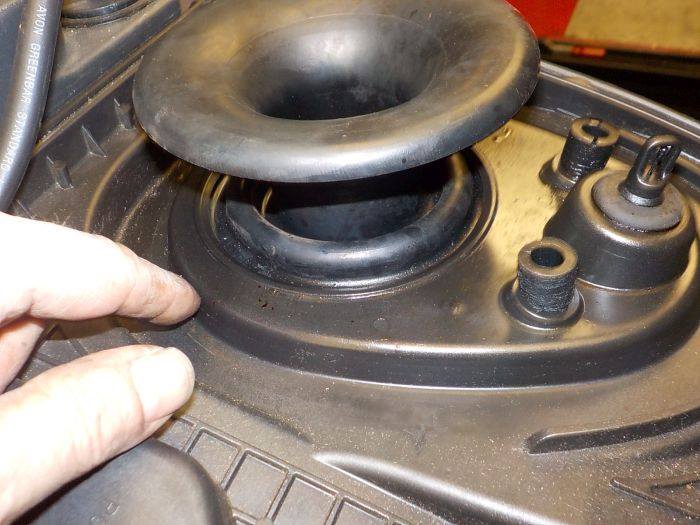

the velocity stack is also not mounted correctly — bijTwin Motorcycles Buell Support forever.

with the baseplate off we can change the rear plug , checking the plug cables — bij Twin Motorcycles Buell Support forever.

new plug rear.. need extentions and wobble joint — bij Twin Motorcycles Buell Support forever.

plug cable back on. turn the front one in, so it will not rub against the wire harness — bij Twin Motorcycles Buell Support forever.

velocity stack proper mounted — bij Twin Motorcycles Buell Support forever.

and k&n airfilter in — bij Twin Motorcycles Buell Support forever.

broken ground behind the head lights.. look for it ! — bij Twin Motorcycles Buell Support forever.

bike wapped around for front end service and check.. lock washers are not the ideal mounting washers for plastic parts — bij Twin Motorcycles Buell Support forever.

mnn.. looking at the wear pattern.. i think the brake will jutter some — bij Twin Motorcycles Buell Support forever.

will start with the front wheel bearings — bij Twin Motorcycles Buell Support forever.
