18-11-2017 Buell XB9R engine disassembly

11-9-2019 - What did we do today: 18-11-2017 Buell XB9R engine disassembly and inspection

swing arm fixing to the frame to park the bike for now — bij Twin Motorcycles Buell Support forever.





off the lift — bij Twin Motorcycles Buell Support forever.





so engine... strip — bij Twin Motorcycles Buell Support forever.





intake manifold off — bij Twin Motorcycles Buell Support forever.





deffinatly bad gaskets — bij Twin Motorcycles Buell Support forever.





a pair plug wires would not do harm — bij Twin Motorcycles Buell Support forever.





coil + bracket of — bij Twin Motorcycles Buell Support forever.





starter motor off — bij Twin Motorcycles Buell Support forever.





starter motor gasket was leaking — bij Twin Motorcycles Buell Support forever.





explains some off the oil — bij Twin Motorcycles Buell Support forever.

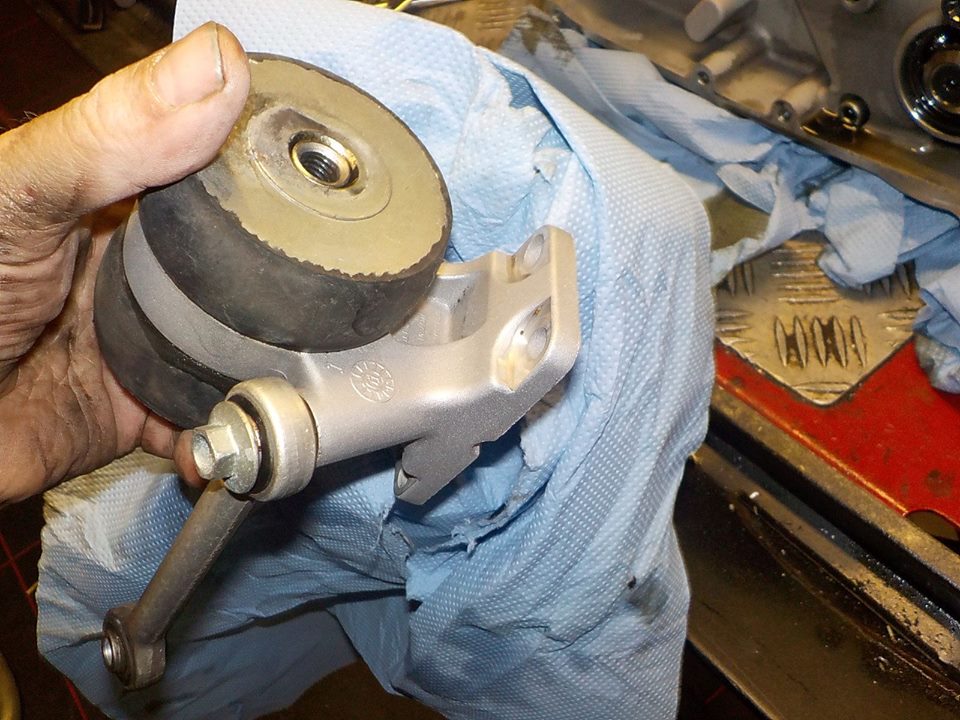

rear engine mount loose the bolts , i use a cut 1/4 allen — bij Twin Motorcycles Buell Support forever.





and turn theme out with the ball end — bij Twin Motorcycles Buell Support forever.





cleaned and in the box — bij Twin Motorcycles Buell Support forever.





top covers off — bij Twin Motorcycles Buell Support forever.





rocker box loose — bij Twin Motorcycles Buell Support forever.





looks goos — bij Twin Motorcycles Buell Support forever.





pushrods out , check if they are not blocked — bij Twin Motorcycles Buell Support forever.





checking the rocker arms , are ok — bij Twin Motorcycles Buell Support forever.





oil jet in the rocker arm to spray oil on the valve spring ass. — bij Twin Motorcycles Buell Support forever.





little mount lube — bij Twin Motorcycles Buell Support forever.





cleaned and ready to be mounted... check the notch in the shafts.. it can dammage the rocker bolts turning them in — bij Twin Motorcycles Buell Support forever.





front one, has suffered more — bij Twin Motorcycles Buell Support forever.





inspected and cleaned — bij Twin Motorcycles Buell Support forever.





head bolts loose and pulling off the heads — bij Twin Motorcycles Buell Support forever.





first look down the barrel , some score marks.. — bij Twin Motorcycles Buell Support forever.





other cylinder .. the markings you can feel .. this puppy needs a bore / hone oversized pistons — bij Twin Motorcycles Buell Support forever.





heads look nice — bij Twin Motorcycles Buell Support forever.





pushrod tubes off — bij Twin Motorcycles Buell Support forever.





mnnn also leak traces — bij Twin Motorcycles Buell Support forever.





cam cover , drilling of the timing plate — bij Twin Motorcycles Buell Support forever.





timing sensor out — bij Twin Motorcycles Buell Support forever.





remove the plug to remove the sensor — bij Twin Motorcycles Buell Support forever.





and the trigger wheel out — bij Twin Motorcycles Buell Support forever.





cover removed — bij Twin Motorcycles Buell Support forever.





cams look ok — bij Twin Motorcycles Buell Support forever.





pinion gear nut loose — bij Twin Motorcycles Buell Support forever.





oil pump drive gear, i see some wear — bij Twin Motorcycles Buell Support forever.





but stil will advise to mount a bronze one :-) — bij Twin Motorcycles Buell Support forever.





checking the oil pump on dammage .. small markings .. nothing treally hurtful — bij Twin Motorcycles Buell Support forever.





pump housing is good — bij Twin Motorcycles Buell Support forever.





clean and mount it — bij Twin Motorcycles Buell Support forever.





back over back on — bij Twin Motorcycles Buell Support forever.





when mounting and knowing the angle off the oil line.. i need to fix the return nipple in the pump as it is loose , so i turn it up to remember when mounting— bij Twin Motorcycles Buell Support forever.





tappet pins out lifters look good — bij Twin Motorcycles Buell Support forever.





making ready to spilt the cases — bij Twin Motorcycles Buell Support forever.





open and the left over oil drains out — bij Twin Motorcycles Buell Support forever.





main gear small sign of corrosion .. will fit this — bij Twin Motorcycles Buell Support forever.





left sprocket bearing looks ok — bij Twin Motorcycles Buell Support forever.

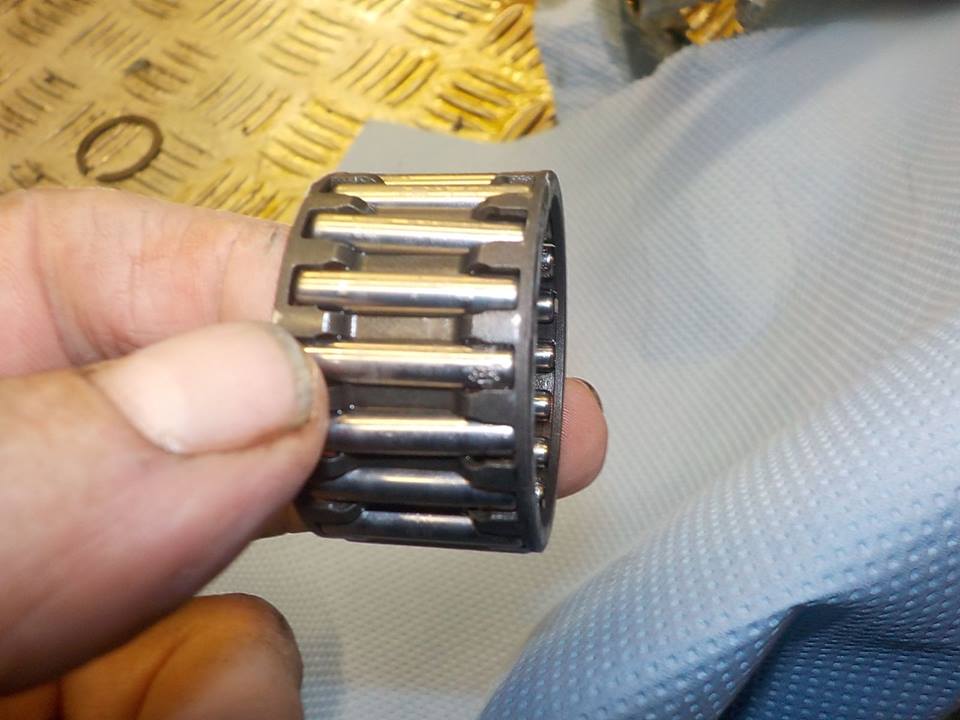

but this bearing i was after ... pinion side you see the hardeded surface is gone on half the race — bij Twin Motorcycles Buell Support forever.





the bearings is starting to tell some signs — bij Twin Motorcycles Buell Support forever.





yep.. glad we cought this now.. any furter and all the insided would have needed to be replaced — bij Twin Motorcycles Buell Support forever.





shifter fork sliders knocking them out — bij Twin Motorcycles Buell Support forever.





and checking the main gear bearings , knocking the seal out — bij Twin Motorcycles Buell Support forever.





yep .. this one will also be replaced — bij Twin Motorcycles Buell Support forever.
